Custom embroidery grows steadily in apparel and promotional merchandise markets. Small and mid-size embroidery studios need flexible, reliable equipment to handle mixed orders of caps, garments and flat fabric products. An advanced embroidery machine delivers programmable stitch control and stable running speed to turn custom artwork into high-quality embroidered pieces. Business owners evaluate machine heads, working area and needle options before investment, as different order volumes call for single-head or multi-head configurations. This article breaks down two real-world project cases and shares practical planning tips for studio owners shopping for a commercial embroidery machine for sale.
Advanced Embroidery Machine Specifications:
| Parameter | YS-1201CT (Single Head) | YS-1202CT (Two Heads) | YS-1203 (Three Heads) |
| Heads | 1 | 2 | 3 |
| Needles | 9 / 12 / 15 optional | 12 | 12 (9/15 optional) |
| Working Area | 360 × 510 mm | 400 × 500 mm | 400 × 450 mm |
| Max Speed | 1,000 RPM (adjustable) | 1,000 RPM (adjustable) | Flat: 1,000 RPM; caps/garments: 800 RPM |
| Control System | Dahao A15 | Dahao A15 | Dahao A15 |
| Display | Colour LCD touch, 1280×800 | Colour LCD touch, 1280×800 | 10 inch true colour touch LCD |
| Package Size (L×W×H) | 92×88×85 cm (wooden) | 1.37×1.12×0.92 m (wooden) | 2.07×1.12×1.01 m (wooden, ~2.3 CBM) |
| Gross Weight | 210 kg | 420 kg | 650 kg |
| Voltage | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz | 110 220V |
| Spindle Motor | — | — | Servo motor |
| Rotary Hook | Standard | Standard | High quality hook |
UK Embroidery Studio Project
Client Background :
This buyer operates an embroidery studio based in the United Kingdom. The studio serves local small businesses, sports teams and independent clothing brands. It takes mixed batch orders, including embroidered baseball caps, hoodies, tote bags and flat textile patches.
Client Needs :
The studio received more bulk custom embroidery orders and struggled with their older single-head embroidery unit. The old machine ran slowly and could not process multiple identical pieces at once. The team needed to cut production time for repeat orders while keeping the flexibility to handle one-off custom designs. They required a programmable embroidery machine that switches easily between cap embroidery and flat fabric work. Their workshop space was limited, so machine footprint and weight were key factors in the buying decision.
YG Matching Solution :

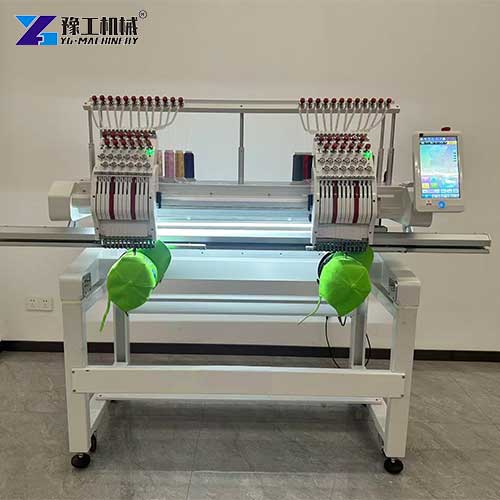

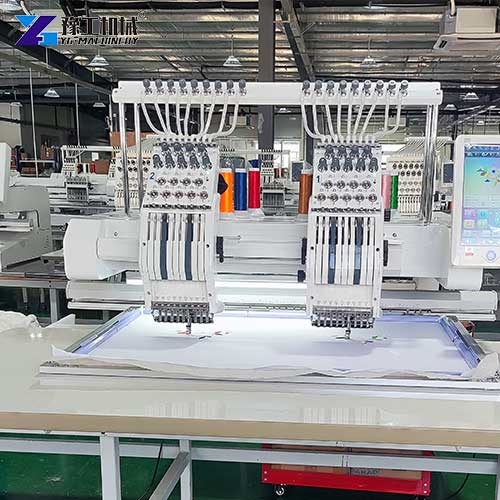

YG recommended the YS-1202CT two-head advanced embroidery machine for this UK studio. This model has a 400 × 500 mm working area and supports 12 needles, with adjustable max speed up to 1000 RPM. Powered by the Dahao A15 control system and colour LCD touch display, this programmable embroidery machine lets operators save multiple design files and quickly toggle between cap and flat embroidery tasks. Two heads allow simultaneous production of two identical embroidered items, directly lifting output for bulk teamwear orders. The wooden package, size 1.37×1.12×0.92 m and gross weight 420 kg, fits neatly inside their existing workshop layout. Installation took roughly 2 days.
Client Feedback:
“The two-head advanced embroidery machine has changed how we manage bulk orders. We used to spend hours repeating the same embroidery design one piece at a time. Now we run two garments at once, and the Dahao touch control panel is simple for our operators to learn. We can easily switch between caps and flat patches without lengthy setup work. The stitch consistency stays steady even during longer production runs.”
Australia Promotional Merchandise Workshop Project
Client Background :
This customer runs a promotional merchandise workshop in Australia. The business focuses on branded gifts, corporate uniform embroidery and custom event apparel. Orders often shift between small custom runs and larger batch production for local enterprises.
Client Needs:
The workshop wanted to expand its product range to process caps, polo shirts and flat textile materials. They looked for a multi-head embroidery machine that handles mixed material types, with adjustable speed settings for delicate fabric. The team also needed the ability to adjust needle counts based on design complexity. Operators preferred a clear touch screen interface to upload and edit embroidery patterns quickly.
YG Matching Solution:

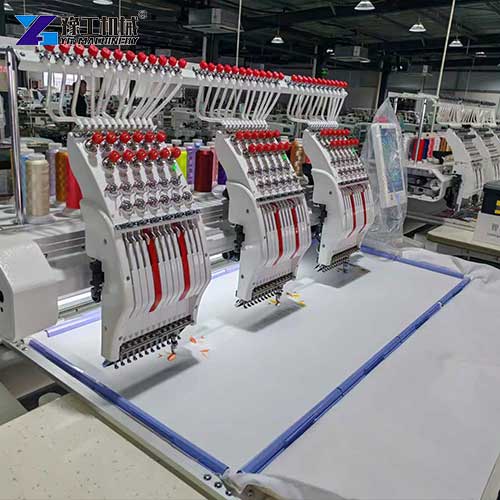

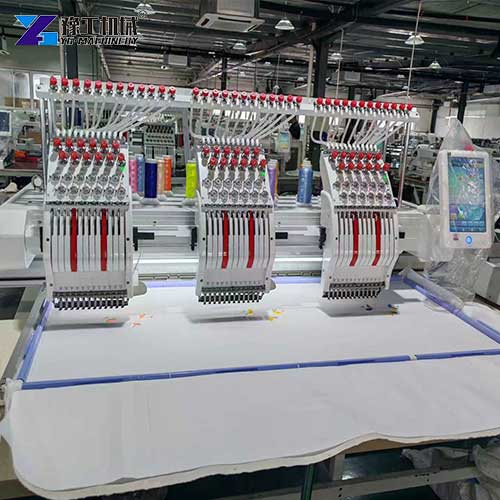

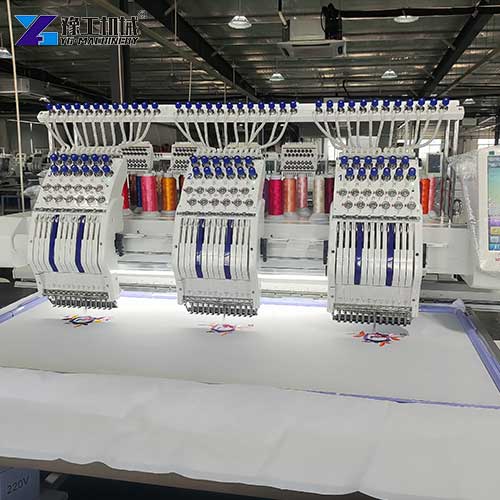

YG proposed the YS-1203 three-head advanced embroidery machine for this Australian workshop. This multi-head embroidery machine features a 400 × 450 mm working area, 12 needles with optional 9 or15 needle setups. It reaches 1000 RPM for flat fabric work and 800 RPM for caps and garments, protecting fabric integrity. Equipped with a Dahao A15 control system, a 10-inch true-colour touch LCD and a servo spindle motor plus a high-quality rotary hook, this programmable embroidery machine maintains stable stitch quality for continuous daily runs. The gross weight is 650 kg; the wooden packaging volume is around 2.3 CBM. Installation and operator training are wrapped up within 3 days.
Client Feedback :
“This advanced embroidery machine handles our mixed apparel orders perfectly. The speed limit for caps and garments prevents fabric damage. The three-head setup cuts our production lead time on corporate uniform batches. The large touch screen makes pattern editing straightforward. We can take on bigger orders without sacrificing embroidery quality.”
Why YG Builds Advanced Embroidery Machines That Businesses Trust
YG Machinery offers a complete product line covering single-head and multi-head cap embroidery machines, high-speed flat embroidery, towel embroidery, sequin embroidery, and leather punching. The company focuses on high-speed, intelligent, and high-value solutions with multiple patents and full customisation services.
The YS-1201CT, YS-1202CT, and YS-1203 models share common design principles: reliable Dahao control systems, robust rotary hooks, and flexible needle configurations. These machines handle the demands of daily commercial use while remaining accessible to operators with limited embroidery experience.
YG provides customised machine configurations and process solutions based on each customer’s specific requirements. For businesses entering the embroidery market or expanding existing capacity, this flexibility ensures the right equipment for the job.
Commercial Embroidery Machine For Sale
Your choice of an advanced embroidery machine determines production capacity, operational flexibility, and the range of products you can offer. The YG embroidery machine series offers single-head, two-head, and three-head configurations with working areas from 360×510mm to 400×500mm, speeds up to 1,000 RPM, and the Dahao control system that operators trust.
Contact the YG sales team with your typical order sizes, design complexity, and available floor space. They will recommend the model that matches your business needs and provide a competitive quotation. Put the power of a reliable multi-head embroidery machine to work on your next production challenge.
