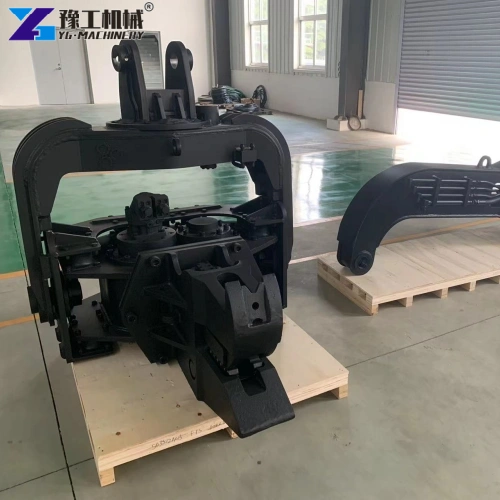

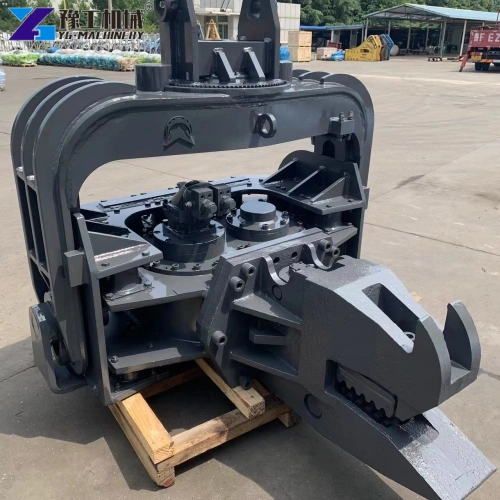

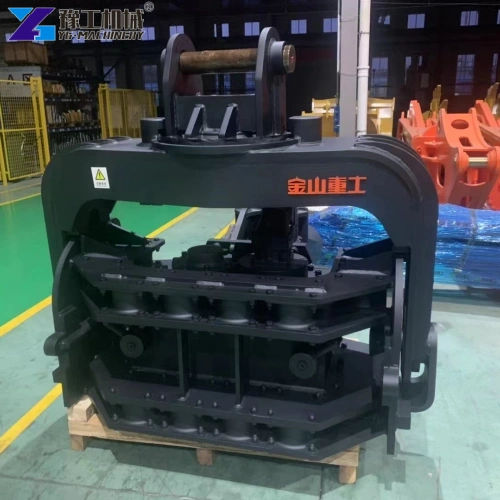

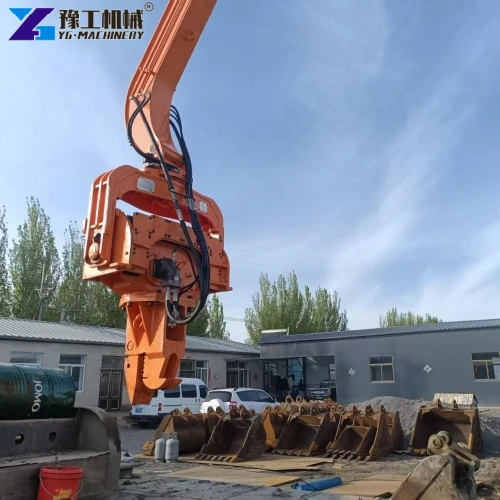

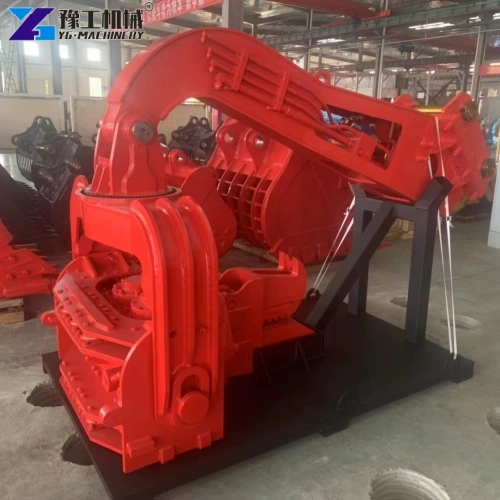

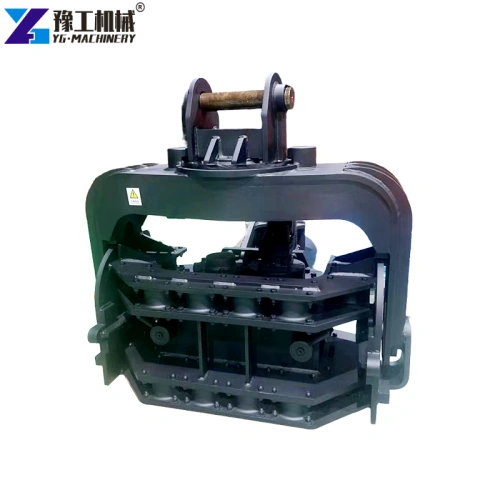

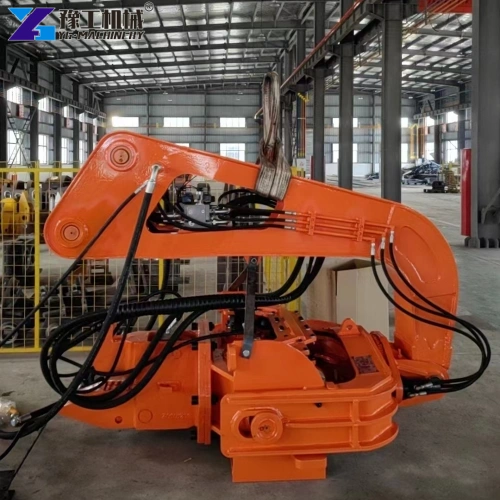

The excavator pile driver is a specialized pile driving attachment mounted on the front of an excavator. It primarily comes in two types: vibratory pile drivers and sheet pile drivers for excavators. It can quickly drive or extract sheet piles, pipe piles, and concrete piles into or out of the soil. As a standardized excavator pile driver accessory, it requires no independent power station and directly connects to the excavator’s hydraulic system. Most excavator pile drivers on the market adopt a quick-change coupling design, allowing a single excavator to quickly switch between pile driving, crushing, and cutting functions, significantly improving equipment utilization and making it a key component for construction teams to reduce costs and increase efficiency. Please contact us for more details.
YG Excavator Pile Driver Technical Parameter
| Model | YG150D | YG250D | YG350D | YG400D | YG450D |
| Eccentric moment(kg*m) | 3.2 | 5.1/5.7 | 7.1 | 9.2 | 11 |
| Speed(rpm) | 2600 | 2600 | 2600 | 2600 | 2600 |
| Excitation force(t) | 24 | 38/42 | 52 | 68 | 81 |
| Operating pressure of oil system(bar) | 200 | 300 | 320 | 330 | 330 |
| Flow demand for hydraulic oil system(lpm) | 100 | 163 | 220 | 260 | 300 |
| Weight(t) | 1.2 | 1.6 | 2.4 | 2.5 | 2.6 |
| Excavator(t) | 8-12 | 20-25 | 25-35 | 35-45 | 40-55 |
Working Principle of Excavator Pile Drivers
Excavator pile drivers utilize hydraulic transmission and high-frequency vibration for driving and pulling piles. The operation process is clear and efficient:
- The equipment is rigidly connected to the excavator boom via a quick-change interface, synchronously connecting to the hydraulic lines. High-pressure power is provided by the excavator, eliminating the need for an external power source or generator.
- The operator controls the hydraulic valves from the cab. This drives the double eccentric shafts inside the vibration chamber to rotate rapidly, producing a high-frequency vertical excitation force of 2500–2800 rpm, and transmits the force to the pile body via the vibration-damping mechanism.
- The vibration waves liquefy the soil around the pile, significantly reducing pile-soil friction resistance. Combined with the downward pressure of the excavator boom, the pile body is pressed into the soil layer at a uniform speed. During pile extraction, reverse vibration, combined with the lifting force, easily pulls out the pile.
- The hydraulic system uses closed-loop reflux control for start and stop, and the clamping mechanism automatically adapts to the pile size, ensuring precise control throughout the process and preventing pile damage and misalignment. This principle balances pile driving efficiency and construction accuracy. Moreover, it protects the pile body better than impact hammers, and offers stronger adaptability to complex soil conditions than static pressure equipment.
Core Advantages of Excavator Pile Drivers
1. High Efficiency and Energy Saving
Utilizing the hydraulic power of the excavator, energy consumption is reduced by more than 40% compared to independent pile drivers. Pile driving speeds can reach 4-12 meters per minute, increasing efficiency by 30%-50% compared to traditional equipment. Most excavator pile drivers on sale feature a maintenance-free vibration unit, extending the lifespan of vulnerable parts by 50% and reducing maintenance costs by 30%. They can complete 2-3 times the workload of traditional equipment per day.
2. Strong Adaptability

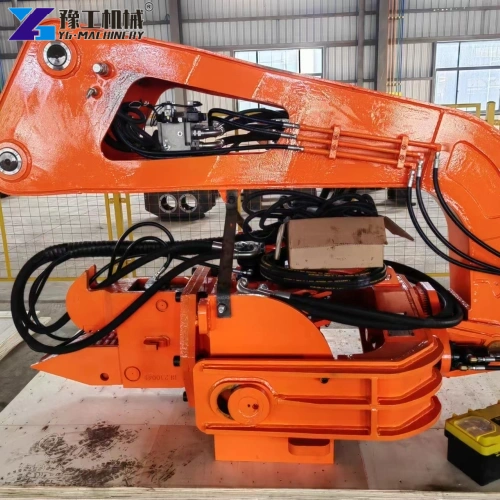

Small excavator pile drivers can access confined spaces such as courtyards and pipe trenches. Meanwhile, excavator sheet pile drivers feature a dedicated clamping arm compatible with U-shaped and Z-shaped steel sheet piles. In addition, vibratory models fit various pile materials, including steel pipe piles and precast piles. They can be matched with excavators ranging from 5 to 50 tons, with quick-change couplings allowing for switching in 10 minutes, truly achieving multi-purpose functionality.
3. Environmentally Friendly and Safe
Operating noise is controlled below 85 decibels, eliminating the risk of impact vibration and flying rocks. No blasting permits are required, allowing safe construction in urban residential areas and around bridges. The wet dust suppression option can reduce dust emissions by 80%, meeting environmental construction standards and reducing disturbance to residents and compliance risks.
4. Precision and Stability
The clamping mechanism aligns precisely with vibration frequency, thus keeping pile deviation below 1% and verticality error within ≤3mm/m. Furthermore, hydraulic closed-loop control achieves uniform pile driving, preventing pile cracking and significantly improving structural stability in slope protection, cofferdam, and other engineering projects.
Main Application Scenarios of Excavator Pile Drivers
- Municipal Infrastructure: Urban pipeline support, road widening pile foundations, subway fencing foundations; small excavators can flexibly navigate confined spaces.
- Water Conservancy and Flood Control: River cofferdams, dam reinforcement, flood control pile construction; excavators can quickly build water-stopping retaining structures using sheet pile drivers.
- Building Foundations: Residential building and factory foundation pit support and pile foundation construction; suitable for various geological conditions such as soft soil, clay, and sand.
- Transportation Engineering: Highway slope protection, bridge pier support, railway subgrade reinforcement; efficiently completes large-scale pile work.
- Landscaping and Rural Construction: Courtyard fence piles, photovoltaic support piles, agricultural greenhouse foundation piles; small-tonnage models are deployed at low cost.
YG Excavator Pile Driver Frequently Asked Questions
1. What size excavator is the YG excavator pile driver compatible with?

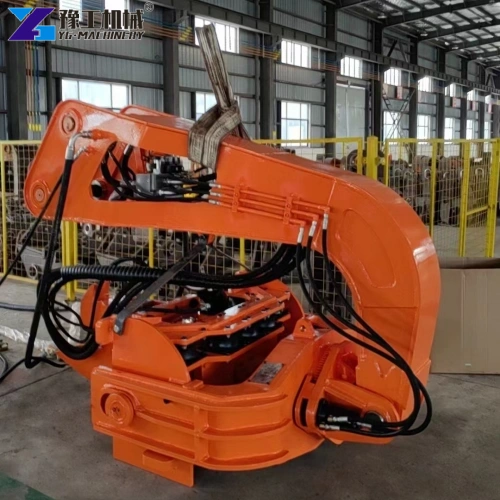

The YG series covers excavators from 5 to 50 tons. Pile drivers for small excavators are compatible with 3-8 ton mini excavators, and heavy-duty vibratory hammers are compatible with 20-50 ton large excavators. Quick-change interfaces are compatible with mainstream brands, and customized matching solutions can be provided upon order.
2. What types of piles does the excavator pile driver support?
YG models support sheet piles, steel pipe piles, H-beams, and precast concrete piles. Special clamps for sheet pile drivers for excavators allow for quick changes to meet different project needs.
3. Are there any soil requirements for the vibratory pile driver?
It can adapt to common geological conditions such as clay, sand, silt, and backfill. For dense sand and gravel layers, a high-vibration-force model can be selected. For rock layers, it is recommended to use it with crushing attachments for pretreatment.
4. How difficult is the equipment installation and operation?
It adopts a quick-change design, and the installation can be completed in 10 minutes. The operation follows the logic of the excavator handle, and no professional training is required. A single person can complete the entire process of driving and pulling piles.
