Shot blast equipment is a mechanical device that uses compressed air as its core power source to propel abrasive materials such as diamond abrasive, glass beads, and steel shot at high speed onto the surface of a workpiece. Through the impact of the abrasive, it achieves surface treatments such as rust removal, oxide scale removal, deburring, surface roughening, and refurbishment. Unlike traditional manual grinding, it completely solves the pain points of low efficiency, uneven results, and high labor intensity associated with manual processing due to its mechanized operation. It is an indispensable surface treatment equipment in modern industrial production and engineering construction. If you are interested in shot blast equipment, please contact us for more product information and specific quotations.
Shot Blast Equipment Main Parameters:
| Machine models | YG400 | YG500 | YG600 | YG700 | YG800 | YG900 | YG1000 |
| Diameters(mm) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Height(mm) | 1150 | 1150 | 1150 | 1250 | 1700 | 2000 | 2000 |
| Volume(cubic meter) | 0.26 | 0.26 | 0.26 | 0.3 | 0.6 | 0.8 | 1 |
| Pressure(Mpa) | 0.4-8 | ||||||
| Air consumption(cubic meter per minute) | 3 | ||||||
Working Principle of a Shot Blast Equipment
The core working principle of a shot blast equipment is “high-pressure abrasive impact,” which mainly consists of four key steps:
- Power Supply: The sandblasting compressor compresses air to 0.4-0.8 MPa, providing a continuous and stable compressed air power for the sandblasting machine (a core prerequisite). Its pressure and air volume determine the abrasive jet speed and impact force. Manufacturers equip small portable shot blast units with mini compressors, and fit large automatic sandblasting machines with medium or heavy-duty compressors.
- Abrasive Storage and Mixing: Operators load suitable abrasives into the sandblasting equipment hopper. Common options include diamond abrasives for rust removal and glass beads for fine surface finishing. The system blends abrasives fully with compressed air inside the conveying pipeline and forms a high-pressure abrasive flow.

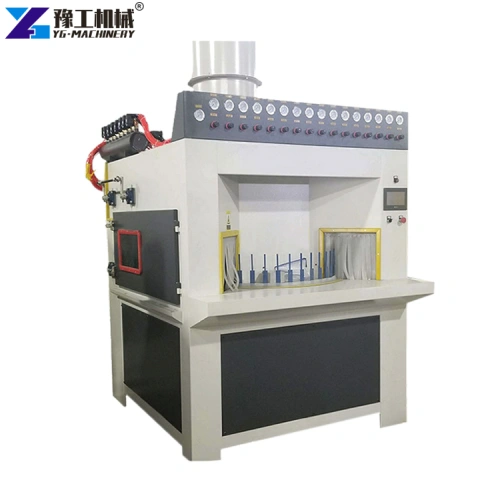

- High-Speed Jetting: Many high-end sandblasting machines, especially automatic models, install a waste recycling system. Portable sandblasting machines allow manual control of the spray gun angle to adapt to complex working conditions, while automatic sandblasting machines use a PLC control system to achieve precise spray gun positioning and uniform jetting.
- Waste recycling: Many high-end sandblasting machines, especially automatic models, install a waste recycling system. The system separates used abrasives from waste impurities, reclaims reusable abrasives, cuts operating costs, and lowers dust pollution.
Core Advantages of Shot Blast Equipment
- High Efficiency and Labor Saving: One sand blasting equipment can process 10-80 square meters per hour, which is 6-10 times more efficient than manual labor. It requires only 1-2 operators and can replace 5-8 skilled workers, significantly reducing costs. Automatic sandblasting machines offer batch automated operation, increasing efficiency by over 30% compared to manual models. Portable sandblasting machines require no fixed location and, when paired with a small shot blast equipment, can be quickly deployed to outdoor or on-site repair scenarios, improving operational efficiency.
- Uniform Processing: Controllable Quality. Mechanized operation ensures uniform surface finish and consistent roughness, avoiding omissions and uneven depths that occur with manual grinding. This lays a foundation for subsequent processes, improves coating adhesion, and reduces later peeling and hollow spots. Whether for delicate parts or large steel structures, sandblasting machines can precisely control the blasting force and range, achieving results far exceeding manual labor, with stable and controllable quality.
- Energy Saving and Cost-Effective: Environmentally friendly and convenient sandblasting machines with an abrasive recovery system achieve an abrasive reuse rate of ≥70%, reducing consumable costs. We precisely match shot blast equipment with sandblasting machine models to avoid power waste. Modern sandblasting machines adopt a full dust removal system to cut down dust pollution. Portable sandblasting machines feature compact size, easy assembly, and disassembly. Automatic sandblasting machines support intelligent operation, simple maintenance, and low-cost spare parts, which further lower overall operating costs.
- Wide Adaptability: Sandblasting machines are compatible with various abrasives, covering portable and automatic sandblasting machines. With different specifications of sandblasting compressors, they can adapt to workpieces of different materials and sizes, handling both small precision parts and large steel structures and ship hulls. They meet a variety of surface treatment needs, with adaptability far exceeding that of traditional manual equipment.
Common Shot Blast Equipment Problems and Solutions
1. Insufficient blasting power, resulting in poor treatment effect.
Solution: First, check if the sand blasting compressor pressure is up to standard (must be maintained at 0.4-0.8MPa). Clean the air filter to avoid blockage and pressure loss. Second, check if the nozzle is worn (replace if worn more than 20% of the original size). Replace with a suitable abrasive grit. For portable sand blasting machines, check for air leaks in the delivery pipeline, tighten joints promptly, and replace aged seals.
2. Poor abrasive circulation, causing blockage.
Solution: Check if the abrasive in the hopper is damp and clumped (storage humidity should be controlled below 40%). Damp abrasive should be dried before use. Clean the separator screen and select a screen that matches the abrasive grit size. For automatic sandblasting machines, check if the recovery system accumulates dirt and promptly clean metal shavings or debris to ensure smooth abrasive circulation.
3. Automatic Sandblasting Equipment operates unstably and experiences jamming.
Solution: Check if the PLC control system is functioning properly; clean dust from the sensors and calibrate the spray gun positioning; check if the air output of the sandblasting compressor is stable to avoid insufficient power supply; regularly lubricate the transmission components of the equipment to reduce mechanical wear and ensure smooth operation of the automatic sandblasting machine throughout the entire process.

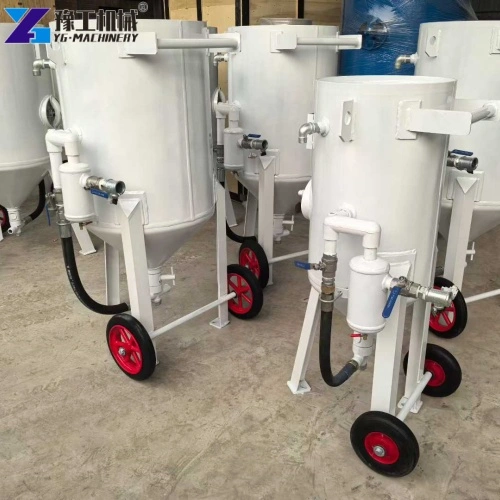

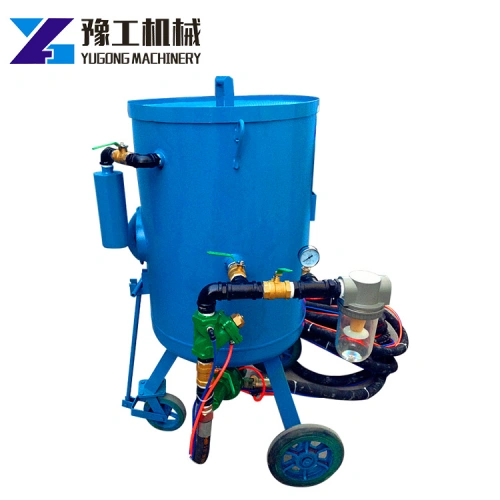

4. The portable sandblasting machine is inconvenient to move, limiting its working range.
Solution: Check if the equipment’s casters are flexible and add lubricating oil as needed; use a small portable sandblasting compressor to reduce the overall weight of the equipment and improve mobility; plan the work route reasonably to avoid excessive pipeline length leading to pressure loss, and expand the working range.
5. Insufficient power due to improper matching of the sandblasting compressor and the sandblasting machine.
Solution: Select a suitable sandblasting compressor according to the sandblasting machine model—small portable sand blasting machines should be paired with a 7.5KW sandblasting compressor with an air delivery rate of 1m³/min; medium-sized automatic sand blasting machines should be paired with a 15KW sandblasting compressor with an air delivery rate of 2m³/min; large automatic sand blasting machines should be paired with a sandblasting compressor of 22KW or higher with an air delivery rate of 3m³/min to ensure sufficient power and achieve the best performance of the shot blast equipment.
