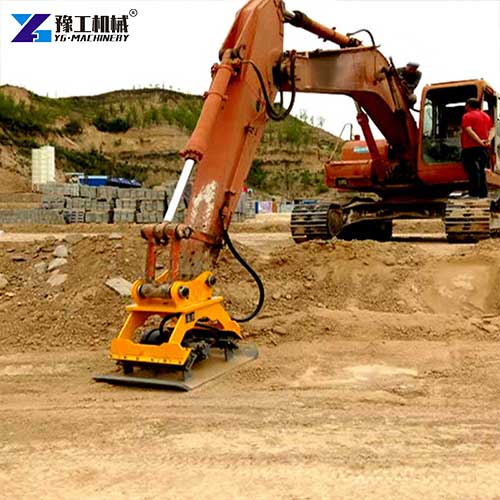

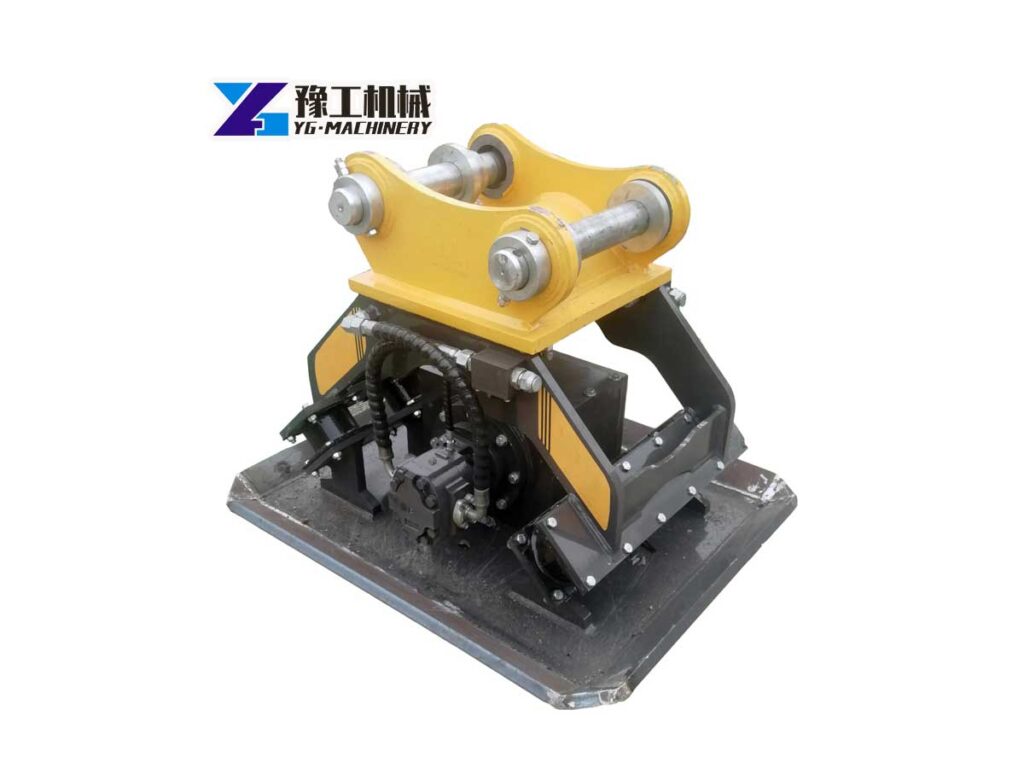

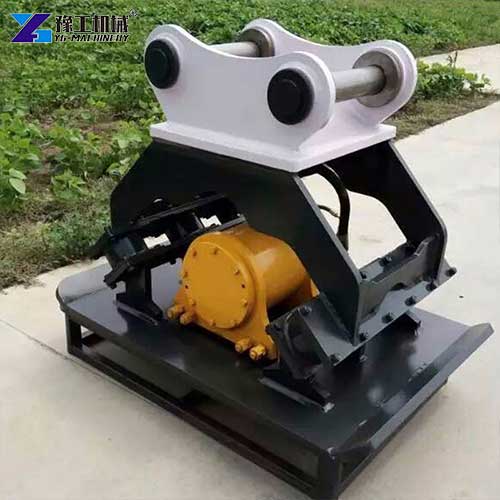

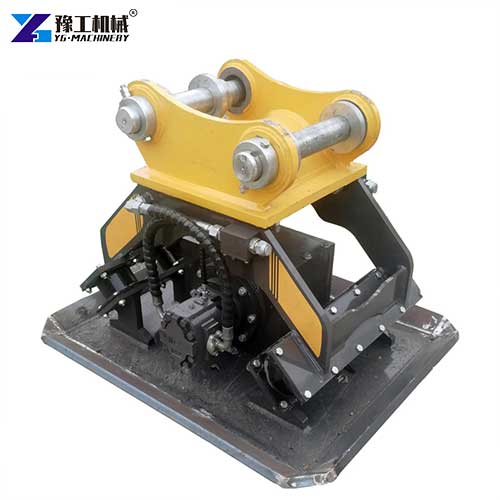

An excavator plate compactor is a dedicated excavator attachment engineered to compact soil, backfill and base materials across restricted construction zones. Unlike standalone walk-behind compactors that struggle with hard-to-reach spots, this device locks directly onto excavator arm joints to complete uniform compaction work without extra manpower. This hydraulic plate compactor fits construction projects ranging from small residential trenches to large highway embankment reinforcement.
Many contractors hunt for a hydraulic plate compactor for excavator to cut down repeated manual compaction steps, and this machine eliminates the safety risks of workers operating heavy compactors beside steep slopes or deep ditches. Operators control the entire unit from the excavator cabin, which makes the excavator compactor attachment far more practical for uneven, narrow construction sites. This equipment is also a top pick for teams searching for a mini excavator compactor to handle layered backfill compaction around bridge abutments and culvert sides. Every piece of equipment from YG Machinery aligns with standard excavator hydraulic output parameters to deliver consistent compaction results on every job site.
Excavator Plate Compactor Parameters:
| Model | YG-32 | YG-50 | YG-80 | YG-107 |
| Vibration force(KN) | 40 | 65 | 110 | 150 |
| Excitation frequency(RPM) | ≥2000 | ≥2000 | ≥2200 | ≥2200 |
| Working pressure(MPA) | 15 | 15 | 15 | 15 |
| Maximum flow(L/min) | 60 | 100 | 160 | 160 |
| Suitable excavators(T) | 4-9 | 10-18 | 20-27 | 30-40 |
| Length/width/height(mm) | 900*550*750 | 1160*700*930 | 1350*900*1000 | 1350*900*1050 |
| Machine weight(KG) | 380 | 550 | 920 | 1050 |
| Hit area(mm) | 900*550 | 1160*700 | 1350*900 | 1350*900 |
How Does the Excavator Plate Compactor Work?
The operation logic of this unit relies entirely on your excavator’s built-in hydraulic system, and the process breaks down into three clear, connected steps:
- Hydraulic power transfer: Excavator hydraulic oil flows into the compactor’s internal vibration motor at a fixed 15MPA working pressure. The motor converts liquid pressure into rotating mechanical force to drive the internal eccentric block.
- Vibration force generation: Spinning eccentric blocks create high-frequency vertical vibration, ranging from 40KN up to 150KN based on selected models. Higher vibration force pushes granular soil particles tightly together to remove air gaps inside backfill layers.
- Uniform ground compaction: The flat bottom hit plate transfers vibration evenly to contact surfaces. The wide hit area of each model ensures every ground section receives identical compaction pressure to avoid loose or uneven foundation layers.
Transition note: Unlike independent compactors that rely on gasoline engines, this mini excavator compactor draws power straight from your excavator, so you skip separate fuel storage and engine maintenance for secondary compaction gear. The excavator plate compactor syncs its vibration frequency to your machine’s hydraulic flow rate, keeping stable vibration output during long continuous work shifts. Most site crews select the excavator compactor attachment because its hydraulic drive system runs without smoke or loud auxiliary engine noise inside urban construction zones.
Unique Design Advantages For Complex Terrain Compaction
Standard compactors fail on uneven, sloped or corner construction zones, but this excavator plate compactor solves these pain points with targeted structural design features:
- All-terrain adaptable flat base plate: The thickened wear-resistant base plate maintains full contact with uneven ground, including slope surfaces, stair-shaped foundation steps and tight culvert corners. It delivers consistent compaction density even on inclined dam revetment sections.
- Continuous non-stop operation structure: The internal vibration motor runs stably for extended work cycles without overheating. Construction teams can finish long stretches of road shoulder or ditch backfill without frequent shutdown breaks.
- Quick connection mounting bracket: Universal connecting brackets fit most mainstream excavator brands. Field crews complete full installation within minutes without custom modification or specialized tools.
- Heavy-duty solid frame construction: Thick steel frame resists impact and abrasion during daily rugged construction use, extending the service life of your excavator plate compactor across years of outdoor site work.
Material Matching Guide for Excavator Plate Compactor
This hydraulic plate compactor for excavator works effectively with nearly all common construction filling materials, and each material type gains stable foundation strength after vibration compaction:
Loose soil and clay backfill: Vibration force collapses air pockets inside loose clay layers to prevent foundation sinking after project completion. Ideal for building foundation trenches and pipeline ditch filling.
Sand and gravel aggregate: Granular road base materials lock tightly together under high-frequency vibration, creating stable subgrades for highway and residential pavement.
Mixed rock fragment fill: Medium-strength vibration compacts crushed stone layers on dam and slope revetment works without damaging the compactor’s base plate.
Thin concrete repair layers: Light vibration settings smooth and compact thin concrete pavement patch sections for seamless road surface restoration.
If you manage an excavation fleet and frequently handle backfill, slope, road or foundation compaction tasks, our range of excavator plate compactor models covers all excavator tonnage classes from 4 tons up to 40 tons. Our team provides clear model matching guidance to help you select the right mini excavator compactor that perfectly fits your daily construction work demands. Reach out to our sales team today to view complete technical parameter details and receive a customized quotation for your project equipment upgrade.
