When you aim to boost wall‑finishing efficiency without sacrificing surface flatness, the automatic wall plastering machine brings the practical performance you need. It is not a niche experimental tool. It performs continuous plaster spreading and smoothing for interior walls. And it adapts to different mortar materials and handles various wall base conditions to match diverse construction requirements. This machine eliminates uneven coating and vertical deviation common in manual work, and delivers consistent finishing quality across large continuous wall surfaces. An auto wall plastering machine works for both new construction wall finishing and renovation resurfacing jobs, adapting to different wall heights with adjustable operating ranges.
Automatic Wall Plastering Machine Parameters:
| Model | YG-800 | YG-1000 |
| Plastering height | Below 4 meters | Below 5 meters |
| Weight | 270 kg | 290 kg |
| Plastering thickness | 2~30 mm | 2~30 mm |
| Power | 1.5 KW | 1.5 KW |
| Plastering efficiency | 500 CBM/8H | 550 CBM/8H |
| Voltage | 220 v/380 v optional | 220 v/380 v optional |
What Does an Automatic Wall Plastering Machine Do?

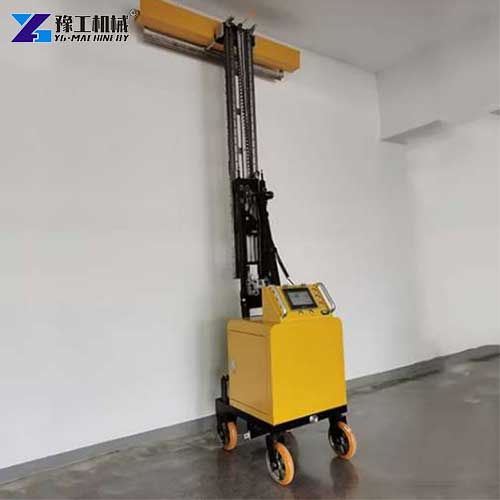

A cement wall plaster machine is a mechanized plastering system that applies mortar to vertical walls with minimal manual intervention. It consists of a sensor system, logic programmer, servo system, posture adjustment mechanism, plastering robotic arm, and trowel.
The machine is designed to work with cement mortar, gypsum mortar, lightweight mortar, and joint compound. It operates on 48V battery power and moves on wheels, allowing it to navigate around job sites without external power connections for movement.
Unlike manual plastering, which requires “striking” (setting guide lines) before work begins, the YG series cement wall plaster machine automatically corrects verticality and flatness. The machine’s high-sensitivity attitude sensors continuously monitor the wall surface, adjusting the trowel position to maintain perfect alignment.
The trowel width is 1.3 meters, allowing the machine to cover a wide area in each pass. Plastering height ranges from 3 to 4 meters depending on the configuration. The machine operates efficiently, with high productivity and easy operation.
How a Cement Wall Plaster Machine Works?
The YG series automatic wall plastering machine follows a systematic process that ensures consistent results with minimal operator input.
- Setup and Positioning. The operator wheels the machine to the wall and positions it against the work surface. The adaptive chassis system automatically adjusts to uneven ground, ensuring the machine remains stable and level.
- Parameter Setting. Using the touchscreen human-machine interface, the operator sets the plastering thickness (2- 30 mm), speed, and other parameters. The system stores these settings for consistent results across multiple runs.
- Plaster Application. The machine moves vertically along the wall, applying mortar through the trowel. The brushless servo motor provides stable torque and precise speed control. The operator can adjust the speed in real time through the touchscreen.
- Posture Correction. The high-sensitivity, high-resolution attitude sensors continuously monitor the wall surface. The high-precision attitude adjustment system automatically corrects the trowel position to maintain perfect verticality and flatness.
- Compaction and Smoothing. The trowel compacts and smooths the mortar in a single pass. The machine can complete the entire wall surface in one operation, eliminating the need for multiple passes or manual finishing.
- Movement and Repositioning. The machine moves forward and horizontally, allowing operation in corridors and narrow spaces. The one-button electric brake holds the machine in position during operation.
- The logical programming controller manages the entire process, ensuring stable and reliable operation. The system includes quick-assembly and disassembly features, making it easy to transport between sites.
6 Components of the Automatic Wall Plastering Machine
- Body Shell and Chassis. The main structure houses all components and provides the machine’s frame. The adaptive chassis system ensures stability on uneven ground.
- Control System. The logic programmer and touchscreen interface manage all machine functions. Operators can read equipment status, modify parameters, and control operation through the intuitive interface.
- Sensor System. High-sensitivity posture sensors monitor the wall surface continuously. The sensors detect deviations in verticality and flatness, feeding data to the control system for real-time correction.
- Robotic Arm and Trowel. The high-strength aviation aluminum arm supports the trowel mechanism. The 1.3-meter-wide trowel applies and smooths mortar in a single pass.
- Servo System. The brushless servo motor provides stable torque with a low failure rate. The motor offers torque, position, and speed control functions, all adjustable through the touchscreen.
- Power System. The 48V battery powers the movement and control systems, while the 1.5kW motor drives the plastering mechanism. The battery system allows cordless operation for positioning and maneuvering.
Materials an Automatic Wall Plastering Machine Can Handle
- Cement mortar is the most common wall plastering material. The machine applies it evenly at thicknesses from 2- 30 mm, with consistent compaction and smoothing.
- Gypsum mortar is used for interior walls where faster setting and smoother finishes are required. The machine handles gypsum’s quicker setting time without compromising quality.
- Lightweight mortar is used for insulation and soundproofing applications. The machine applies it without damaging the lightweight aggregate structure.
- Joint compound is used for finishing and patching. The machine applies it smoothly for seamless wall finishes.
- The machine works on multiple wall types: cement walls, brick-concrete walls, hollow walls, lightweight brick walls, and non-burning brick walls. This versatility makes the automatic wall plastering machine suitable for a wide range of construction projects.
Automatic Cement Plaster Machine For Sale
YG manufactures and exports construction equipment to markets worldwide, providing technical support and spare parts availability for international customers. The company’s machines are designed for residential buildings, office spaces, shopping malls, hotels, and institutional projects.
If you need an automatic wall plastering machine that delivers speed, precision, and consistency, the YG series provides proven performance. Contact us with your project requirements—wall height, material type, and production targets. We will recommend the right auto wall plastering machine for your operation. Get a free quote for your automatic cement plaster machine today.
