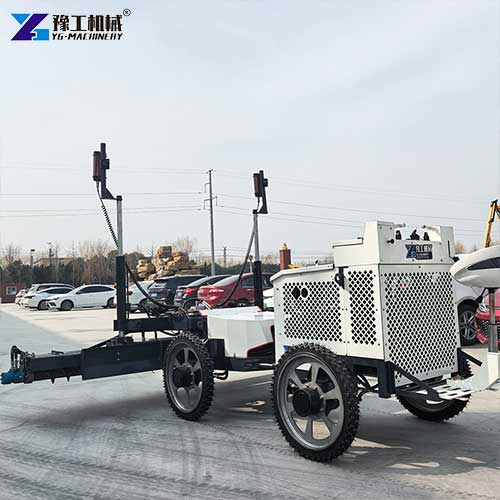

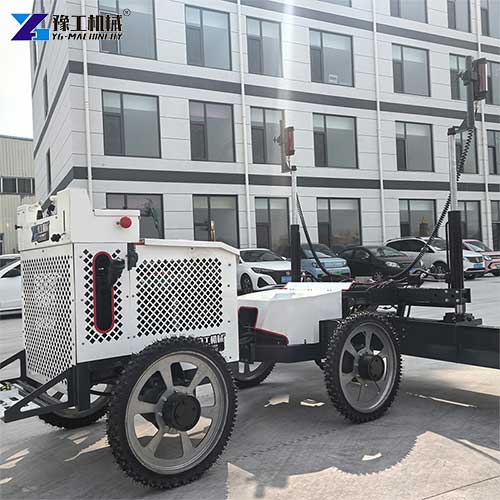

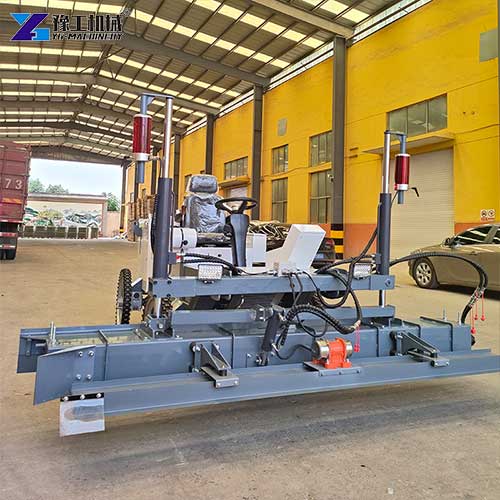

A concrete floor leveling machine is a high-precision construction equipment designed for concrete floor work. It uses laser positioning, automatic leveling and vibration compaction integrated technology to replace traditional manual leveling and ruler scraping. It solves the problems of poor flatness, large height difference, low efficiency and high labor cost in traditional construction.
This automatic concrete leveling machine integrates laser measurement, computer intelligent control, hydraulic transmission, and vibration compaction into four core systems. It can automatically calibrate the elevation, accurately level and vibrate the concrete at the same time, and completely abandon the rough construction mode of manual finding and manual scraping. The flatness error can be controlled at the millimeter level, which is the mainstream equipment for standard industrial floor construction overseas.
Concrete Floor Leveling Machine Parameters:
| Model | YGJX31 | YGJX32 | YGJX33 | YGJX34 |
| Engine | ||||
| Model | Generator set | GX390 Electric start | GX390 Electric start | GX390 Electric start |
| Power | 2.0kW | 13hp/3600rpm | 13hp/3600rpm | 13hp/3600rpm |
| Fuel tank (L) | 14.5 | 6.5 | 6.5 | 6.5 |
| Running device | ||||
| Drive | Motor | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| Running mode | Infinitely variable speed | Handle control, stepless speed | Handle control, stepless speed | Handle control, stepless speed |
| Running speed(m/min) | 0-36 | 0-45 | 0-65 | 0-45 |
| Suggest working speed(m/min) | 5 | 5 | 5 | 5 |
| Screed head | ||||
| Type | Self-leveling | Electric control, self-leveling | Self-leveling | Hydraulic control, self-leveling |
| Width | 2500mm | 2500mm | 2500mm | 2500mm |
| Exciting force | 500N | 500N | 500N | 500N |
| Vibration frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Laser control system | ||||
| Control type | Microcomputer laser scan | Microcomputer laser scan | Microcomputer laser scan | Microcomputer control |
| Operation mode | Walk-behind | Walk-behind | Walk-behind | Walk-behind |
| Forward and reverse | Handgrip control, stepless speed-walking | Hydraulic control | Handgrip control, stepless speed-walking | Hydraulic control |
| Size and weight | ||||
| Working size(mm) | 2758*2622*1980 | 2740×2659×1980 | 2578×2643×1980 | 2780*2622*1980 |
| Weight(kg) | 295 | 365 | 380 | 410 |
Where Can a Concrete Floor Leveling Machine Be Used?
This laser concrete leveling machine is suitable for various high-standard concrete floor construction scenarios:
- Large industrial warehouses and logistics centers: It can meet the high flatness requirements of large-area warehouse floors and ensure that forklifts and automated logistics equipment run smoothly on the floor.
- Large commercial supermarkets and shopping malls: It is suitable for large-area commercial floor construction, and the flat and dense floor can reduce later maintenance costs and improve the overall appearance of the site.
- Modern factories and workshops: For precision manufacturing factories and production workshops, the high-precision flat floor can ensure the stable operation of production equipment and reduce equipment wear.
- Underground garages and parking lots: It can complete the leveling of large-area parking lot floors efficiently, and the dense concrete floor has better wear resistance and a longer service life.
- Airport and station freight yards and aprons: It is suitable for large-area hard ground construction of transportation hubs, and can meet the high load and high flatness requirements of heavy vehicles and aircraft.
5 Features of a Concrete Floor Leveling Machine
Our concrete floor leveling machine has many practical advantages designed according to actual construction needs:
- High-precision laser control: It adopts a microcomputer laser scanning control system. The laser transmitter emits a 360° rotating laser to build a constant-precision horizontal reference plane. The high-sensitivity laser receiver captures the laser signal in real time, and the system automatically adjusts the elevation to ensure millimeter-level flatness accuracy.
- Integrated leveling and compaction: While leveling the concrete, the vibrating screed head compacts the concrete at the same time. The 500N exciting force and 50Hz vibration frequency make the concrete more dense, which improves the overall strength and wear resistance of the floor.
- Simple operation and flexible walking: It adopts a walk-behind design, and the operation is simple and easy to learn. Workers can master the operational skills after short training. It supports stepless speed adjustment, and you can adjust the walking speed according to different concrete conditions and construction requirements.
- Wide range of applications: It is suitable for almost all types of concrete floor construction, from small workshops to large logistics warehouses. You can choose different power configurations according to your project scale and site conditions.
- Stable performance and low maintenance cost: The whole automatic concrete leveling machine has a simple and durable structure, with a low failure rate. Daily maintenance is simple and convenient, and the life-cycle cost is very low.
How Much Time Can You Save With A Concrete Floor Leveling Machine On A 1000㎡ Floor?
For construction teams, construction time directly affects project cost and schedule. Many contractors choose laser leveling equipment mainly because it can greatly shorten the construction period. You can calculate the time savings clearly based on actual construction parameters.
A standard concrete floor leveling machine has a leveling width of 2500mm, and the recommended working speed is 5m per minute. Under normal construction conditions, you can complete about 600-700 square meters of leveling work per hour (deducting auxiliary time such as turning and material transfer).
For a 1000 square meter floor project:
With laser leveling equipment, you can finish the whole leveling work in about 1.5-2 hours, and the concrete compaction and leveling are completed at one time, with no secondary treatment needed.
With traditional manual leveling, you usually need 5-6 skilled workers to work for 1-2 days, and you also need to do secondary scraping and calibration, which takes much longer.
That means you can cut the floor leveling construction time by more than 80% with this equipment. For large-scale projects with tens of thousands of square meters, the time savings are even more obvious. You can complete more projects in the same time, and greatly improve your team’s profitability. If you often take on large-area floor construction projects, investing in a laser concrete leveling machine can bring you a very high return on investment. It not only improves construction efficiency but also ensures more stable construction quality, which helps you win more high-standard projects.
If you are looking for a reliable concrete laser screed for sale, you should give priority to models with a suitable leveling width and a stable laser control system, which can bring you the best user experience.

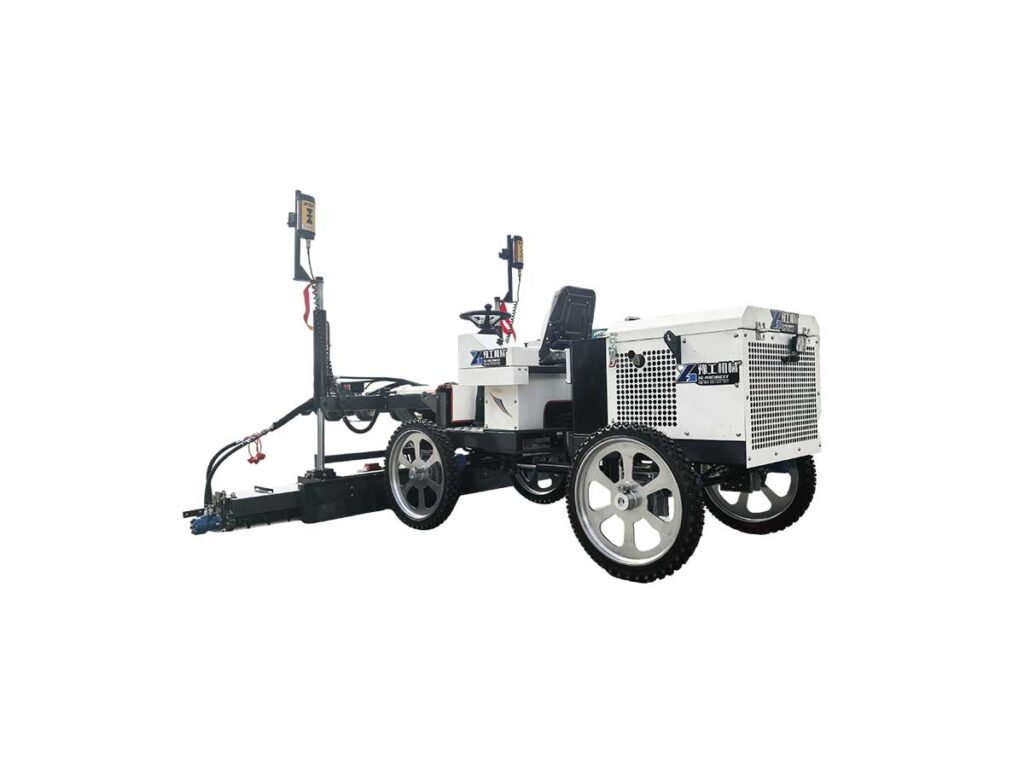

YG Concrete Laser Screed For Sale
YG has focused on construction equipment for many years. Every concrete floor leveling machine we produce undergoes strict factory testing to ensure stable performance and reliable quality. We have multiple models and power configurations to meet the needs of different project scales.
If you need high-precision floor leveling equipment for your construction projects, contact us today. You just need to tell us your common project area and construction requirements, and we will recommend the most suitable model for you and provide a detailed quotation. We also provide operational guidance and after-sales support to help you start construction quickly. If you are looking for a cost-effective concrete laser screed for sale, we are definitely your best choice.
