A hydraulic excavator grapple is a high-performance excavator attachment designed to replace manual and bucket-based bulk material handling. Unlike standard digging buckets that struggle with irregular and loose materials, this claw-style attachment wraps around cargo securely, making it ideal for loading, stacking and sorting work on construction sites, quarries and recycling yards. It eliminates the need for extra on-site labor to fix material positions, and cuts down material spillage during transport. For operations that handle mixed or irregular cargo every day, this attachment directly raises daily throughput and reduces on-site safety risks.
Hydraulic Excavator Grapple Technical Specifications:
| Item/Model | Unit | YGO04A | YGO06A | YGO08A | YGO06B | YGO08B |
| No. of Jaw | piece | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 |
| Suitable Excavator | ton | 6-9 | 10-17 | 18-25 | 10-17 | 18-25 |
| Weight | kg | 355/420 | 900/1000 | 1650/1900 | 850/1000 | 1700/1950 |
| Max Open Jaw | mm | 1200 | 1600 | 2050 | 1900 | 2500 |
| Height of Opened Grapple | mm | 1000 | 1500 | 1700 | 1550 | 2000 |
| Working Pressure | bar | 200 | 260 | 320 | 260 | 320 |
| Working Flow | lpm | 50-100 | 60-120 | 200-250 | 60-120 | 200-250 |
| Capacity | m3 | 0.3 | 0.4 | 0.8 | 0.5 | 1 |
Scrap Metal, Stone, Timber: What the Hydraulic Excavator Grapple Handles?
The YG hydraulic excavator grapple handles a wide range of materials across multiple industries.

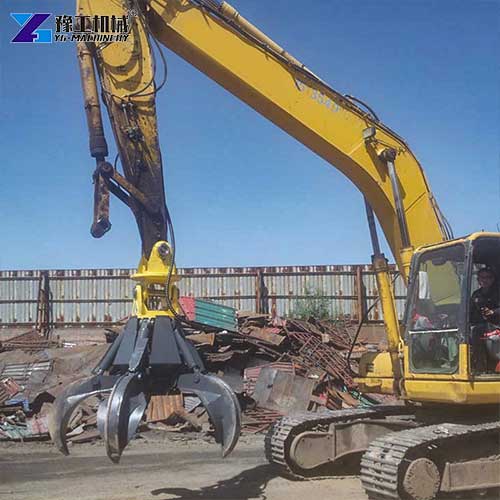

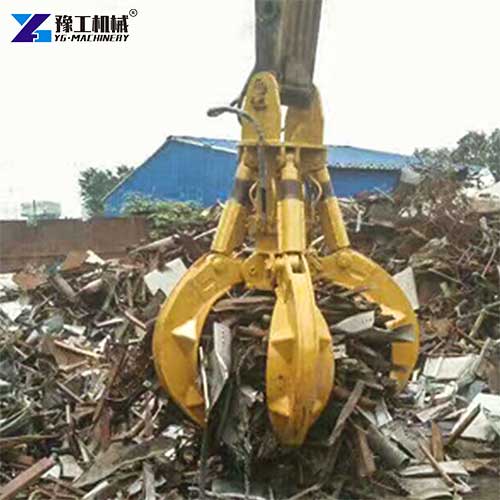

- Scrap Metal and Steel Processing: Scrap yards and recycling facilities process massive volumes of ferrous and non-ferrous scrap daily. An excavator orange peel grapple loads scrap onto conveyor belts, feeds shears and shredders, and loads trucks for shipment. The curved tines conform to the shape of irregular scrap, providing a secure grip that standard grapples cannot achieve.

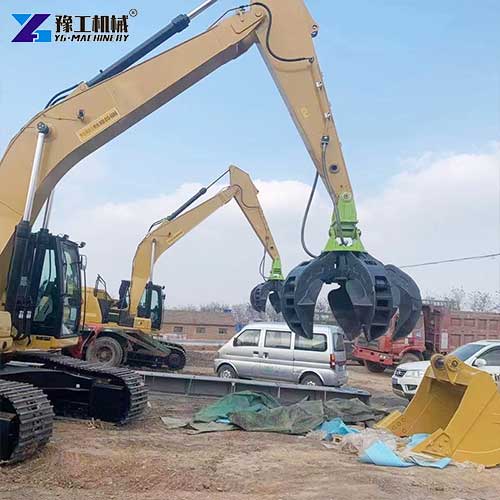

- Demolition and Construction Debris: Demolition generates large quantities of steel rebar, concrete with rebar, and mixed debris. The hydraulic excavator grapple separates materials for recycling and loads trucks efficiently. The 360° rotation allows precise placement without repositioning the excavator.
- Stone and Aggregate Handling: Quarries and construction sites use the grapple to handle crushed stone, boulders, and aggregate. The NM500 steel tines resist abrasion from stone, maintaining grip and shape over extended use.
- Timber and Forestry Work: The grapple handles logs, timber, and brush. The curved tines conform to the shape of logs, providing secure grip without damaging the wood. For plantation and forestry operations, the hydraulic grapple for excavator provides efficient material handling.
- Waste and Recycling: Municipal and industrial waste facilities use the grapple to handle mixed waste, bulky items, and recyclable materials. The grapple’s ability to handle irregular shapes makes it suitable for sorting and loading operations.
Core Structural Design: Built For Harsh Heavy-Duty Work Conditions
The durability of excavator attachments depends entirely on structural design and material selection. Our hydraulic grapple for excavator uses industrial-grade raw materials for every core component to adapt to dusty, high-impact site environments.
1.NM500 Wear-Resistant Steel Main Body
This excavator orange peel grapple constructs its entire jaw frame from NM500 abrasion-resistant steel. Compared with ordinary carbon steel alternatives, this material delivers outstanding wear resistance while keeping the overall weight lower. The reduced self-load puts less stress on your excavator arm and hydraulic system, and the thickened wear-resistant steel plate resists scratches and impacts from sharp stone and scrap metal. For quarry and scrap yard operations, this material choice greatly extends the service life of the grapple body and reduces downtime for maintenance and replacement.
2. 42CrMo Alloy Steel Pivot Pins with Internal Oil Channels
All pivot pins adopt 42CrMo alloy steel, a material that balances high tensile strength and excellent toughness. Each pin has built-in internal oil channels to deliver continuous lubrication to rotating parts during operation. This design reduces friction loss during frequent opening and closing cycles, prevents jamming caused by dust intrusion, and maintains smooth movement even after long hours of continuous work. The high-strength pins also handle heavy impact loads without deformation, keeping the grapple aligned accurately after thousands of work cycles.
3. Honed Hydraulic Cylinders with Imported HALLITE Seals
The built-in hydraulic cylinders use precision-honed tubes paired with imported HALLITE oil seals. The smooth honed inner wall reduces seal wear during frequent piston movement, and the premium seals prevent oil leakage even under high working pressure. This configuration delivers faster hydraulic response and shorter working cycles, so operators can complete more grabbing cycles per hour. The reliable sealing system also avoids hydraulic oil contamination on site, which is especially important for recycling yards and timber processing sites with strict cleanliness requirements.
4. Closed Oil Circuit with Built-In High-Pressure Hoses
Unlike external hose designs that easily get hit and damaged by materials, our grapple adopts a fully enclosed oil circuit layout with built-in high-pressure hoses. The protected pipeline structure eliminates collision damage from falling stones and scrap materials during daily work, and greatly extends the service life of hydraulic pipelines. The closed circuit also maintains stable hydraulic pressure during continuous operation, ensuring consistent gripping force for every work cycle.
Daily Maintenance Tips To Extend Service Life
Even the most durable excavator grab attachments require proper routine maintenance to keep stable performance and avoid premature wear. Follow these simple routines to maximize the service life of your equipment.
- Lubricate pivot points on schedule. The built-in oil channels work best with regular grease replenishment. Add lubricating grease to all pivot pins before each shift to reduce friction and prevent dust from entering the rotating gaps.
- Inspect hydraulic seals and hoses regularly. Check for oil leakage around the cylinders and hose connections every week. Replace worn seals in time to avoid larger hydraulic system failures.
- Check jaw wear plates periodically. Inspect the wear condition of the jaw plates after large projects. You can repair minor wear by overlay welding, or replace individual wear plates directly instead of replacing the entire grapple.
- Maintain the slewing motor and brake system. Check the rotary motor oil level and braking performance monthly. Stable braking performance ensures safe operation during heavy load lifting.
The YG hydraulic excavator grapple delivers the durability, grip, and precision needed for demanding material handling applications. NM500 steel construction provides wear resistance and strength with lower weight. The Swiss-import rotary motor delivers smooth 360° rotation with a braking function. The 42CrMo alloy steel pins with built-in oil passages extend service life. The honed tube cylinder with HALLITE seals maintains consistent clamping force. The closed hydraulic circuit and built-in cylinder design protect the system from damage and contamination.
If you need a hydraulic excavator grapple that handles scrap, stone, and timber with consistent performance, the YG series provides reliable, proven results. Contact us with your excavator model and material types. We will recommend the right model for your operation. Get a free quote for your excavator grab attachments today.
