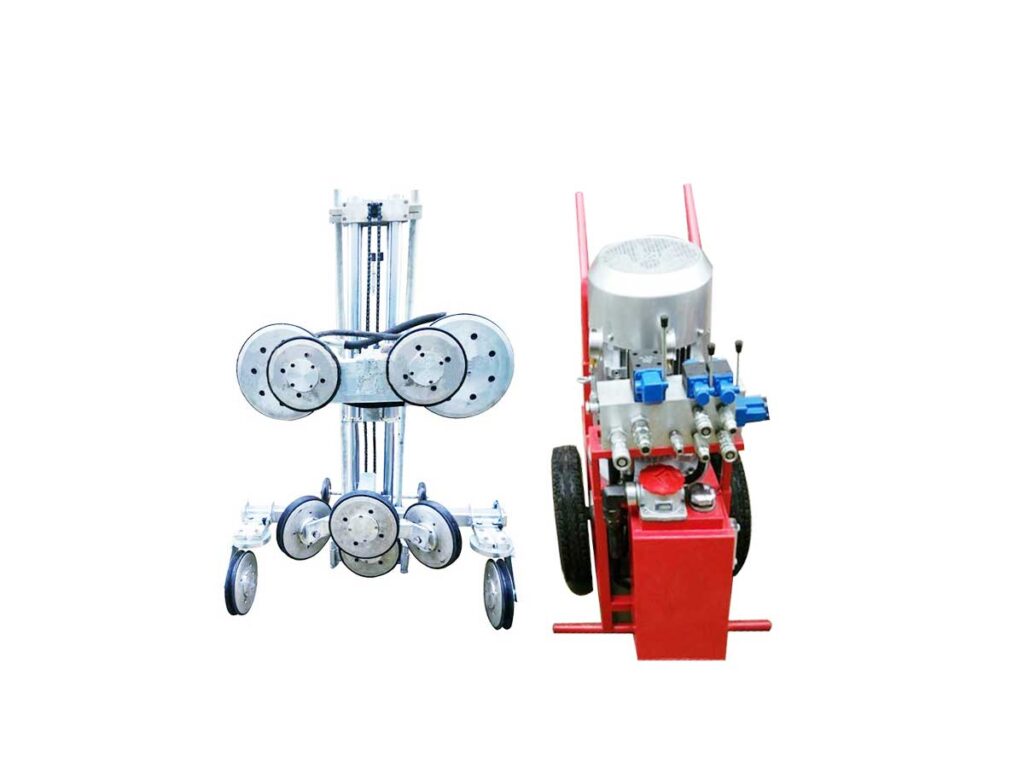

If you’ve struggled with loud, destructive jackhammers that crack intact building structures during renovation or bridge repair, a diamond wire cutting saw is your ideal vibration-free cutting solution. This all-hydraulic machine uses high-speed diamond-embedded wire to slice thick reinforced concrete, steel beams and underwater piles without shock damage to reserved structural parts. It combines a 22/25KW hydraulic power pack and wire saw rack, supporting a maximum 18m wire length to handle super-thick cross-section work. New contractors often search for a reliable diamond wire saw for sale to replace outdated impact demolition gear on their job sites. Civil teams working on pier removal rely on a stable wire saw for concrete units to finish static dismantling within tight project deadlines. Site forecasters reference real diamond wire saw cutting efficiency data to arrange daily construction schedules accurately.
Diamond Wire Cutting Saw Technical Parameters:
| Wire Saw Wheel | Parameters | Hydraulic Pump Station | Parameters |
| Wire Drive Mode | hydraulic | Rated Output Power | 22/25KW |
| Model Type | HM-40/80 | Working Voltage | 380v 50Hz |
| Minimum Input Power | 25HP/33HP | Hydraulic Pump Station | Gear pump |
| Output Shaft Speed | 350/940/1300r/min | Motor Working Flow | 40-100L/min |
| Maximum Wire Length | 18m | Working Pressure | 15-20Mpa |
| Feeding Method | Fully hydraulic | Oil Tank Volume | 16L |
| Wire Saw Wheel | 64kg | Weight | 98kg |
| Motor Weight | 13kg | Dimension(mm) | 650*550*1150 |
| Cutting Type | Transverse and longitudinal cutting | ||
How Does the Diamond Wire Cut Through Reinforced Concrete?
The cutting action of a diamond wire cutting saw is straightforward but effective. The hydraulic pump station generates oil pressure that drives a motor, which turns a drive wheel. The drive wheel moves a continuous loop of diamond wire. Guide wheels direct the wire around the structure being cut.
The diamond beads on the wire do the work. Each meter of wire carries 40 diamond-impregnated beads. As the wire moves at high speed, these beads grind through concrete and rebar. The cutting action is gradual but relentless—the wire keeps moving until the cut is complete.
This approach has a major advantage over blade cutting: the wire can be routed around the structure. The operator can cut from virtually any angle—vertical, horizontal, or angled. This flexibility is essential for complex demolition, underwater work, and cutting thick sections that would exceed the reach of any blade.
Why Replace a Blade Saw with a Diamond Wire Cutting Saw?
Blade saws are effective for shallow cuts on accessible structures. But they have limitations that a wire saw for concrete overcomes.
- Depth Limitation vs No Limitation: A blade saw is limited by the blade diameter. A 1200mm blade cuts about 500mm deep. To cut deeper, the operator needs to make multiple passes or use different equipment. A diamond wire cutting saw has no depth limit. The wire can be routed around the structure, allowing cuts of any thickness.
- Vibration vs Static Cutting: Blade saws create vibration as the blade rotates. This vibration can damage surrounding structures. A diamond wire saw cutting equipment operates with minimal vibration. The wire moves smoothly through the material, causing no structural shock.
- Straight Cut vs Any Angle: Blade saws cut in straight lines. The machine cuts from any angle. The wire can be routed vertically, horizontally, or around corners. This versatility is essential for complex demolition work.
- Underwater vs Surface Only: Blade saws do not work underwater. A diamond wire cutting saw operates underwater with the same efficiency as above water. For marine work and underwater demolition, the wire saw is the only practical option.
What Wears Out on a Diamond Wire Cutting Saw?
Every cutting tool has wear parts. The YG series has two main consumables that require regular attention.
The Diamond Wire: Wire is the primary consumable. Each meter of wire cuts approximately 2.5-3 m² of concrete, depending on the material hardness and rebar density. Heavily reinforced concrete consumes more wire. As the wire wears, the cutting speed decreases. When cutting speed drops significantly, replace the wire.
The Rubber Guide Wheels: The guide wheels have rubber rings that protect the wire and guide its direction. These rubber rings wear over time. Worn rubber rings can cause the wire to slip or track incorrectly, affecting cut quality. Inspect the rubber rings regularly and replace them when worn.
What to Stock: For any job site, stock spare diamond wire and spare rubber rings for the guide wheels. Having these parts on site prevents downtime from worn consumables. The cost of consumables is a normal part of diamond wire cutting operations, and planning ahead reduces unexpected delays.
Step-by-Step Simple Operation Flow For First-Time Operators
Many new construction workers worry complex hydraulic equipment requires professional training to operate, but the diamond wire cutting saw features a simplified workflow that anyone can master within 30 minutes of guided practice:
- Fix the wire saw rack firmly against the target cutting surface, and install idler pulleys to lock the diamond wire’s travel track.
- Connect the 4 hydraulic hoses between the pump station and wire rack; check all joints to prevent oil leakage during high-pressure operation.
- Thread the diamond wire through all guide pulleys; use the matched hydraulic crimp pliers to connect wire segments with free-supplied connectors.
- Turn on the three-phase 380V power supply, adjust hydraulic pressure between 15–20Mpa based on wall thickness and material hardness.
- Turn on continuous water cooling to wash concrete slurry off the wire beads, start the hydraulic motor and begin steady cutting.
- After finishing work, flush the whole machine with clean water, wind the diamond wire onto the storage pulley and store all accessories in the dedicated toolbox.
Diamond Wire Saw For Sale – Factory Direct Price
YG Machinery manufactures entry-friendly and industrial-grade hydraulic diamond wire cutting saw full kits with clear numerical performance advantages, complete standard accessories and two interchangeable diamond wire options for concrete, metal and underwater static demolition work. Our technical team provides beginner-focused operation training, wire selection guidance and customized model matching based on your project scale, cutting material and construction terrain. Send your project details to our sales team today to receive full parameter sheets, wire consumption estimates and a personalized equipment quotation tailored to new demolition business operators.
