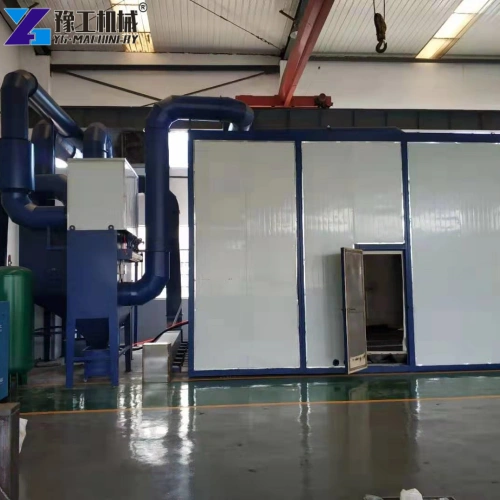

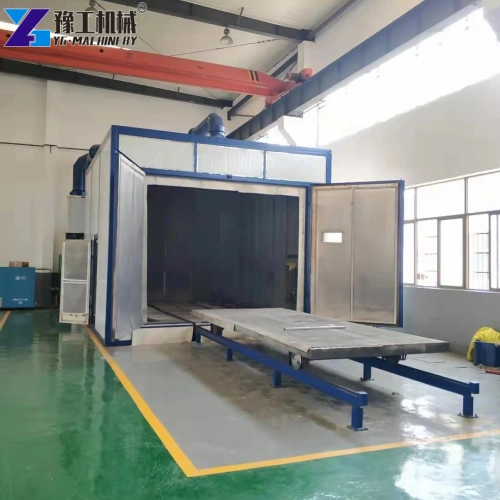

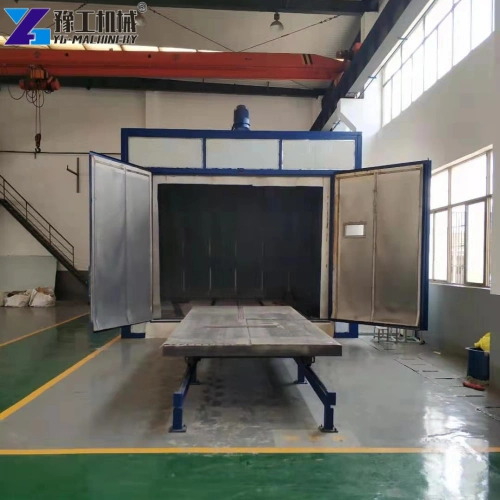

The pneumatic recovery sandblasting booth, also known as the wind-powered circulating recovery sandblasting booth, is a fully enclosed, negative-pressure-driven, and environmentally friendly surface treatment equipment with automatic abrasive circulation. Its core components include the booth body, honeycomb-type suction floor, negative pressure recovery system, sand and dust separator, cartridge dust collector, sandblasting main unit, and electrical control system. Unlike traditional mechanical recovery sandblasting booths (which rely on screw conveyors, bucket elevators, etc.), it eliminates the need for mechanical conveying structures. It relies on the negative pressure of a fan to complete the abrasive recovery, sorting, and circulation, while simultaneously achieving efficient dust filtration. It is an integrated device that combines high-efficiency sandblasting, environmental compliance, and low-cost operation and maintenance. If you still have questions about selection, please contact us directly; our professional team will tailor a suitable pneumatic recovery sandblasting booth procurement plan for you.
SandBlasting Room Parameters
| Size of Blasting Room | Size of workpieces | Blasting Gun Qty |
| 6000×6000×5000mm | 3000×3000×2500mm | 2 |
| 6000×6000×6000mm | 3000×3000×3500mm | 2 |
| 8000×6000×5000mm | 5000×3000×2500mm | 2 |
| 8000×6000×6000mm | 5000×3000×3500mm | 2 |
| 10000×6000×6000mm | 7000×3000×3500mm | 2 |
| 15000×6000×6000mm | 12000×3000×3500mm | 2 |
| 15000×8000×6000mm | 12000×5000×3500mm | 2 |
| 18000×8000×6000mm | 15000×5000×3500mm | 4 |
| 18000×10000×8000mm | 15000×7000×5500mm | 4 |
Working Principle of Pneumatic Recovery Sandblasting Booth
The pneumatic recovery sandblasting booth follows a fully enclosed closed-loop process: sandblasting operation → abrasive collection → negative pressure conveying → sand and dust separation → abrasive circulation → dust purification. No dust escapes throughout the process, and the abrasive recovery rate exceeds 95%. The specific steps are as follows:

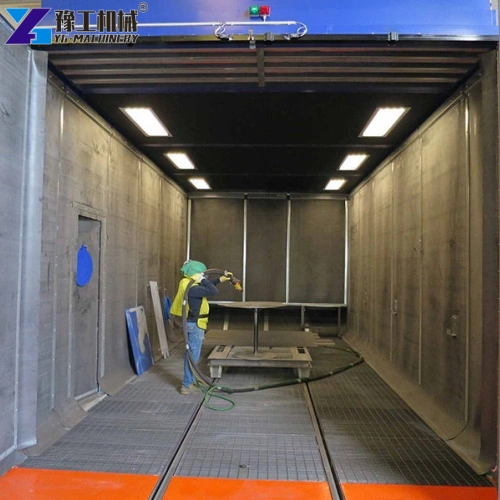

- Sandblasting Operation: The operator holds a spray gun and uses compressed air to propel abrasive materials (brown corundum, quartz sand, glass beads, etc.) at high speed onto the workpiece surface, completing processes such as rust removal, deburring, and roughening.
- Abrasive Collection: After blasting, the abrasive, impurities, and dust fall into the honeycomb-type sand-absorbing floor at the bottom of the booth. The honeycomb hoppers are evenly distributed to ensure no dead corners and avoid abrasive residue.
- Negative Pressure Conveying: A high-pressure centrifugal fan generates strong negative pressure, drawing the abrasive and dust mixture from the honeycomb floor into the recovery pipe. The entire process is sealed and leak-free.
- Abrasive and Dust Separation: The mixed airflow enters the cyclone separator, where centrifugal force separates “useful abrasive” from “broken abrasive, scale, and dust.” Qualified abrasive falls into a storage tank for recycling.
- Dust Purification: The separated dust-laden airflow enters a cartridge dust collector. The filter element filters out fine dust. A portion of the clean air is discharged outdoors (emission concentration <20mg/m³, meeting national standards), while the remainder returns to the chamber, balancing the airflow and reducing energy consumption.
- Circulating Operation: Qualified abrasive in the storage tank re-enters the sandblasting machine, completing a closed-loop cycle and significantly reducing abrasive loss.
YG Pneumatic Recovery Sandblasting Booth’s Core Advantages
As a professional surface treatment equipment manufacturer, YG has been deeply involved in the R&D and manufacturing of sandblasting equipment for many years. Its pneumatic recovery sandblasting booths boast significant advantages in technology, processes, configuration, and after-sales service, distinguishing them from ordinary competitors:
- Core Technology Upgrade: Utilizing a high-density honeycomb suction floor and a variable frequency negative pressure fan, the negative pressure suction is adjustable, adaptable to different abrasives and workpieces, with a stable recovery rate exceeding 98%. The optimized sand and dust separator structure provides higher separation precision, eliminating fine sand loss.
- High-Quality Materials: The booth body uses thickened color steel sandwich panels, offering heat and sound insulation, corrosion resistance, and non-deformation, with a service life exceeding 15 years. The honeycomb floor uses wear-resistant steel plates, quenched for impact resistance and wear resistance, ensuring long-term use without deformation.
- Strong Customization Capabilities: Supports customized dimensions, automation, and functions. The booth’s length, width, and height can be customized according to workpiece dimensions; optional features include trolley conveyors, automatic spray guns, and remote control systems; customized abrasive and pressure solutions are available for special workpieces (such as thin-walled parts and precision parts).
- Simple infrastructure and short installation cycle: No deep pits required (only a shallow foundation of 0.8-1.5m is needed, or direct ground installation is possible), reducing infrastructure costs by 50% and shortening the installation cycle to 3-5 days for rapid production.
- Wide adaptability: Can handle small to medium-sized workpieces, irregularly shaped parts, and thin-walled parts; compatible with various abrasives such as brown fused alumina, quartz sand, glass beads, and plastic shot; manual/semi-automatic operation is available, with PLC intelligent control, one-button start, simple operation, and a quick learning curve for beginners.
Frequently Asked Questions about Pneumatic Recovery Sandblasting Booths
1. Can steel shot be used in pneumatic recovery sandblasting booths?
A: Not recommended. Pneumatic recovery sandblasting booths are suitable for lightweight abrasives such as brown fused alumina, quartz sand, and glass beads; steel shot has a high density and heavy weight, making it difficult to recycle stably under negative pressure suction, easily leading to low recovery rates and fan overload. Mechanical recovery sandblasting booths are preferred for steel shot.
2. Does the equipment require regular maintenance? What is the maintenance cycle? A: Regular maintenance is required, but it’s simple and easy to operate:
- Daily: Clean debris from the honeycomb floor and check for wear on the spray guns and sand pipes.
- Weekly: Clean the cartridge dust collector and tighten pipe and fan bolts;
- Monthly: Check fan bearings and separator wear parts, and replace them promptly;
- Annual: Conduct a comprehensive equipment overhaul and replace aging seals and vulnerable parts.
3. Does a containerized sandblasting booth require environmental permits?
A: Yes. Whether fixed or mobile, any sandblasting operation must comply with local environmental requirements and obtain an environmental impact assessment (EIA) permit. YG equipment meets dust emission standards and can provide environmental testing reports to assist customers with the permit application process.
4. How long is the equipment warranty? What happens if there is a malfunction?
A: Core components have a 1-year warranty and lifetime maintenance; 24-hour after-sales hotline, fault response time ≤ 2 hours, minimizing customer downtime losses.
Pneumatic Recovery Sandblasting Booths – YG is the Top Choice
Against the backdrop of increasingly stringent environmental policies and manufacturing upgrades, traditional high-pollution, high-energy-consumption surface treatment equipment is gradually being phased out. Pneumatic recovery sandblasting booths, with their core advantages of being environmentally friendly, efficient, low-maintenance, easy to install, and cost-effective, have become the mainstream choice for industrial surface treatment.
As a professional manufacturer of pneumatic recovery sandblasting booths, YG adheres to the principles of “technological innovation, quality first, and service paramount.” From product development and manufacturing to installation and after-sales service, we strictly control the entire process, providing customized solutions to help customers achieve efficient production, environmental compliance, and cost reduction. Whether it’s a small processing plant or a medium-sized manufacturing enterprise, whether it’s a fixed operation or mobile construction, YG pneumatic recovery sandblasting booths can be precisely adapted to provide reliable support for industrial surface treatment. Contact us now!
