A wood chipper mulcher uses a high-speed rotating cutter head or drum roller, combined with the shearing action of flying blades and bottom blades, to cut woody materials such as branches, trunks, and bark into flakes or granules. High-quality wood chips can be used for organic mulch, biomass pellet fuel, edible mushroom substrate, or paper pulp. Unlike small metal shredders that use impact crushing to process thin scrap steel, wood chipper mulchers rely on the cutting action of sharp blades. Therefore, the blade material (such as high-carbon steel or hard alloy) and the precision of the blade gap adjustment directly determine the equipment’s lifespan and output quality. In addition, we also offer wood powder mills (producing powder) and pellet mills, which can further process pulverized materials into powder or granules. Please feel free to contact us if you have any needs.
Wood Chipper Mulcher Machine Parameter
| Model | YG-6130 | YG-6145 |
| Motor Type | Diesel motor, electric start | Diesel motor, electric start |
| Capacity | 2 tons/hour | 5 tons/hour |
| Dimensions | L2300*W1300*H1800 | L3200*W1700*H2400mm |
| Knife Roller Diameter | 300 mm | 500 mm |
| Equipped with power | 23.6KW diesel engine | 75KW (102 hp) diesel engine |
| Host speed | 2600r/min | 2500r/min |
| Number of blades | 4 moving knives, 1 stationary knife | 4 moving knives, 1 stationary knife |
| Maximum broken branch diameter | 130mm | 250mm |
| Feed throat size mm | 300*180 | 450*380 |
| outlet direction | The 360-degree quick adjustment device | 360-degree quick adjustment device, outlet angle adjustment, outlet nozzle, height adjustment |
Working Principle of a Wood Chipper Mulcher
The wood chipper mulcher employs a cutting + crushing + screening process. Its structure includes a feeding system, crushing chamber, rotor, blades/hammers, screen, and discharge device. Specific operation is as follows:
- Feeding and Coarse Cutting: Material is fed into the hopper. A hydraulically forced feeding roller stably feeds loose branches and trunks into the crushing chamber. A high-speed rotating cutter disc (with metal blades) first cuts larger pieces into 5-10 cm wood chips to prevent jamming.
- Screening and Discharge: Wood chips meeting the particle size requirements pass through the screen (aperture size can be changed) and are discharged by air blowing or gravity. Unqualified coarse materials remain in the chamber for repeated crushing until they meet the standards, ensuring a uniform output.
- Safety Protection: Equipped with a load-sensing system, the machine automatically stops and reverses in case of blockage to prevent motor burnout; a rebound baffle at the feed inlet prevents material splashing and ensures operational safety.
Main Types of Wood Chipper Mulchers
1. By Processing Capacity (Core Selection Dimension)
- Small Machines (0.5-2 tons/hour): Lightweight and easy to move, suitable for cork/fresh branches with a diameter ≤10 cm, ideal for backyards, orchards, and small gardens. Recommended: YG6130.
- Medium-sized machines (2-5 tons/hour): Balanced power, suitable for both hard and soft wood, processing timber with a diameter of 10-20 cm. Mainstay models for municipal landscaping and small to medium-sized biomass plants. Recommended models: YG6130, YG6140.
- Large machines (5-15 tons/hour): High capacity, large diameter, capable of breaking 20-25 cm hardwood/logs. Used in large forest farms, biomass power plants, and furniture factories. Recommended model: YG6145.
2. By mobility method

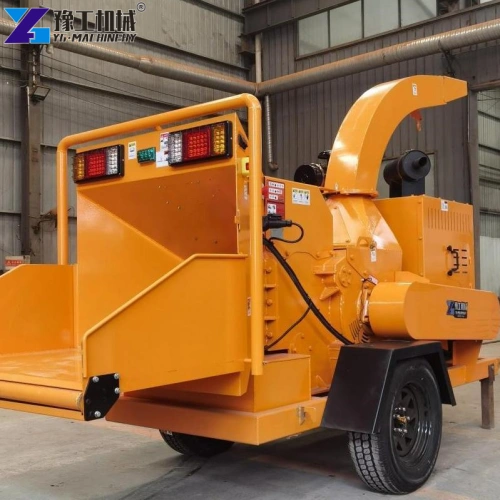

- Wheeled/towed: Equipped with tires and a tow rack, can be mounted on a truck for mobile operations, suitable for multi-point mobile work (landscape, road maintenance).

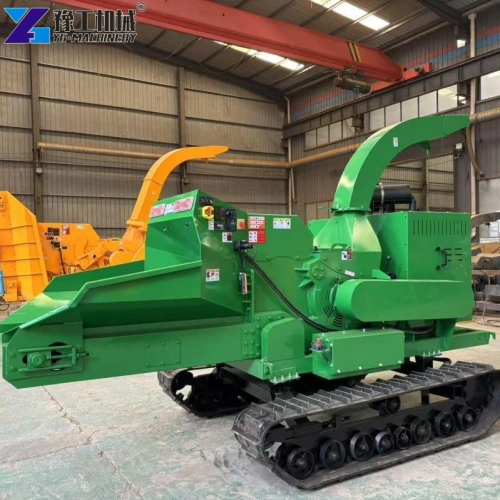

- Tracked: Tracked wood chipper mulchers have good traction and stability, adaptable to complex terrain.
3. By power source
- Electric: 380V industrial electricity, low noise, environmentally friendly, low cost, suitable for urban areas, factories, and other locations with available power.

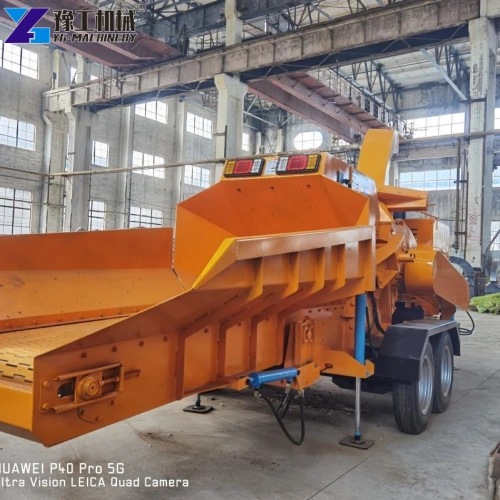

- Diesel-powered: No external power supply required, designed for outdoor/mountainous areas, can start at -20°C, and is flexible in relocation.
Key Considerations for Choosing a Wood Chipper Mulcher
1. Choose the Right Power Type: Electric vs. Fuel-Powered
- Electric Wood Chipper Mulchers: Advantages include quiet operation, environmental friendliness, no emissions, simple operation, affordable price, low maintenance costs, and lightweight design, making them suitable for home use, community yards, and small indoor/outdoor spaces. Disadvantages include reliance on a power source, the need for an extension cord for long-distance operation, and limited power output.
- Fuel-Powered Wood Chipper Mulchers: Available in gasoline and diesel models, these offer strong power, are not limited by power supply, can be used outdoors, have strong shredding capabilities, and are highly efficient, making them suitable for orchards, construction sites, forest farms, and other outdoor scenarios with limited power and large-scale waste processing. Disadvantages include slight noise and emissions, and slightly higher price and maintenance costs.
2. Check the feed inlet diameter to match the fineness of the material to be crushed.
The feed inlet diameter determines the maximum diameter of branches the machine can crush, a core practical parameter: Small household wood chipper mulchers typically have a 4-6cm inlet diameter, suitable for thin branches and flower twigs; orchard models commonly use a 6-10cm diameter inlet, capable of processing regular fruit tree branches; large industrial models can reach diameters of 12cm or more, easily handling thick trunks and hardwoods. Never force a small machine to crush coarse branches, as this can easily cause jamming, motor burnout, and blade damage.
3. Pay attention to the crushing effect and output particle size
A high-quality wood chipper mulcher crushes evenly, leaving no long residue, and produces fine and uniform output particles. Most models support adjustable output size, allowing you to grind into fine wood chips or coarse wood residue as needed. If you need the wood chips for fermenting into organic fertilizer or for covering flowers with soil, select the fine output mode; if you only need waste disposal, regular crushing is sufficient, adapting to different recycling needs.
4. Machine Quality and Safety Design
High-quality wood chipper mulchers feature a thickened steel plate body, ensuring stability and shock resistance, preventing shaking during operation. The core blades are made of high-strength, wear-resistant alloy steel, offering sharpness, durability, and a longer service life, preventing chipping. They must also have comprehensive safety features, including anti-jamming, anti-rebound, and overload shutdown protection to prevent safety hazards during operation, making them safer for novice operators.
5. Portability and Maintenance
Smaller models should prioritize mobile designs for easy movement and storage, saving space. Industrial models emphasize structural stability and ease of maintenance. Choose models with universal parts and simple maintenance, such as easy blade sharpening, oil changes, and filter cleaning, saving time and effort in later maintenance.
Manufacturer Selection-YG
When purchasing a wood chipper mulcher, consider the material diameter, production capacity requirements, site conditions, and budget. Prioritize manufacturers with mature technology, durable core components, and comprehensive after-sales service. Here, we recommend choosing YG Machinery. YG Machinery has been deeply involved in wood shredding equipment for many years, offering a full range of small, medium, and large wheeled models. Its core blades are made of imported alloy steel (HRC55+), featuring a hydraulic forced feeding design to prevent jamming, and an intelligent load protection system, adaptable to various geological and construction scenarios worldwide. Contact us now for the latest product information and pricing – act now!
