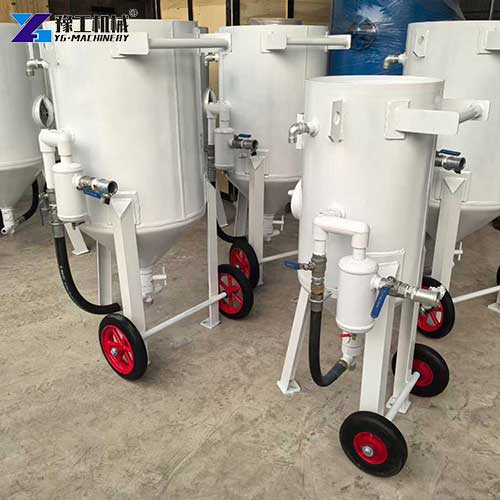

The small sand blasting machine serves as a practical surface processing tool for metal treatment projects. It accelerates surface cleaning by shooting high-speed abrasive particles onto workpieces. This equipment strips rust, oxide layers and surface contaminants, roughens material surfaces and improves coating adhesion. Contractors and workshop operators widely deploy this unit for pretreatment before painting, spraying and electroplating. As a flexible alternative to bulky stationary equipment, it fits limited operation spaces and mobile construction tasks.
Many buyers compare this model with an industrial sand blasting machine. While large industrial units target continuous heavy-duty factory production, the small sand blasting machine balances power and mobility. For small workshops, maintenance teams and field construction crews, this unit delivers sufficient blasting capacity without occupying excessive space. Portable sandblasting equipment like this eliminates installation barriers, allowing operators to conduct treatment directly on site instead of transporting heavy workpieces.
YG Small Sand Blasting Machine Parameters:
| Model | YG-600 | YG-700 | YG-800 | YG-1000 |
| Volume(m3) | 0.26 | 0.3 | 0.6 | 1 |
| Height | 1150 | 1250 | 1700 | 2000 |
| Sand peening capacity | 5-10(m3/h) | 6-11(m3/h) | 10-12(m3/h) | 10-30(m3/h) |
| Air source configuration | 3(m2/min) | 3(m2/min) | 3.5(m2/min) | 4(m2/min) |
| Control System | Air control | Air control | Air control | Air control |
| Diameter | 600mm | 700mm | 800mm | 1000mm |
Why Choose YG Small Sand Blasting Machine?
1. Robust Q235B Carbon Steel Construction
All tank bodies adopt Q235B carbon steel plates with customized thickness according to different models. Small diameter versions use 5mm plates, medium models adopt 6mm plates, and large specifications upgrade to 8mm thick steel. Premium raw materials prevent tank deformation and air leakage under continuous high-pressure operation. The structure withstands harsh outdoor working environments and extends overall service life, separating our equipment from low-cost thin-walled alternatives.
2. Optimized Air Consumption & Stable Blasting Efficiency
The industrial sand blasting machine runs stably under 0.8MPa working pressure with air consumption ranging from 4 to 6 m³/min. It achieves 20 to 30 m² hourly blasting output. It is important to note that larger tank specifications do not equal higher blasting efficiency. The working speed depends mostly on workpiece geometry. Flat plates support faster processing, while irregularly shaped components require longer blasting cycles. When selecting matching air compressors, buyers should choose units with a minimum 4 m³/min air output to guarantee consistent blasting force.
3. Ergonomic Single-Person Operation Design
We equip the portable sandblasting equipment with pneumatic control valves mounted on the blasting gun. One single operator can start and pause blasting directly at the working point. This design removes the need for an extra staff member to control switches beside the tank. Compared with basic manual valve versions that require two workers, this configuration cuts labor demand and simplifies daily operation.
4. Flexible Mobility Layout For Different Models
Models ranging from Φ400 to Φ700 come fitted with movable wheels for easy position adjustment. Larger specifications from Φ800 to Φ1200 adopt sturdy support legs. These bigger units weigh over 300kg, and fixed legs maintain stability during long blasting operations. This differentiated design lets customers select the proper layout according to their frequent moving demands.
5. Complete Matching Accessories & Wide Abrasive Compatibility
We supply a full set of supporting parts including blasting guns, replaceable nozzles from 6mm to 12mm, and hoses in 25mm and 32mm sizes. Operators can use multiple abrasives including corundum, quartz sand and copper slag. Keep in mind the abrasive particle diameter cannot exceed 1.2mm to guarantee smooth circulation inside the tank. The flexible abrasive selection helps users control operation costs based on different cleaning standards.
5 FAQs About Small Sand Blasting Machine
A: The machine itself does not contain power drive systems. It relies on an air compressor to provide compressed air for blasting operations. The air compressor parameters will directly affect the final cleaning results.
A: Tank volume covers multiple specifications from 0.15 m³ up to 1 m³. Small tanks hold 100kg abrasive materials, while large versions can store up to 800kg abrasives. A larger tank allows longer continuous blasting without frequent refilling, yet it does not raise blasting speed.
A: We provide quotations based on your selected model, control mode and supporting accessory list. Share your working pressure, workpiece types and daily working hours, and we will send targeted offers.
A: Operators can use brown corundum, quartz sand, copper slag and dust-free sand. Ensure all abrasive particles are smaller than 1.2mm to prevent pipeline blockage.
A: The machine requires 4-6 m³/min at 0.8 MPa. A minimum 4 m³/min compressor is recommended. Larger compressors provide higher pressure and better efficiency.
Get Your Sand Blasting Machine Price From YG Machinery
The YG series delivers seven models from 400mm to 1000mm diameter, covering capacities from 100kg to 1000kg of abrasive media. Every machine uses Q235B carbon steel construction with plate thickness matched to the model for durability. The pneumatic valve option allows single-operator control, cutting labor costs in half. The smaller models (400- 700 mm) come with wheels for mobility around the workshop. The larger models (800- 1000 mm) feature sturdy legs for stable operation. All models operate on 4-6 m³/min air consumption with 5-30 m²/h blasting efficiency.
If you need a small sand blasting machine that delivers reliable surface preparation for your workshop or job site, the YG series provides proven performance. Contact us with your typical workpiece size, surface condition, and daily volume. We will recommend the right model for your operation. Get a free quote for your sand blasting machine price today.
