This article introduces the YG-120KW CCS2 DC electric vehicle charging pile exported to Italy. This equipment complies with IEC61851 and ISO15118 EU standards and is suitable for charging operations in commercial parking lots, intercity service areas, and fleet depots. It boasts a 95% conversion efficiency, IP54 dust and water resistance, and an OCPP intelligent backend, supporting plug-and-play and dynamic power allocation. Its comprehensive safety protection system perfectly adapts to the Italian power grid and local renewable energy policies. For charging station expansion or bulk equipment procurement needs, please contact us for customized solutions and offshore quotes.
DC Charging Pile Parameters
| Product number | YG-60KW | YG-80KW | YG-120KW | |
| Detailed specification | rated power | 60KW | 80KW | 120KW |
| Charging equipment | User Interface | 7-inch LCD color display touchscreen | ||
| installation | Floor-standing/Down in down out | |||
| Routing mode device size | 635*423*1600(mm) | |||
| Input voltage | AC380V±20% | |||
| Input frequency | 45~65Hz | |||
| The output voltage | 200-750VDC | |||
| Single gun output current range | 200V-500V | 200V-500V | 200V-500V | |
| The output voltage | 0-90A | 0-120A | 0-160A | |
| Single gun output current range | 200V-750V | 200V-750V | 200V-750V | |
| The output voltage | 0-60A | 0-80A | 0-107A | |
| Charging equipment | Single gun output current range | 0-112A | 0-150A | / |
| Cable length | 5m | |||
| Electrical index | Measurement accuracy | Level 0.5 | ||
| Current limit protection value | ≥110% | |||
| Voltage regulation accuracy | ≤±0.5% | |||
| Steady flow accuracy | ≤±1% | |||
| Ripple coefficient | ≤±0.5% | |||
| effectiveness | ≥94.5% | |||
| Power factor | ≥0.99 (50% load or more) | |||
| Harmonic content THD | ≤5% (50% load or more) | |||
| Feature design | HMI | 7-inch LCD color display touch screen, LED indicator | ||
| Charging mode | Auto full / fixed power / fixed amount / fixed time | |||
| payment method | Credit card payment / APP payment /scan code payment | |||
| Communication Interface | Ethernet 2/3/4G (optional) | |||
| Safety design | Executive standard | GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008 | ||
| security function | Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over-temperature protection, low-temperature protection, insulation monitoring protection, polarity reverse connection protection, lightning protection, emergency stop protection, leakage protection | |||
| Environmental indicators | Operating temperature | -25°C~+50°C | ||
| Working humidity | 5%~95% non-condensing cream | |||
| Working elevation | <3000m | |||
| Protection level | IP54 | |||
| cooling method | Forced-air cooling | |||
| Noise control | ≤60dB | |||
| MTBF | 100,000 hours | |||
EV Charging Piles Sold to Italy
Client and Project Background:
This client is a professional charging operation service provider in the Lombardy region of northern Italy, specializing in commercial parking and intercity charging networks along the Milan and Lake Como areas. They undertake investment and operation of charging stations for shopping mall parking lots, logistics fleets, and highway rest areas. In recent years, Italy has implemented the 2035 ban on the sale of gasoline and diesel vehicles, with the government subsidizing public DC electric vehicle charging pile infrastructure. The slow charging speed of older AC charging piles cannot meet the charging needs of pure electric trucks and long-distance passenger vehicles. The client plans to deploy high-power DC fast charging in bulk to enhance the competitiveness of their charging stations.
After comparing the qualifications, certifications, and operating condition compatibility of three domestic and foreign equipment manufacturers, the customer purchased YG-120KW dual-gun CCS2 European standard DC electric vehicle charging piles in bulk. The first batch of six units was deployed for expansion of the shopping mall’s open-air charging station, with a subsequent order for 12 more units reserved. The customer’s main business is B-end monthly charging for fleets and C-end individual customer QR code billing, requiring strict performance indicators for equipment stability, compatibility with European communication protocols, and durability in low-temperature and high-humidity environments.
Key Challenges in On-Site Operation:
- Stringent Compliance Certification Thresholds: Italy enforces the CEI64-8 local electrical standard, mandating compatibility with ISO15118 plug-and-play and OCPP operating protocols. Ordinary domestic non-standard equipment cannot be accepted for grid connection.
- Climate and Grid Fluctuation Interference: The northern region experiences winter temperatures as low as -5°C, and spring and autumn are rainy and humid, resulting in large fluctuations in grid voltage. Ordinary charging piles are prone to module power reduction, communication failures, and condensation leakage at the charging gun heads.
- Site Space and Load Limitations: Shopping malls have limited power distribution capacity; multiple charging piles operating at full capacity simultaneously can easily trigger grid overload protection. The compact parking spaces necessitate a compact model with dual-gun shared power and a small footprint.
- Risk of Delayed Overseas Maintenance Response: Local repair and parts delivery times are long in Europe. High equipment failure rates and prolonged site downtime will directly impact charging revenue. Customers urgently need a manufacturer-supported remote diagnostic and rapid spare parts replenishment system.
YG Customized Overall Solution:
Addressing the four major pain points of Italian regulations, climate, power distribution, and maintenance, YG Machinery delivers a complete 120kW DC charging pile solution adapted to European standards:
- Equipment Hardware Performance Matching: The YG-120KW commercial car charging stations adopt a dual-gun dynamic power distribution system, compatible with all local pure electric passenger vehicles and light trucks. The overall power conversion efficiency is 95%, with a power factor of 0.99, significantly reducing reactive power loss on the power grid. The cabinet has IP54 protection, and the internal potted power modules are low-temperature and moisture-proof, allowing for stable start-up and operation at -20℃. It comes standard with a CCS2 European standard charging gun with built-in temperature sensing and automatic current reduction protection against over-temperature.

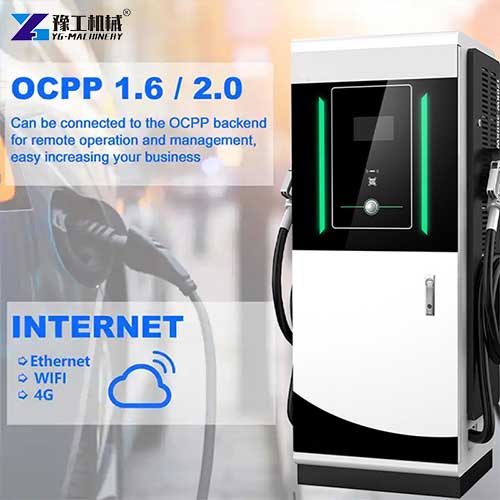

- Software Protocol Compliance Customization: The device comes pre-installed with ISO15118 plug-and-play software and the OCPP1.6J open protocol, enabling seamless integration with the customer’s existing operational backend. The entire unit has complete CE certification documentation, assisting customers in quickly passing grid connection acceptance.
- One-stop overseas service from our technical team: Before shipment, we pre-test the Italian power grid voltage and communication frequency bands and include a fully English operation manual and wiring diagrams. We arrange engineers to remotely guide local electricians in completing basic installation and wiring; we establish a dedicated overseas after-sales channel for 48-hour remote troubleshooting; and we reserve spare parts in a sea freight warehouse for core vulnerable components to shorten repair waiting times. We also support localization customization of the device logo, interface language, and payment interface.
- Optimized structural durability: The cabinet is made of thickened cold-rolled flame-retardant steel plate with multiple protections: overvoltage, undervoltage, leakage, short circuit, reverse battery connection, and lightning protection (six levels of safety protection), meeting stringent European electrical safety testing standards.
Actual Performance After Three Months of Operation:
Data from the deployment of 6 YG120KW DC electric vehicle charging piles far exceeded customer expectations:
- Significantly improved charging efficiency: each unit serves an average of 32 vehicles per day, a 5-fold increase in charging speed compared to the original 22KW AC charging piles; customer traffic at the mall charging station increased by 62%.
- Zero downtime in low-temperature and rainy environments; no abnormal load reduction in power modules; stable online communication throughout the day, with no disconnections or billing errors.
- Dynamic power allocation perfectly adapts to the mall’s existing power distribution capacity; multiple charging piles operating simultaneously do not trigger power outages, saving on expensive transformer expansion and upgrade costs.
- Remote diagnostics resolves 90% of common minor faults, requiring only one simple part replacement; the overall equipment failure rate is significantly lower than that of other brands previously tested by the customer.
- Plug-and-play functionality, card swiping, and QR code payment options adapt to local user habits; monthly subscription fleets automatically recognize vehicle IDs for billing, reducing operational and management labor costs.
Customer Testimonials:
The Italian Charging Operations Manager stated, “Italy has very high standards for new energy infrastructure approval, and many Chinese devices get stuck at the certification and protocol compatibility stage. The YG 120KW DC electric vehicle charging pile has complete certifications, and its CCS2 interface, ISO15118, and OCPP are all perfectly compatible with our operating system. Even in low temperatures and rain during winter, the equipment operates stably, and the dual-gun power distribution has saved us a significant amount of money on power distribution upgrades. Most reassuringly, the YG technical team provided full support throughout the process, with rapid remote debugging responses, eliminating the need to rely on expensive local repairmen. The profitability of these charging piles is faster than expected, and we will continue to choose YG for the next 12 units in our highway service area.”
EV Charging Pile For Sale – YG Machinery
As a rapidly growing new energy market in Europe, Italy has stringent requirements for the compliance, intelligence, and environmental adaptability of DC electric vehicle charging piles. Equipment without mature overseas compatibility is highly susceptible to acceptance failures, operational malfunctions, and other losses. As a leading manufacturer of charging piles, YG has deep expertise in developing European standard equipment, forming a complete closed loop encompassing hardware performance, software protocols, certifications, and overseas operation and maintenance.
The YG-120KW flagship model is precisely matched to mainstream overseas scenarios such as commercial parking lots, logistics stations, and highway service areas. Compared to imported European and American brands, YG commercial car charging stations offer lower procurement costs, faster after-sales response, and support for deep localization customization. For European charging operators, EPC contractors, and equipment traders, choosing YG DC charging piles easily meets the electrical regulations of various countries while ensuring long-term charging revenue through stable, low-failure equipment, making it a cost-effective and reliable choice for fast-charging infrastructure development in Europe. Contact us now!
