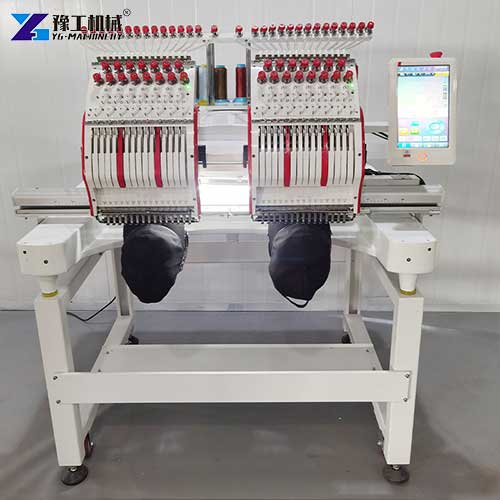

A 2-head embroidery machine is a mid-range commercial embroidery solution that delivers dual-station production capacity while keeping a compact footprint and accessible operational requirements. It supports flat embroidery, cap embroidery and finished garment embroidery such as T-shirts and hoodies, making it a versatile workhorse for custom apparel businesses and small-scale manufacturing workshops. Unlike entry-level single-head units that limit daily output, this model doubles production capacity without requiring double the floor space or operator attention, making it an ideal upgrade for growing embroidery businesses that need more volume without investing in large multi-head industrial lines.
2 Head Embroidery Machine Technical Specifications:
| Parameter | YS-1201CT (Single Head) | YS-1202CT (Two Heads) | YS-1203 (Three Heads) |
| Heads | 1 | 2 | 3 |
| Needles | 9 / 12 / 15 optional | 12 | 12 (9/15 optional) |
| Working Area | 360 × 510 mm | 400 × 500 mm | 400 × 450 mm |
| Max Speed | 1,000 RPM (adjustable) | 1,000 RPM (adjustable) | Flat: 1,000 RPM; caps/garments: 800 RPM |
| Control System | Dahao A15 | Dahao A15 | Dahao A15 |
| Display | Colour LCD touch, 1280×800 | Colour LCD touch, 1280×800 | 10 inch true colour touch LCD |
| Package Size (L×W×H) | 92×88×85 cm (wooden) | 1.37×1.12×0.92 m (wooden) | 2.07×1.12×1.01 m (wooden, ~2.3 CBM) |
| Gross Weight | 210 kg | 420 kg | 650 kg |
| Voltage | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz | 110 220V |
| Spindle Motor | — | — | Servo motor |
| Rotary Hook | Standard | Standard | High quality hook |
Applications of 2 Head Embroidery Machine
Corporate Branding and Promotional Products. Custom embroidery remains the standard for corporate apparel, team uniforms, and promotional merchandise. A double-head embroidery machine produces consistent results across large orders, maintaining brand identity across thousands of pieces.
Sporting Goods and Team Apparel. Team uniforms require logos, numbers, and names on jerseys, jackets, and caps. The dual-head design allows simultaneous embroidery on multiple items, speeding up production for team orders.
Custom Gift and Personalization Shops. Personalized gifts, monogrammed items, and custom designs require flexibility. The machine handles both bulk orders and individual custom pieces with equal ease.
Hat and Cap Manufacturers. The 270-degree cap frame and 400×500mm working area make the YS-1202CT suitable for hat shops, promotional product companies, and sporting goods brands
Uniform Suppliers. Schools, hospitals, and corporations order large volumes of embroidered uniforms. The dual-head design doubles output for bulk orders without adding labor.
Event and Hospitality Embroidery. Hotels, restaurants, and event companies require branded staff uniforms, table linens, and promotional items. The machine handles the variety of products in these industries.
5 Advantages of YG 2 Head Embroidery Machine
For growing custom apparel businesses, a programmable embroidery machine delivers a strong balance of output, versatility and ease of use, with several key performance advantages that directly improve daily productivity.
- Parallel production capacity: Both heads run the same design simultaneously, effectively doubling output for identical designs compared to a single-head unit, which drastically cuts production time for bulk repeat orders.
- Automatic color change functionality: The machine switches between thread colors automatically according to the programmed design, eliminating manual thread changes between color blocks and reducing operator intervention during runs.
- Thread break detection: Built-in sensors detect thread breakage immediately and pause operation, preventing large sections of mis-stitched design and reducing material waste from defective finished pieces.
- Multi-language operation interface: The system supports over a dozen global languages including English, Spanish, Arabic, Russian and more, so operators from different regions can learn to use the equipment quickly.
- USB pattern import: Users load new design files directly via USB drive, with no complex wired connection required, which simplifies workflow for shops that handle frequent custom design changes.
Comparing Single Head vs Two Head: A Practical Decision
Many embroidery shop owners wonder whether to upgrade to a two-head machine or simply buy a second single-head machine. The difference comes down to workflow.
Two separate single-head machines:
- Two operators required (or one operator running back and forth)
- Two control panels to manage
- Two power connections and two workstations
- Double the maintenance
- Double the floor space
One two-head machine:
- One operator required
- One control panel manages both heads
- One power connection and one workstation
- Single maintenance schedule
- Compact footprint
The YS-1202CT 2-head embroidery machine consolidates two heads into a single, efficient workflow. One operator loads two garments, the machine stitches both, and the operator unloads both. The operator is not running between machines—they are standing at one workstation, managing two heads.
The programmable embroidery machine design means the operator does not need to be an expert. The Dahao A15 control system handles the complexity. The operator focuses on loading and unloading.
Selecting the Right Double Head Embroidery Machine
Before investing in a double head embroidery machine, consider these factors:
- Production volume. If you are consistently running a single-head machine for more than 8 hours a day, you need more capacity. A 2-head embroidery machine doubles your output without adding labor.
- Product types. The YS-1202CT handles caps, shirts, jackets, and home textiles. The 400×500mm working area and 270-degree cap frame cover most commercial applications
- Design complexity. If your designs regularly use 6-10 colors, the 12-needle configuration saves significant time compared to machines with fewer needles.
- Space constraints. The YS-1202CT packages two heads into a single compact frame. If floor space is limited, this is a significant advantage over two separate single-head machines.
- Budget. A programmable embroidery machine represents a larger upfront investment than a single-head machine. But the per-piece cost drops significantly—one operator, one machine, two times the output.
Commercial Embroidery Machine For Sale
Investing in a 2-head embroidery machine is a logical next step for any custom embroidery business that has outgrown entry-level single-head equipment but does not yet need the scale of a full multi-head industrial line. It delivers meaningful production growth, broad application versatility and user-friendly operation, all in a compact, shop-friendly footprint. If you are evaluating a commercial embroidery machine for sale to grow your custom apparel or promotional product business, YG offers a proven, cost-effective dual-head solution built for reliable daily production. Reach out to our team today to discuss your production needs and request detailed specifications for your business.
