A reliable waste wood shredder turns garden trimmings, tree branches and assorted wood debris into usable shredded material right at your work location. Operators across landscaping, forestry and municipal sectors count on this machinery to cut down bulky organic waste volume, opening practical pathways for further material reuse. Processed output can feed into organic soil amendment, biomass feedstock and raw inputs for panel manufacturing. Operators can run this unit on dozens of different raw inputs including dry and wet branches, corn stalks and reed stems, with finished fragment size adjustable via screen components to match end‑use requirements. Many job sites favour a mobile wood chipper layout so teams move the unit between multiple work zones without extra handling for raw waste stockpiles.
Waste Wood Shredder Technical Specifications:
| Model | YG-6130 | YG-6145 |
| Motor Type | Diesel motor, electric start | Diesel motor, electric start |
| Capacity | 2 tons/hour | 5 tons/hour |
| Dimensions | L2300*W1300*H1800 | L3200*W1700*H2400mm |
| Knife Roller Diameter | 300 mm | 500 mm |
| Equipped with power | 23.6KW diesel engine | 75KW (102 hp) diesel engine |
| Host speed | 2600r/min | 2500r/min |
| Number of blades | 4 moving knives, 1 stationary knife | 4 moving knives, 1 stationary knife |
| Maximum broken branch diameter | 130mm | 250mm |
| Feed throat size mm | 300*180 | 450*380 |
| outlet direction | The 360-degree quick adjustment device | 360-degree quick adjustment device, outlet angle adjustment, outlet nozzle, height adjustment |
How the YG Waste Wood Shredder Works?
The YG series waste wood shredder operates on a straightforward cutting principle. The diesel engine drives a heavy-duty knife roller at high speed—2,600 RPM on the YG-6130 and 2,500 RPM on the YG-6145.

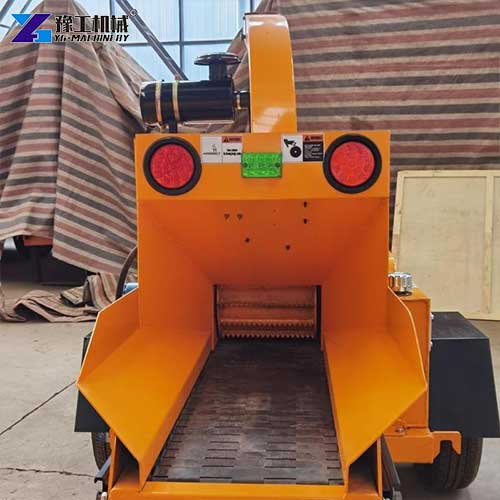

Material enters through the feed throat. The four moving knives, mounted on the rotating roller, and the one stationary knife create a scissors-like cutting action. The knives shear through branches, trunks, and wood waste with each rotation. The resulting chips pass through a screen and discharge through the adjustable outlet.
The process is continuous. One operator can feed material while the machine processes it. The 360-degree adjustable outlet means the operator can direct chips into a truck or stockpile without moving the machine.
For large operations, the chain-plate conveyor feed option automates the feeding process. This reduces labor and improves throughput.
Feeding and Mobility Options
The YG series industrial wood shredder offers multiple configurations to match different operating conditions.
Feeding methods:
Standard gravity feed. Material drops into the feed throat. Suitable for most applications and smaller branch sizes.

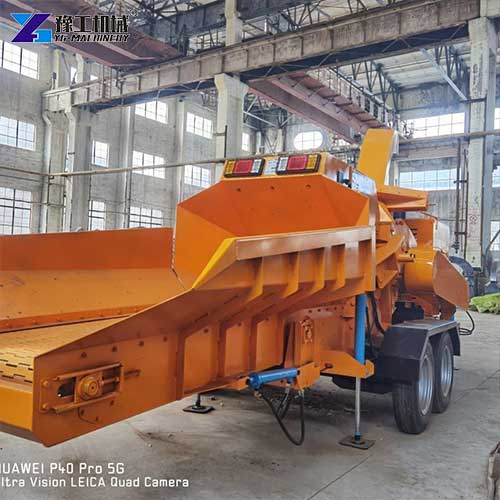

Chain-plate conveyor feed. A powered conveyor carries material into the cutting chamber. More efficient for larger volumes and difficult materials. The conveyor feeding is more convenient, stable, and efficient, adapting to special material types that standard feeding cannot handle.
Mobility options:

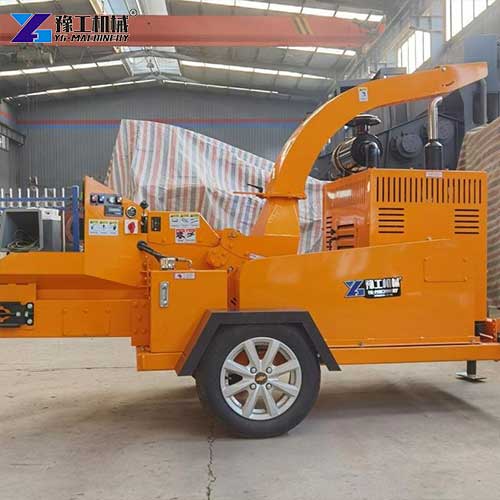

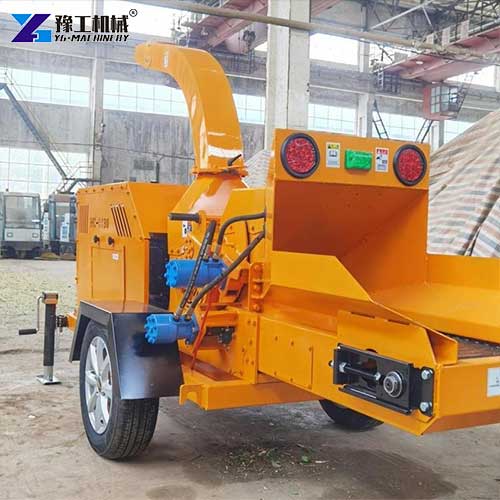

Wheeled models. More flexible and easier to move on paved surfaces. Suitable for operations that move between multiple sites on flat terrain.

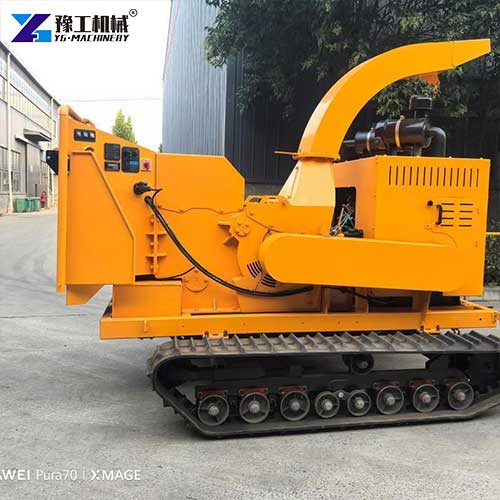

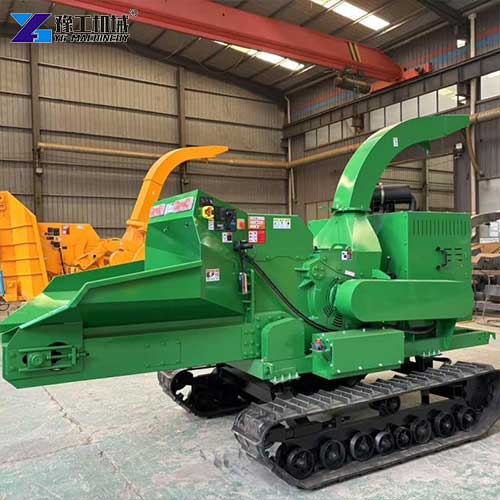

Tracked models. Better traction and stability on rough terrain, mud, and slopes. The tracked undercarriage provides excellent grip and stability, adapting to complex road conditions.
The right combination of feeding method and mobility determines how efficiently the machine works in your specific operating environment.
50+ Material Types: What the Industrial Wood Shredder Can Process
The YG series waste wood shredder handles over 50 different material types. This versatility means one machine serves multiple applications across different seasons and industries.
- Green waste: Wet branches, fresh tree trimmings, prunings from orchards and vineyards.
- Dry wood: Dry branches, dead trees, firewood offcuts, fallen timber.
- Agricultural waste: Corn stalks, coconut branches, bamboo, reeds, sugarcane bagasse.
- Industrial wood waste: Wood pallets, construction timber, furniture scraps, MDF and plywood offcuts
- Urban green waste: Municipal tree trimmings, park maintenance waste, roadside vegetation clearing.
Output size is adjustable through interchangeable screens. Switch screens to produce fine mulch for landscaping, medium chips for composting, or coarse chips for biomass fuel. This flexibility allows operators to respond to changing market demands without changing machines.
The industrial wood shredder is an environmentally friendly device that processes garden and wood waste, turning waste into valuable resources and reducing environmental impact.
What to Consider When Choosing a Waste Wood Shredder?
Before selecting a waste wood shredder, consider these factors:
- Material type. What are you processing? Hardwoods (oak, maple, hickory) are denser and require more power than softwoods (pine, fir, cedar). The YG series handles both. For branches with metal impurities like nails, choose a machine with heavy-duty steel blades.
- Daily volume. Processing capacity determines which model fits your operation. The YG series ranges from 2 to 8+ tons per hour. Smaller operations processing less than 5 tons per day may choose the YG-6130. Municipal yards, landscaping companies, and biomass producers processing 10+ tons daily need the larger models.
- Output size requirements. Different applications require different chip sizes. Fine mulch for garden beds needs small particles; coarse chips for biomass fuel can be larger. The YG series uses interchangeable screens to adjust output size without changing the machine.
- Mobility needs. Will the machine stay in one location or move between sites? Wheeled models are more flexible on paved surfaces. Tracked models provide better traction on rough terrain.

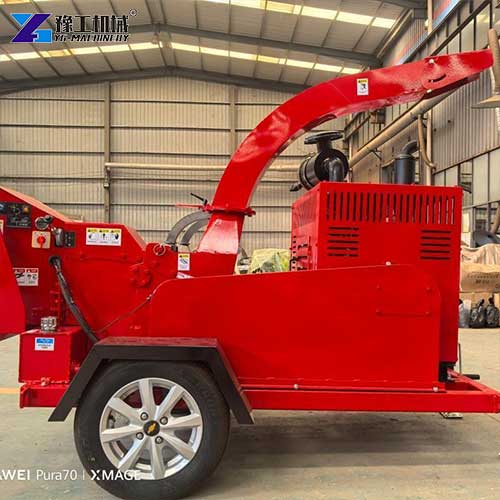

- Power source. Diesel engines provide independent operation without external power, making the YG series suitable for remote job sites. Mobile wood chippers are available with diesel or electric engines, mounted on trucks, trailers, or containers.
Wood Chipper Mulcher For Sale
The global wood chipper market is growing at 4.5% CAGR. As landfill costs rise and biomass energy demand increases, the value of processing wood waste on-site will only grow. If you need a mobile wood chipper that turns wood waste into valuable material, the YG series provides proven performance. Contact us with your material type, daily volume, and output requirements. We will recommend the right wood chipper mulcher for sale for your operation. Get a free quote today.
