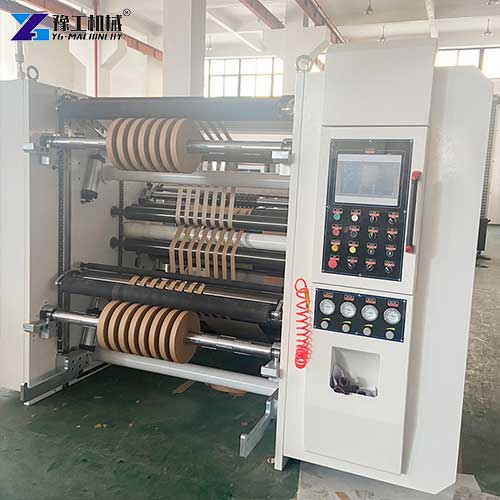

A large roll of paper arrives at the factory. It is too wide for the next production step. The customer needs specific widths. The material must be cut cleanly, rewound tightly, and delivered without defects. A paper roll slitter is the machine that does this job. It takes a large master roll and slits it into multiple narrower rolls in a single pass. The machine unwinds the large roll, cuts it to the required widths, and rewinds it onto smaller cores—all in one continuous operation.
The YG series paper roll slitting machine offers three models covering widths from 1300mm to 1800mm. Each model handles rolls up to 1400mm in diameter and slits down to 30mm minimum width. Running speeds reach 350 meters per minute. For converters, printers, and packaging manufacturers looking for a paper slitting and rewinding machine that delivers consistent quality across long production runs, the YG series provides a reliable, cost-effective solution.
YG Paper Roll Slitter Parameters:
| Model | YG- 1300 | YG- 1600 | YG- 1800 |
| Max width | 1300mm | 1600mm | 1800mm |
| Max Diameter for unwinding | ￠1400mm | ￠1400mm | ￠1400mm |
| Min width of slitting | 30mm | 30mm | 30mm |
| Max Diameter of rewinding | ￠1000mm | ￠1000mm | ￠1000mm |
| Speed | ≤350m/min | ≤350m/min | ≤350m/min |
| Total Power | 24kw | 26kw | 30kw |
| Power supply | 380V/50hz | 380V/50hz | 380V/50hz |
| Weight | 4000kg | 4500kg | 5500kg |
| Overall dimension(LxWxH) | 3300x3150x1930(mm) | 3300x3450x1930(mm) | 3300x3650x1930(mm) |
Materials the Paper Roll Slitter Handles
- Paper and Paperboard: Kraft paper, white cardboard, duplex board, and offset paper are the most common materials. The machine handles them without adjustment, producing clean edges and consistent roll density.
- Coated and Laminated Papers: Coated paper, release paper, and PE-coated paper all run through the machine. The slitting system handles the different surface properties without delaminating or damaging the coating.
- Film and Foil: PVC film, aluminum foil, and PET film are also suitable. The machine’s tension control system accommodates the different stretch characteristics of film materials.
- Specialty Substrates: Metallized paper, thermal paper, and label stock all process cleanly. The machine’s precision slitting system handles the requirements of each material.
The ability to run multiple material types on a single paper roll slitter means converters do not need separate machines for different substrates. This is particularly valuable for short-run production where the cost of setting up different machines would be prohibitive. For converters processing multiple substrate types daily, the machine’s material flexibility directly supports their operational efficiency.
6 Advantages of YG Paper Roll Slitter
The standout ROI of each paper roll slitting machine originates from six core optimized performance and operational design upgrades that resolve common production bottlenecks for converting plant operators:
1. Ultra-precise slitting tolerance control: Standard cutting precision reaches ±0.2mm, with an optional upgraded ±0.15mm tolerance for high-end label and thin film applications. Every finished roll comes out neat, tight and uniformly wound without uneven edge winding that wastes raw material during secondary printing processes.
2. Smooth burr-free cutting results: Precision-engineered rotary cutting blades deliver clean, smooth cut edges with zero rough burrs on paper, plastic and aluminum foil substrates. Minor edge irregularities can be fully eliminated with simple blade gap adjustment without full machine downtime.
3. Stable continuous long-shift operation: The machine’s reinforced mechanical frame and synchronized drive system eliminate vibration during maximum 350m/min speed runs. Every unit undergoes full factory test running and customer confirmation before shipment to guarantee zero unexpected shutdowns during commercial production shifts.
4. Single-person simplified operation workflow: Intuitive centralized control panel design removes the need for multi-operator staffing. A single factory worker can complete raw roll loading, width setting, slitting parameter adjustment and finished roll unloading without additional labor support, drastically cutting hourly labor overhead.
5. Wide universal substrate compatibility: The adjustable unwinding tension system accommodates thick kraft paper, thin coated art paper, waterproof laminated film, rigid PVC plastic and thin aluminum foil without custom mechanical reconfiguration between material changeovers.
6. Comprehensive long-term aftersales protection: All machine frames and core drive components carry a full 1-year manufacturer warranty, paired with permanent lifetime technical support and spare parts supply to eliminate costly extended production downtime after the warranty period expires.
4 Applications of Paper Roll Slitting Machine
- Paper packaging & printing manufacturing: Primary processing tasks include slitting large master kraft paper, coated art paper, self-adhesive sticker paper and laminated coated film into custom narrow widths for shopping bag stock, label base stock, food packaging wrapping and office paper rolls. Small workshops use the 1300mm model, while large printing mills select the 1600 or 1800 wide-format variants for high-volume continuous production lines.
- Plastic film & PVC flexible packaging production: Operators process wide PVC plastic rolls, transparent packaging film and protective wrapping film into smaller retail-sized rolls for food packaging, consumer goods wrapping and industrial surface protection film. The adjustable unwinding tension prevents thin plastic film stretching or tearing during high-speed slitting cycles.
- Aluminum foil metal material processing: Wide industrial aluminum foil master rolls are slit and rewound into compact finished rolls for food catering foil, pharmaceutical packaging and electronic shielding applications. The heavy-duty 1800mm model’s high-torque drive system handles thick metal foil without drive slippage during long shift runs.
- Custom specialty converting workshops: Mixed batch production facilities handling alternating paper, plastic and foil orders rely on the machine’s fast material changeover design to switch substrate types without lengthy mechanical reconfiguration, ideal for job-shop printing and packaging service providers taking varied small-batch client orders.
6 Frequently Asked Questions About Paper Roll Slitter
A: The machine delivers ±0.2mm accuracy, with achievable tolerance of ±0.15mm under optimal conditions. This precision ensures consistent roll widths for downstream processes.
A: Yes. The machine produces smooth, even cuts without burrs or rough spots. If any edge quality issue appears, adjusting the knife position resolves it quickly.
A: Yes. The machine is built for stable operation. It is tested before shipment to verify its performance, ensuring consistent results shift after shift.
A: Yes. One person can handle the entire operation—loading, slitting, rewinding, and unloading. The controls are designed for straightforward operation.
A: Installation takes 5-8 days from the machine’s arrival. This includes positioning, connection, alignment, and commissioning.
A: Yes. The machine can be modified with a transformer for different voltage requirements.
Paper Slitting Machine Price – YG Machinery Factory Price
If you are looking for a paper slitting and rewinding machine that delivers consistent precision across long production runs, the YG series offers reliable performance. Contact us with your material types and production requirements. We will recommend the right machine for your operation. Get a free quote for your paper slitting machine price today.
