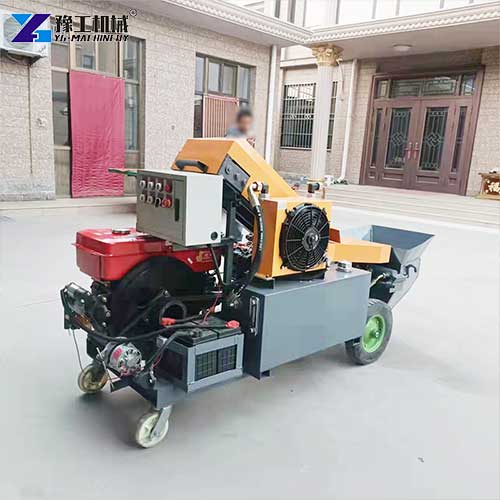

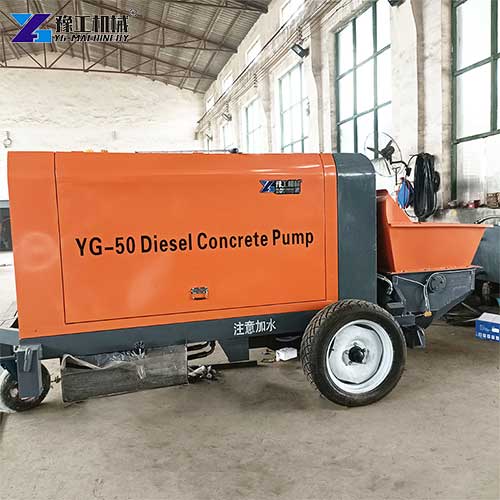

Concrete pumping equipment is a construction machine composed of a pump body and conveying pipelines, which delivers concrete continuously through pipelines via hydraulic pressure. It mainly includes gate valve type and S-valve type configurations; another common format mounts the pump unit on a truck chassis with a placing boom to form a concrete pump truck. For small to medium construction projects, a portable concrete pumping machine delivers flexible on-site deployment without the need for large truck-mounted units, and adapts to sites with limited access space easily.
Concrete Pumping Equipment Parameters:
| Spec/Model | YG-10 | YG-20 | YG-30 | YG-40 |
| Work efficiency | 6m³/h | 12m³/h | 15-18m³/h | 20-22m³/h |
| Motor power | 15kw | 22KW | 37KW | 45KW |
| Working pressure | 15MPa/10MPa | 18MPa/12MPa | 18MPa/15MPa | 23MPa/15MPa |
| Aggregate size | 0.5-1.5cm | 0.5-2cm | 0.5-2cm | 0.5-2cm |
| Vertical/Horizontal conveying distance | 20m/50m | 40m/80m | 80m/100m | 120m/260m |
| Diameter of conveying pipe | 80mm | 80mm | φ80(100)mm | φ100(80)mm |
| Weight | 600KG | 1600kg | 2200kg | 2400kg |
| Dimensions | 1800*700*1100mm | 3400x1200x1600mm | 3800x1500x1600mm | 4000x1500x1550mm |
| Standard configuration | 10m steel pipe, 10m hose | 40m steel pipe, 10m hose | 90m φ80 steel pipe, 10m hose | 120m φ80 steel pipe, 10m hose |
Core Structural & Technical Features of Concrete Pumping Equipment
This line of concrete pumping equipment adopts an S-tube distribution valve design, which supports smooth pumping of small aggregate concrete and mortar materials with minimal clogging risk.
- Variable piston main oil pump: The main pump uses a variable displacement piston pump, delivering high working efficiency and strong output pressure to maintain stable delivery even at maximum conveying distance.
- Three-circuit hydraulic system: The hydraulic system adopts independent three-circuit control for reliable operation. The wear plate and cutting ring use hard alloy material, which delivers excellent abrasion resistance and extended service life under heavy daily use.
- Dual-cylinder piston pumping mechanism: The pumping unit adopts a double-cylinder piston structure, which provides advanced performance and excellent delivery continuity for uninterrupted construction workflows.
How Far Can You Pump? Understanding the Numbers
Concrete pumping distance is not just about the machine—it is about the pipe, the mix, and the conditions. The YG series specifications provide clear guidance.
For the YG-10, vertical distance is 20 meters and horizontal is 50 meters. For the YG-20, those numbers double to 40 meters vertical and 80 meters horizontal. The YG-30 reaches 80 meters up and 100 meters across. The YG-40 is the distance champion: 120 meters vertical and 260 meters horizontal.
But here is the practical reality: These are maximum distances under ideal conditions. Pipe diameter, concrete slump, aggregate size, and the number of bends in the pipeline all affect actual performance. For most jobs, a conservative estimate is 70-80% of the maximum. A YG-40 rated for 120 meters vertical will reliably pump 90-100 meters in real-world conditions.

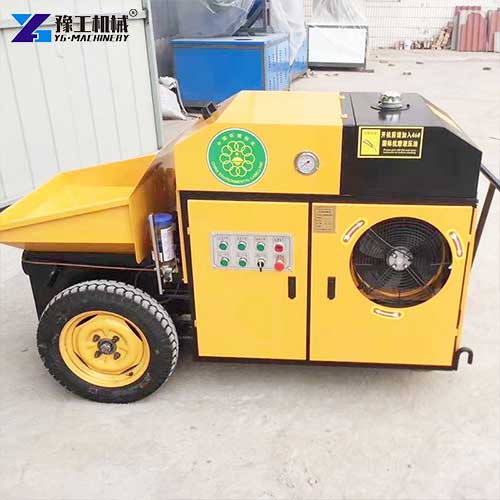

When selecting a trailer-mounted concrete pump, you need to match the pump’s distance capability to your project’s requirements. Pumping too close to the maximum puts stress on the equipment and increases the risk of blockages. Leaving a 20-30% margin is standard practice.
Pipeline Configuration & Matching Principles
Reasonable pipeline configuration directly affects conveying smoothness, wear speed and clogging probability, and is a detail often overlooked during equipment selection.
- Diameter matching: Match pipe diameter to your typical aggregate size. For mixes with aggregate below 1.5cm, 80mm diameter pipes deliver sufficient flow with lower material waste. For mixes with aggregate up to 2cm, 100mm diameter pipes reduce clogging risk during high-pressure delivery.
- Pipeline layout: Minimize the number of bends and vertical joints in the pipeline layout. Each bend creates additional pressure loss and wear points, so using straight pipe runs as much as possible preserves conveying pressure and extends pipe service life.
- Hose application: Reserve flexible hoses only for the end pouring section and small-angle adjustment positions. Long sections of hose cause greater flow resistance and faster wear, so they are not recommended for long-distance main pipeline runs.
A trailer-mounted concrete pump paired with properly configured pipelines can achieve the best balance of conveying efficiency and component durability.
Hardened Components That Extend Service Life
The YG series portable concrete pumping machine uses wear-resistant materials in critical areas. These components determine how long the machine runs between maintenance intervals.
- Hardened cutting rings and wear plates. These components handle the abrasive action of concrete moving through the S-valve. They are made from cemented carbide—the same material used in cutting tools for machining. Cemented carbide resists wear far better than standard steel, providing extended service life. The wear plates and cutting rings are designed for easy replacement, minimizing downtime during maintenance.
- The hardened cutting ring and wear plate have a proven service life. With proper maintenance and using the machine within its rated capacity, these components require replacement far less frequently than the rubber seals and steel parts used in gate-valve pumps. This is one of the key advantages of S-valve technology over older designs.
- High-quality seals and gaskets. The hydraulic system uses seals that resist leakage and maintain pressure. Seals are considered consumable parts—they require periodic replacement as part of routine maintenance. The YG concrete pumping equipment series uses seals that are readily available from industrial suppliers.
- Durable cylinder construction. The pump cylinders withstand the pressure and abrasion of continuous concrete pumping. Hardened cylinder surfaces cut wear caused by aggregate friction. The cylinder seals allow easy access and replacement when needed.
- What this means for the operator: Less downtime for repairs, lower maintenance costs, and consistent performance over the life of the concrete pumping equipment. The wear components are available from YG’s spare parts network, ensuring quick replacement when needed.

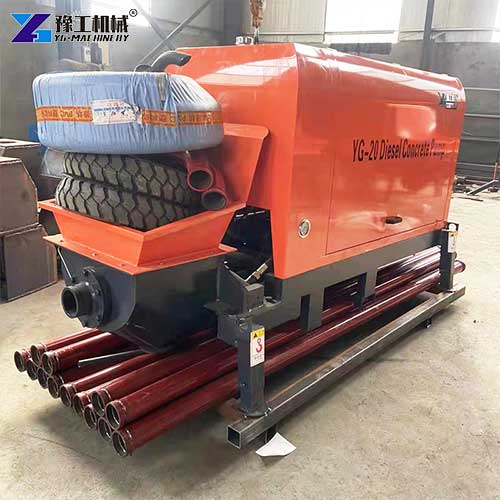

Concrete Pump Machine For Sale
Investing in properly sized concrete pumping equipment improves pouring efficiency and reduces on-site labor demand for all types of construction projects. Whether you need a compact unit for small renovation jobs or a higher capacity system for medium building projects, there is a matched configuration to fit your operational needs.
If you are looking for durable concrete pump machine for sale options, or want to learn more about how a trailer-mounted concrete pump can optimize your construction workflow, reach out to our team today. We will provide detailed specification sheets and professional configuration recommendations, along with transparent information for every concrete pump machine for sale in our product lineup.
