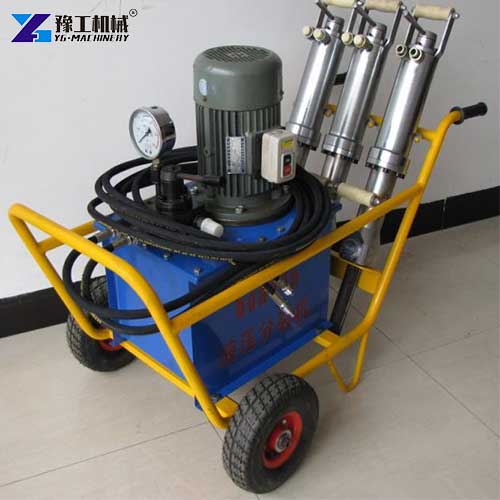

A hydraulic splitter for rock is dedicated static demolition machinery designed to fracture hard bedrock, natural quarry stone and reinforced concrete without explosive blasting. The complete system includes a hydraulic power pack, splitter wedge assembly and matched hydraulic splitting rods. Construction crews drill boreholes into target materials first, then insert the wedge unit into pre-drilled holes. Driven by high hydraulic pressure, the device generates powerful lateral thrust to split rigid materials steadily. It gains wide recognition among contractors for urban reconstruction, stone quarrying, trench digging and foundation engineering projects.
Hydraulic Splitter for Rock Technical Specifications
| Model | YG-250 | YG-350 | YG-450 |
| Wedge Length(mm) | 250mm | 350mm | 450mm |
| Piston Stroke(mm) | 90/220mm | 90/220mm | 90/220mm |
| Drilling Depth(mm) | >500mm | >700mm | >900mm |
| Punching Diameter(mm) | 42mm | 46mm | 46mm |
| Crack Width(mm) | 10-20mm | 10-20mm | 10-20mm |
| Cleavage Time(s) | 10-15/s | 10-15/s | 10-15/s |
| Splitting Force(T) | 500t | 800t | 800t |
| Weight(kg) | 240kg | 250kg | 260kg |
How Does a Hydraulic Splitter for Rock Work?
A rock splitter machine operates on a simple but powerful principle: converting hydraulic pressure into immense lateral force.

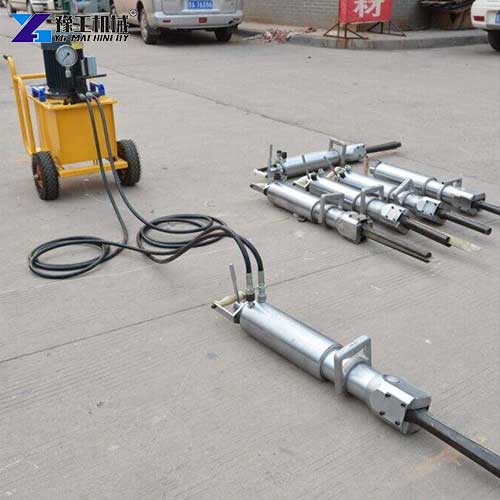

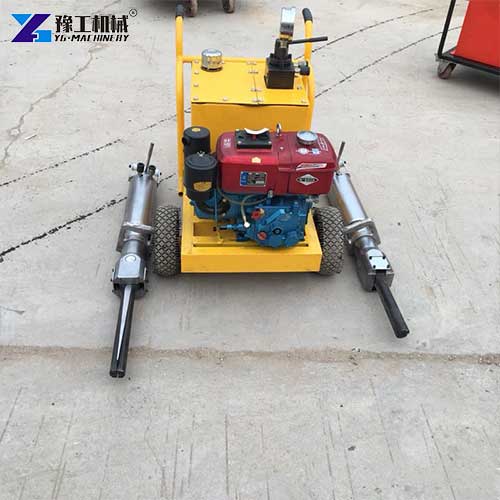

The system consists of three main components: a hydraulic power unit (pump), a control valve, and the splitter head assembly. The splitter head contains a central wedge flanked by two expanding pistons.
The wedge principle: The operator drills a hole into the material—typically 42mm or 46mm in diameter. The splitter head is inserted into the hole. Hydraulic pressure drives the wedge forward between the two pistons. As the wedge advances, it forces the pistons outward against the hole walls.

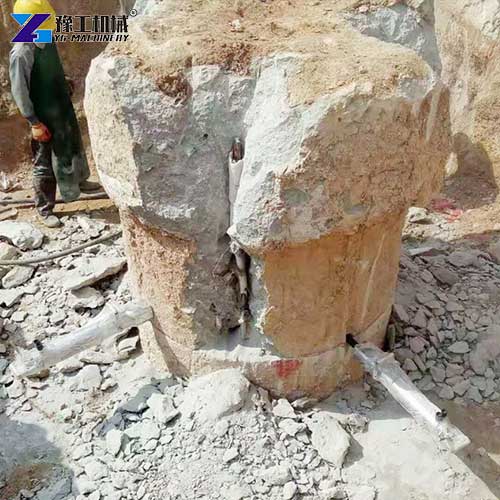

Static cracking: The lateral force generated by the pistons exceeds the tensile strength of the material. The rock or concrete splits along the line of least resistance. The process is silent, produces no vibration, and generates no flying debris.
The result: A clean, controlled split with minimal waste. The YG series achieves cycle times of just 10-15 seconds per split, making it highly productive for large-scale demolition and quarrying operations.
Where Professionals Use a Hydraulic Splitter for Rock?

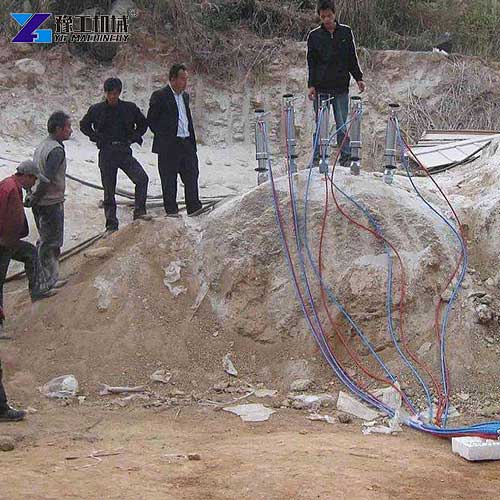

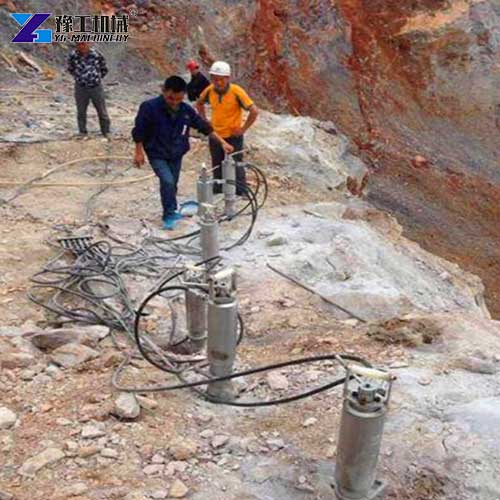

- Quarrying and Stone Extraction: Natural stone—granite, marble, limestone, sandstone—must be extracted in blocks without cracking or damaging the material. A stone splitter for sale that uses static hydraulic force splits the rock along natural cleavage planes, producing clean, usable blocks with minimal waste. Unlike explosives that shatter stone, the hydraulic splitter preserves the integrity of the material.
- Concrete Demolition and Renovation: Removing reinforced concrete structures—foundations, walls, bridge piers—requires controlled demolition. A hydraulic concrete splitter cracks concrete precisely along the desired line. No vibration means no damage to adjacent structures. No noise means work can continue in occupied buildings or residential areas.
- Tunnel and Underground Construction: Tunnel boring and underground excavation often encounter hard rock that crews must remove. A hydraulic splitter for rock operates in confined spaces where workers cannot use explosives and heavy equipment cannot reach. The splitter fits through narrow openings and operates effectively in restricted areas.
- Urban Demolition: Demolition in cities presents unique challenges: noise restrictions, vibration limits, dust control, and safety concerns. A rock splitter machine addresses all of these. It operates silently, produces no vibration, generates minimal dust, and poses no explosion risk. It is the preferred tool for demolition in densely populated areas, hospital zones, and around sensitive equipment.
- Underwater and Marine Construction: Hydraulic splitters are used for underwater rock splitting in harbor construction, pipeline trenching, and marine demolition. The hydraulic system operates effectively underwater, with no electrical hazards and no explosive risks.
The Static Advantage: No Vibration, No Dust, No Noise
The hydraulic splitter for rock operates on static hydraulic force, not impact. This fundamental difference creates several important advantages:
- No vibration. Jackhammers and breakers transmit vibration through the ground, potentially damaging adjacent structures. A hydraulic splitter produces zero vibration. You can work within centimeters of sensitive structures without risk.
- No noise. The splitting process is nearly silent. The hydraulic pump produces some noise, but the splitting itself is quiet. This allows work in noise-restricted areas, hospitals, schools, and residential neighborhoods.
- No dust. Traditional demolition methods generate clouds of dust. A hydraulic splitter produces minimal dust—only what is generated during drilling. The splitting itself creates no airborne particles.
- No flying debris. Explosives and breakers send fragments flying. Hydraulic splitting produces no projectiles. The material simply cracks and separates.
- The practical result: You can operate in environments where other methods are prohibited. Indoor demolition becomes feasible. Work in occupied buildings is possible. Urban projects proceed without complaints or regulatory issues.

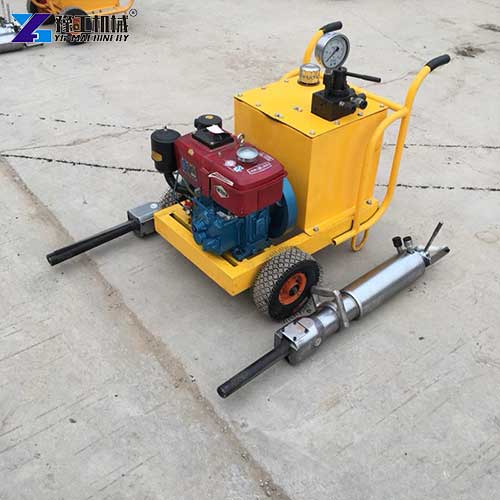

Stone Splitter For Sale

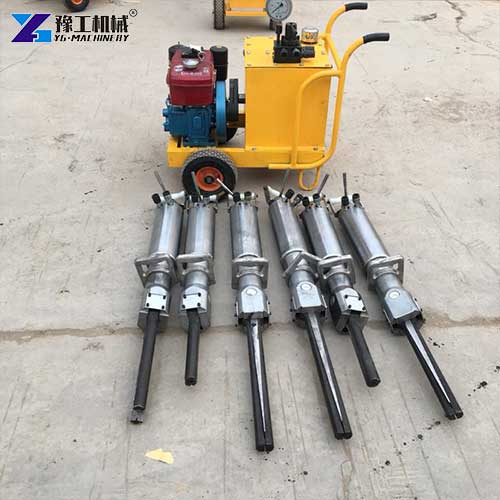

The YG series delivers three models covering hole diameters from 42mm to 46mm and splitting forces from 500 to 800 tons. Every model operates on static hydraulic force—no vibration, no noise, no dust, no explosives. The YG-250 suits standard demolition and quarrying with 500 tons of force and 42mm holes. The YG-350 and YG-450 handle heavy-duty applications with 800 tons of force and 46mm holes. All models achieve 10-15 second cycle times for high productivity.
If you need a hydraulic splitter for rock that delivers controlled, efficient splitting without the dangers of explosives or the noise of breakers, the YG series provides a practical, proven solution. Contact us with your material type and project requirements. We will recommend the right model for your operation. Get a free quote for your hydraulic concrete splitter today.
