Every foundation construction team knows that pile head trimming is one of the most tedious and error-prone parts of pile foundation work. Traditional manual breaking methods not only eat up a lot of time and labor costs, but also often cause rebar bending, uneven break surfaces and on-site safety accidents. A concrete pile breaker is specially designed to solve all these pain points.

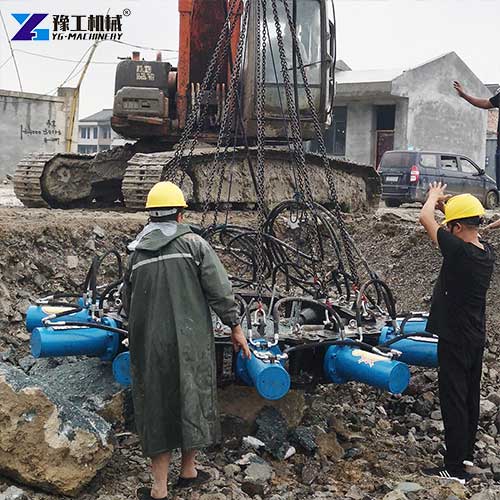

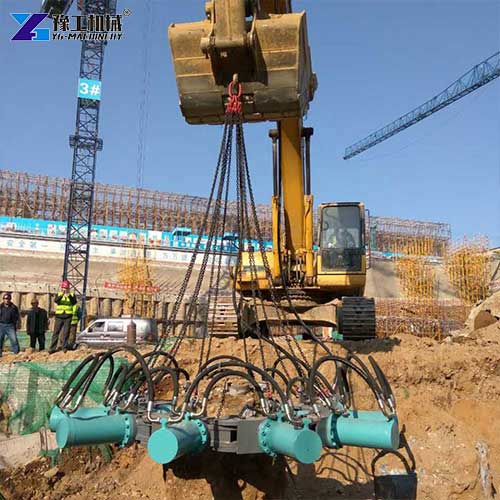

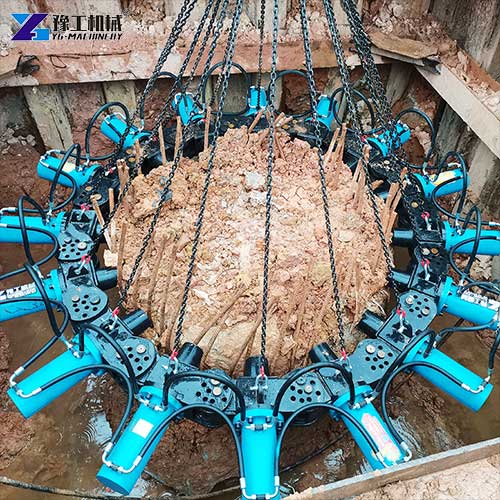

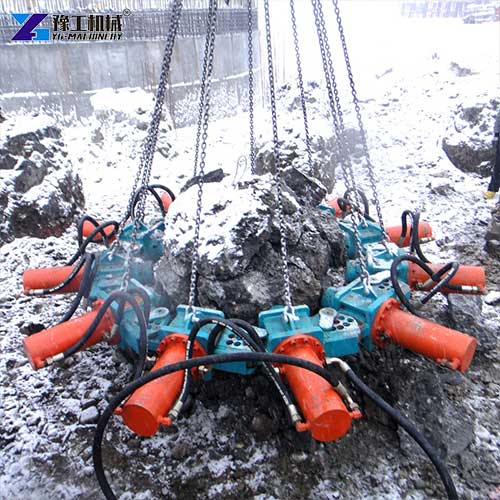

Also known as a hydraulic pile cutter, it uses the existing hydraulic power of your excavator to drive multiple independent cylinders arranged around the pile. The cylinders apply even static pressure to the concrete from all directions, making the concrete crack and separate at the preset position without extra manual chiseling. It turns the original heavy, unstable manual work into a simple, repeatable mechanical operation and greatly raises the lower limit of construction quality.
Concrete Pile Breaker Technical Specifications
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| The combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Single-module weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | 1015*865*340mm | ||||||||
5 Advantages of YG Concrete Pile Breaker
Our concrete pile breaker stands out from similar products in the market because we focus more on actual use value for users, rather than just listing basic functions:
- Universal modular design, low later expansion cost: All modules adopt a unified size standard. If you need to handle larger pile diameters later, you only need to add corresponding modules instead of buying a whole new machine. This can save you more than 50% of the expansion cost compared with fixed-size equipment.
- Static pressure crushing, no interference to surrounding structures: It adopts non-impact static extrusion technology, which will not generate vibration waves during construction. It is very suitable for dense pile groups or construction sites close to existing buildings, and will not affect the structural stability of surrounding piles and buildings.
- Low-energy hydraulic system, lower operating cost: The optimized hydraulic oil circuit design reduces unnecessary pressure loss. Compared with similar equipment, it saves about 20% of hydraulic oil consumption during operation, which can save a lot of operating costs for long-term use.

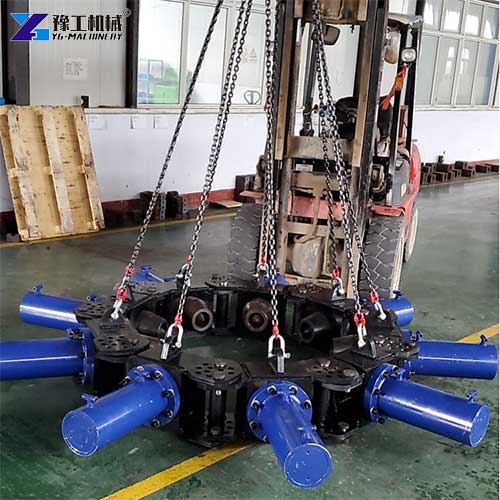

- Quick-disconnect structure, high transfer efficiency: Modules are connected with quick-release pins; no complex tools are required. 2-3 workers can complete the disassembly and assembly in half an hour, which is very convenient for transfer and transportation between different construction sites.
- Universal excavator interface, strong adaptability: It adopts a standard excavator attachment interface, which is compatible with most mainstream brands of 20-40 ton excavators. You don’t need to modify the excavator’s hydraulic system, and you can use it directly after docking.
How To Choose The Right Pile Breaker Machine For Your Projects?
Choosing the right equipment can not only ensure construction quality, but also save you a lot of unnecessary costs. You can choose the most suitable model according to the following points:
1. Sort out your project pile parameters first
First, confirm the diameter range and shape (round or square) of the piles you usually handle. Choose a model with a module range that covers your common pile sizes. If you handle both round and square piles, choose a model that supports square pile conversion with connecting blocks.
2. Match your existing excavator tonnage
Different models of equipment require different excavator tonnages. Most standard models fit 20-40 ton excavators. Make sure your excavator has enough hydraulic output to drive the equipment so that you can get the best braking effect.
3. Consider your project scale and use frequency
If you take on large-scale foundation projects frequently, choose a heavy-duty model with higher durability. If you only use it occasionally for small projects, a standard model is enough to meet your needs.
When you choose a hydraulic pile cutter, first confirm your pile size and excavator tonnage, and then select the most cost-effective configuration according to your project scale.
If you handle projects with varying pile sizes, a modular pile head breaking machine is a better choice. You can adjust the number of modules according to different pile sizes, which improves equipment utilization and saves you the cost of buying multiple devices.
How To Maintain the Concrete Pile Breaker for a Longer Service Life?
Proper maintenance can greatly extend the service life of your pile breaker machine and reduce unexpected failures during construction. A well-maintained concrete pile breaker can last 5-8 years, which is almost twice the service life of equipment without regular maintenance. You can follow the maintenance steps below to keep your equipment in good condition.
Daily maintenance after each use
After finishing construction every day, you need to clean up all concrete residue on the surface of the equipment and inside the module gaps. Hardened concrete will jam the cylinder and affect normal operation. You also need to check whether there is oil leakage at the hydraulic pipe joints and wipe off the dust and debris on the cylinder rod to avoid wear to the sealing parts.
Weekly routine maintenance
Every week, you should add lubricating grease to all connecting pin shafts to reduce wear during operation. Check the hydraulic oil level, and add hydraulic oil in time if it is lower than the standard level. You also need to tighten all connecting bolts to avoid loosening caused by long-term vibration.
Monthly in-depth maintenance
Every month, replace the hydraulic oil filter element to avoid impurities from damaging the hydraulic system. Check whether the cylinder sealing parts are in good condition, and replace them in time if there is oil leakage. You also need to test the hydraulic pressure to ensure it is within the rated range.
Long-term storage maintenance
If you don’t use the pile head breaking machine for a long time, you should drain part of the hydraulic oil and apply anti-rust oil to all metal surfaces. Store the equipment in a dry and ventilated place, and cover it with a waterproof tarpaulin to avoid sun and rain. You also need to start the equipment and run it for 10-15 minutes every 1-2 months to keep the internal parts lubricated.
