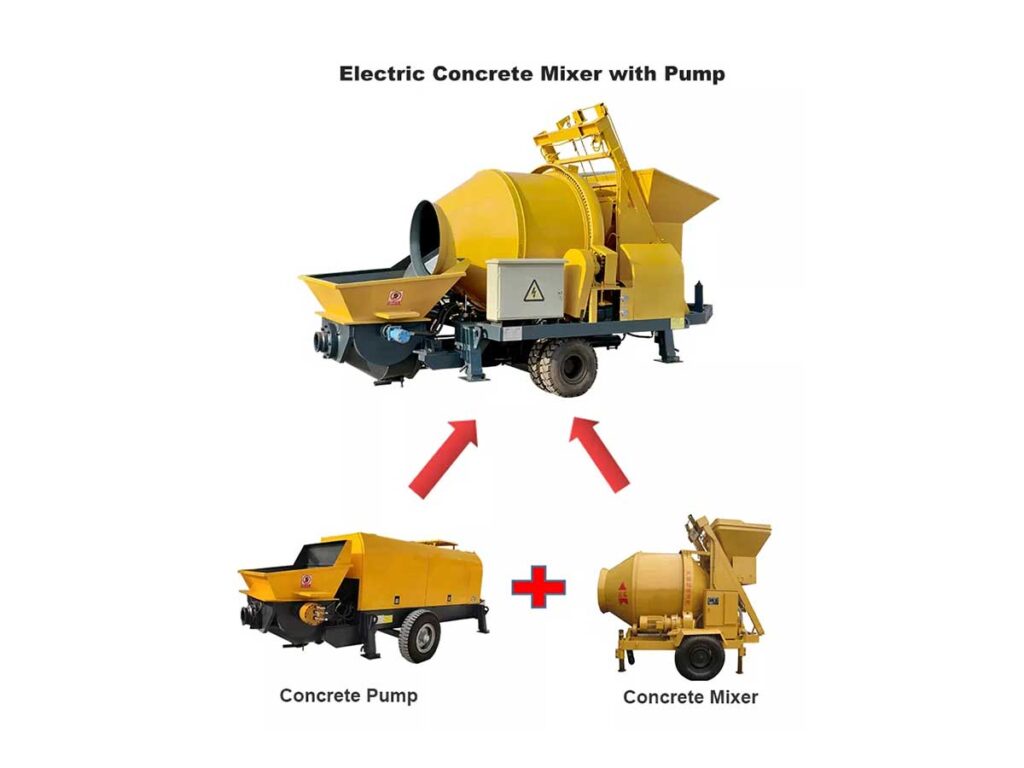

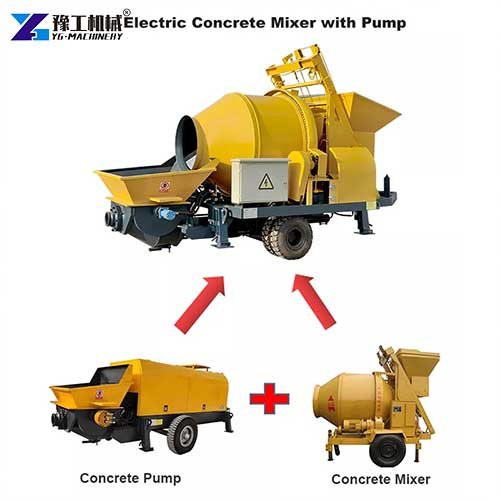

For small and medium construction projects, traditional separate concrete mixers and pumps always cause a lot of trouble. You need to buy two pieces of equipment, arrange separate transport, and coordinate two teams of operators — all of which drive up costs and slow down progress. A concrete mixer and pumping machine solves all these problems by integrating mixing and pumping into one single unit. Also known as a concrete mixer with pump machine, it is a mobile concrete mixing and conveying system that can mix raw materials on site and pump the finished concrete directly to the pouring point through pipelines. It combines feeding, mixing and high-pressure pumping in one machine, with a fully automatic construction system.
YG provides a full range of models for different project scales. The YG-350 (20-30m³/h capacity) and YG-550 (40m³/h capacity) are our best-selling models, suitable for most small and medium construction needs. We also offer larger and smaller models to match special project requirements.
Concrete Mixer And Pumping Machine Technical Parameters
| Model | YG-350 | YG-550 |
| Theoretical delivery volume | 20-30M3/h | 40M3/h |
| Bone particle diameter | 0.5-40mm | 20-40mm |
| Greatest pressure | 20mpa | 20mpa |
| Bore*Stroke | 180*1000mm | 200*1110mm |
| Motor Power | 45kw | 55kw |
| Oil pump power | 100(column)L/S | 140(column)L/S |
| Delivery pipe | 125mm | 125mm |
| Genset power | 150kw | 150kw |
| Machine size | 6100*2000*2700mm | 6200*2000*2700mm |
| Weight | 5500kg | 6500kg |
5 Applications of the Concrete Mixer And Pumping Machine
- Road & pavement pouring: Suitable for rural road construction, community pavement renovation, sidewalk construction and other road projects. It can move flexibly between construction sections and pour concrete continuously without interruption.
- Roof & floor pouring: Ideal for residential building roof pouring, self-built house floor construction and other building projects. The high-pressure pumping system can deliver concrete to higher floors easily.
- Water conservancy & hydropower projects: Used for small reservoir construction, irrigation canal repair, farmland water conservancy projects and other water-related works. Its mobility makes it perfect for scattered rural construction sites.
- New rural construction: Widely used in new rural house building, village public facility construction and other rural projects. It requires less space and fewer workers, which fit the characteristics of rural construction very well.
- Highway, railway & tunnel construction: Suitable for auxiliary works of highway and railway projects, small tunnel lining construction and other infrastructure projects. It can enter narrow construction areas that large equipment cannot reach.
How To Choose The Right Mixer Pump Capacity For Your Small Projects?
Choosing the right capacity is one of the most important decisions when buying a trailer concrete mixer with pump. A unit that is too small will slow down your project, and a unit that is too big will waste your investment. You can choose the right capacity according to your most common project types:
1. Rural self-built houses & small courtyard projects
For ordinary 2-3-story rural self-built houses, courtyard construction and other small projects, a model with 20-30m³/h theoretical delivery volume is completely sufficient. This capacity can meet the daily pouring needs of small buildings, and the equipment cost is relatively low.
Our YG-350 model is a very popular choice for this type of project. It has a compact body and low fuel consumption, which is very cost-effective for small construction teams.
2. Township roads & small water conservancy projects
For township road construction, small irrigation canal repair and other medium-sized projects, you can choose a model with 30-40m³/h delivery capacity. This capacity can keep up with the construction speed of medium projects, and you won’t have to wait for concrete supply during peak construction periods.
Our YG-550 model with 40m³/h capacity is the best-selling model for this type of work. It balances efficiency and cost perfectly and can handle most common township construction projects.
3. Medium infrastructure & tunnel auxiliary projects
For medium highway auxiliary works, small tunnel lining and other larger projects, you can choose a higher-capacity trailer concrete mixer with pump model according to your actual construction volume. We also provide larger-capacity models for this type of project demand.
When choosing a model, you should also consider the maximum conveying height and distance you need. Make sure the model you choose can meet your actual pouring requirements.
No matter what type of project you mainly do, there is a suitable trailer concrete mixer with pump model for you. If you are not sure which model fits your needs best, you can tell us your common project types and scale, and we will recommend the most suitable option for you.
Features of YG Concrete Mixer And Pumping Machine
Our concrete mixer with pump machine has many practical advantages designed for small and medium construction sites:
- All-in-one integrated design, high efficiency: It integrates mixing and pumping functions in one unit. The construction efficiency is 4-6 times higher than that of traditional fixed mixers. You can finish mixing and pumping at the same time; no need to wait for concrete transfer.
- Trailer-mounted, flexible movement: The concrete mixer and pumping machine adopt a trailer-type design. You can tow it to the construction site directly with a truck or tractor. It moves flexibly between different work sections and is not restricted by narrow construction spaces.
- Fully automatic operation, labor-saving: The fully automatic construction system is easy to operate. Only 1-2 workers are needed to complete the whole concrete pouring work, which greatly reduces labor costs.
- High-pressure stable conveying: The maximum pumping pressure reaches 20mpa, which can deliver concrete stably to higher floors and longer distances. The conveying is continuous and uniform, which ensures concrete pouring quality.
- Wide range of aggregate adaptation: It can handle aggregate with a particle diameter of 0.5- 40 mm, which is suitable for most common concrete formulations. You can use local raw materials directly; there is no need for special aggregate processing.
- Complete model range: We have a full range of models from small to large capacity. The YG-350 and YG-550 are our best-selling models, and we also provide custom solutions for special project requirements.
Small Concrete Mixer Pump For Sale
YG has focused on concrete construction equipment for many years. Every concrete mixer and pumping machine we produce undergoes strict factory testing to ensure stable performance and reliable quality. We have a full range of models to meet the needs of different scales of construction projects, and our YG-350 and YG-550 models are proven bestsellers for small and medium work. If you’re looking for a reliable small concrete mixer pump for your construction projects, contact us today. You just need to tell us your main project types, required delivery volume and maximum conveying height, and we will recommend the most suitable model for you and provide a detailed factory-direct quotation. We also provide operation training and spare parts supply services to help you put the equipment into use quickly.
