Professional drilling equipment | Specialized drilling machinery for mining, quarrying, well exploration, and road drilling

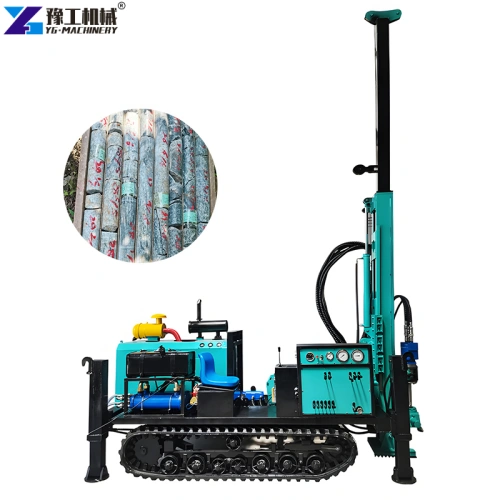

YG Machinery’s drilling rigs include various models such as down-the-hole drills, tracked drills, and water well drills. These machines feature compact structures, high drilling efficiency, and stable operation, and are widely used in mining, quarrying, water well drilling, road construction, and geotechnical engineering projects. The entire machine is constructed with thickened steel and high-quality hydraulic components, ensuring wear resistance and a low failure rate, supporting operations in complex mountainous and rugged terrain. Factory direct supply, ample stock, and customization options are available. Exporting to customers worldwide.

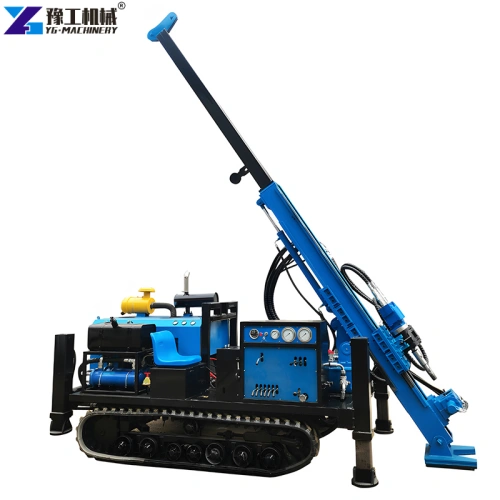

Product Series 1: Hydraulic Core Drilling Rig
- Key Features: Fully Hydraulic Drive | Stepless Speed Regulation | Deep Hole Coring
- Core Description: The YG hydraulic core drilling rig adopts a load-sensitive hydraulic system, increasing drilling efficiency by over 30%. It is suitable for geological exploration, detailed mine surveys, hydrological drilling, and other scenarios. The maximum drilling depth can reach 1200 meters (NQ caliber), and it is equipped with an automatic anti-jamming device for safer operation.
- Selection Highlights: Optional tracked chassis for rapid site relocation; supports remote data acquisition terminals.
Product Series 2: Water Well Drilling Rig
- Key Features: High Torque | Rapid Well Completion | Mud/Air Dual-Use
- Core Description: The YG water well drilling rig is specifically designed for water supply wells, agricultural irrigation, and geothermal heat pump drilling. The power head torque ranges from 8000 to 25000 N·m. It can be equipped with a mud pump or air compressor for forward/reverse circulation drilling. It features an automatic mud and sand filtration system to reduce drill rod wear. Maximum drilling depth is 600 meters, and the borehole diameter can reach 550 mm. The overall structure is compact, with hydraulic outriggers for automatic leveling, eliminating the need to disassemble the drilling rig during relocation.
- Selection Highlights: Diesel and electric dual power options available; optional automatic rod changing device and vehicle-mounted chassis; supports remote flow monitoring and real-time well depth display, significantly reducing auxiliary time.

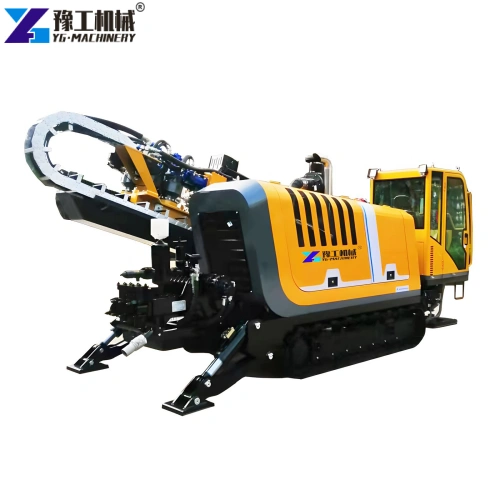

Product Series 3: Horizontal Directional Drilling Rig
- Key Features: Trenchless Pipe Laying | Precise Guidance | Strong Pullback Force
- Core Description: The YG horizontal directional drilling rig is specifically designed for gas, power, communication, and water supply/drainage pipeline construction. Pullback force ranges from 150 to 600 kN, with a maximum construction length of 1200 meters. It adopts a dual-speed power head and a high-flow mud system, adaptable to clay, sand, and gravel strata. Equipped with a wireless guidance interface and an automatic anti-pull-out system, it ensures a precise drilling trajectory and smooth pullback.
- Selection Highlights: Optional automatic drill rod loading/unloading mechanism and remote control; supports mud recycling system for environmentally friendly construction and significantly reduced overall costs.
Product Series 4: Tracked Down-the-Hole Drilling Rig
- Key Features: Open-Pit Rock Drilling | High Penetration | High-Efficiency Drilling
- Core Description: The YG adopts a pneumatic impact drilling structure with high impact force and strong breaking capacity, suitable for drilling operations in mining, quarrying, open-pit blasting, slope protection, and road construction. Drilling diameters range from 90 to 254 mm, capable of efficient operation in both vertical and inclined holes. Excellent drilling performance in hard rocks such as granite and limestone, with fast drilling speed and low failure rate.
- Selection Highlights: Integrated tracked walking mechanism for strong climbing ability; built-in dust removal system meets environmental construction standards.
Frequently Asked Questions
1. How much does a drilling rig weigh, approximately? Is it easy to transport?
The machine is lightweight and easy to transport. It is a tracked machine that can move on its own and can be transported with a trailer. Export packing is simple.
2. Can the drilling rig be customized in size?
Yes, we support customization of drilling depth, hole diameter, and power configuration. We can customize construction equipment according to your needs.
3. What are the after-sales service guarantees for the equipment?
The entire machine is covered by a warranty, with 24/7 online technical support and spare parts readily available year-round.
4. Can I visit the factory in person?
Customers are welcome to visit our factory to test the machine and conduct on-site inspections. We offer free demonstrations of the equipment’s construction effects.
