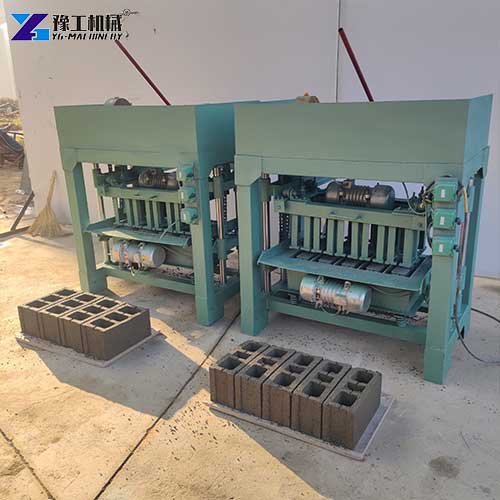

Designed for small and mid-sized block manufacturing plants, a semi-automatic brick making machine processes raw materials including fly ash, sand, gravel, ore slag and cement to produce burnt-free solid bricks, hollow blocks and paving bricks through high-pressure compression. This semi-automatic brick machine follows a cyclic mechanical workflow: raw material feeding, compression molding, demolding and finished product discharge. All finished bricks only need air curing instead of kiln firing, which simplifies overall factory production procedures greatly.
All mainstream models adopt a fixed 35-second molding cycle, with hourly and shift output varying based on power configuration and optional hopper attachment. Daily solid brick output ranges from 15000 to 24000 pieces per working shift, while hollow block output hits 2400 to 3600 pieces per shift. Operators only need 2 to 3 on-site staff to run the whole production line. The semi-auto brick-making machine has multiple weight tiers from 750kg up to 1150kg to fit different factory space conditions. Every small brick machine price adjusts based on motor power, hopper installation and daily production capacity that clients select for their projects.
Semi-Automatic Brick Making Machine Parameters
| Model Features | YG4-35A | YG4-35A (Hopper) | YG4-35B | YG4-35B (Hopper) | YG4-40A | YG4-40A (Hopper) |
| Molding Cycle | 35s | 35s | 35s | 35s | 35s | 35s |
| Power (kW) | 4.8 | 4.8 | 6.3 | 6.3 | 7.5 | 7.5 |
| Standard Bricks/Shift | 15,000 | 20,000 | 15,000 | 20,000 | 20,000 | 24,000 |
| Hollow Blocks/Shift | 2,400 | 3,200 | 2,400 | 3,200 | 3,200 | 3,600 |
| Machine Weight | 750kg | 780kg | 800kg | 830kg | 1100kg | 1150kg |
| Operators Needed | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 |
Semi-Automatic Brick Making Machine Key Product Features
Every semi-automatic brick-making machine optimizes its mechanical transmission structure to balance stable molding quality and easy daily operation for entry-level brick manufacturers.
Consistent Fast Molding Rhythm: All models keep a steady 35-second molding cycle regardless of power grade, so factory managers can calculate daily total output accurately for bulk order delivery plans.
Gradient Production Capacity Options: Basic models deliver 15000 solid bricks per shift, while hopper-upgraded versions lift output to 20000 or even 24000 pieces per shift. Hollow block capacity also rises accordingly from 2400 to 3600 units for high-end variants.
Low Labor Demand For Operation: The whole production line only needs 2 to 3 skilled operators to complete material feeding, finished brick collection and routine machine inspection work, which lowers daily labor input for small factories effectively.
Flexible Raw Material Compatibility: The molding structure accepts multiple low-cost local raw materials such as fly ash, slag, stone powder and river sand. Factory owners can source nearby materials to reduce raw material procurement expenses.
Semi-Automatic Brick Making Machine Practical Model Selection Guide
You match the proper unit by evaluating four core operational factors before placing orders for this semi-auto brick-making machine:
- First, confirm your target daily production volume. If you run a small local workshop with low order volume, pick base models without a hopper; factories with stable bulk orders choose hopper-equipped variants for higher shift output.
- Second, check your available factory floor space. Light 750kg to 830kg compact models suit narrow workshops, while heavier 1100kg plus units require wider operating space for material circulation.
- Third, define your main product type. Factories focusing on hollow block production prioritize models with higher hollow piece per shift data; producers focused on common solid bricks select variants with higher solid brick yield.
- Fourth, assess your available on-site labor scale. Since all units need 2-3 operators, you only need to confirm that your staffing condition matches this labor requirement before finalizing the model.
- You can check the detailed small brick machine price differences between basic and hopper-upgraded versions after locking your production target.
FAQ About Semi-Automatic Brick Making Machine
A: The standard configuration uses electric power. You can add an optional diesel generator as an upgrade part.
A: Yes, all molds can be fully customized to match your required brick specifications.
A: The semi-automatic unit applies vibration molding, while fully automatic brick machines use hydraulic molding for production.

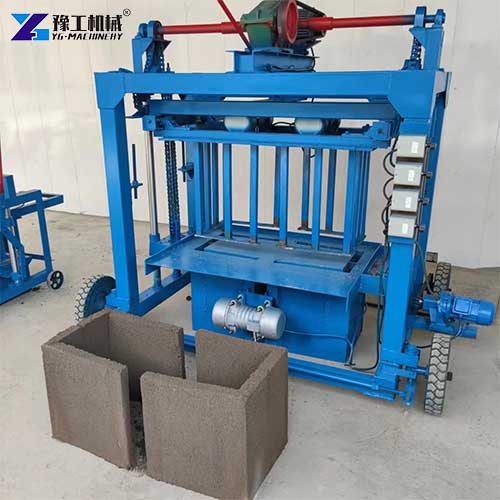

A: Wheels can be fitted to the machine as an optional modification for easier site relocation.
A: We will provide complete step-by-step operation tutorial videos after order confirmation to guide daily operations.
A: All semi-automatic brick-making machines finish full assembly and testing before shipment. You can start operation directly once you receive the goods.
Get a Transparent Small Brick Machine Price
If you need reliable mid-volume block molding equipment for small brick production workshops, our semi-automatic brick-making machine offers tiered output options and flexible raw material adaptability for diverse local construction material demands. Each semi-automatic brick machine from YG undergoes continuous cycle testing before delivery to verify that molding cycle and output data match published specifications. Our technical team provides one-on-one model-matching advice based on your daily output target, workshop space and main brick types to avoid improper equipment selection. Share your expected shift output and factory layout details with our sales team today to receive complete parameter sheets and a no-obligation customized quotation.
