Shotblaster is core equipment in industrial surface treatment. They use centrifugal force to propel the shot, achieving rust removal, oxide scale removal, surface strengthening, and roughness pretreatment. They are widely used in industries such as casting, steel structures, automobiles, and shipbuilding. When purchasing a shot blasting machine, it’s essential to consider workpiece characteristics, production capacity requirements, application scenarios, and budget to accurately match the model and configuration. In addition, we also offer sandblasting rooms, sandblasting chambers, ground shot blasting machines, portable sandblasting machines, and automatic sandblasting machines. If you have any needs, please contact us!
Shotblaster Technical Parameter
| Item | YG376 | YG376B | YG378 | YG3710 | YG3720 | YG3730 | YG3750 | YG37100 |
| Maximum weight of cleaning(KG) | 500 | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Clean the workpiece size(mm) | 600*1200 | 700*1200 | 1000*1600 | 1200*1800 | 1400*2200 | 1600*2300 | 1800*2500 | 3000*3000 |
| Shot blasting amount (kg/min) | 2*200 | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 5*250 |
| Lift (T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Separator separation amount (T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Power (KW) | 22.5 | 23.5 | 39.65 | 47.5 | 56.2 | 65.45 | 85.45 | 97.65 |
| Ventilation(m3/h) | 4000 | 4000 | 5000 | 5000 | 9000 | 11000 | 14000 | 16000 |
Mainstream Types of Shotblaster
Shot blasting equipment is classified into four core types based on workpiece conveying methods and structures, adaptable to different workpiece sizes, batch sizes, and application scenarios. Selection should prioritize matching workpiece characteristics.
- Tracked Shot Blasting Machine: Rubber tracks drive the workpiece to tumble, suitable for small batches of workpieces (valve, hardware, gears, standard parts) weighing 5-50kg. It provides thorough cleaning without blind spots, has a high degree of automation, and is suitable for batch rust removal and deburring in automotive parts and foundries.

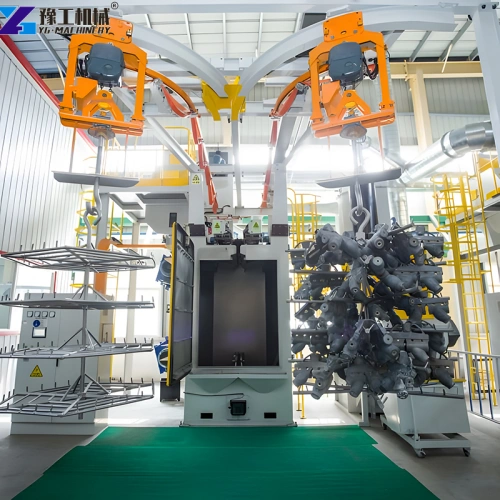

- Hook-type Shot Blasting Machine: A hook suspends the workpiece and rotates it 360°, suitable for heavy/irregularly shaped workpieces (machine tool beds, wind turbine flanges, welded structural components) weighing 50-5000kg. It offers high flexibility, avoids workpiece collisions, and is suitable for the engineering machinery, shipbuilding, and wind power equipment industries.
- Through-type Shot Blasting Machine: Continuous conveying via roller conveyor/mesh belt, suitable for long/large workpieces (H-beams, steel plates, steel pipes, steel rails). It enables assembly line operation with extremely high efficiency, suitable for continuous cleaning in steel structures, shipbuilding, and bridge engineering.
- Road shot blasting machine: Mobile design, suitable for roughening, rust removal and marking removal of concrete/asphalt pavement and steel plate surfaces. Flexible and portable, suitable for highway, airport runway, bridge deck and workshop floor treatment.
YG Shot Blasting Machine Hot-Selling Models
YG shot blasting equipment has been deeply involved in the industry for 18 years, offering four major series: crawler type, hook type, through type, and road type. With a complete range of models, they are suitable for various scenarios. Below are the detailed parameters of our core hot-selling models.

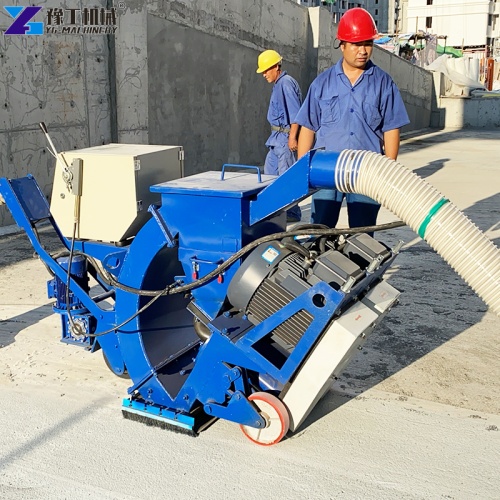

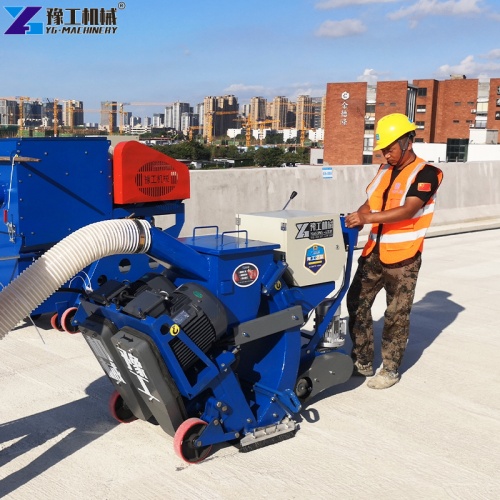

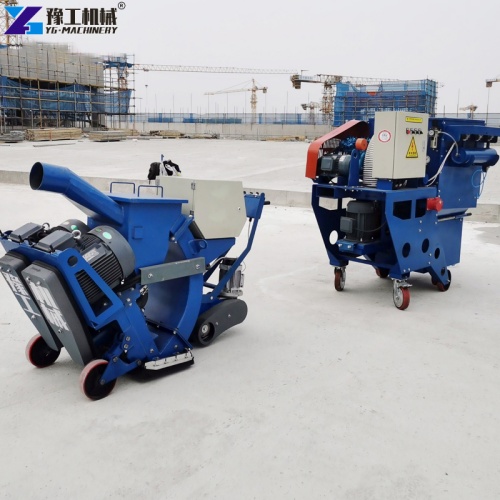

YG-270/550/850 Road Shot Blasting Machine (Hot Selling Model)
- Performance Parameters:
- YG-270 Single Blasting: Working width 270mm, shot blasting wheel diameter 200mm, power 0.75kw, cleaning efficiency 50-150㎡/h.

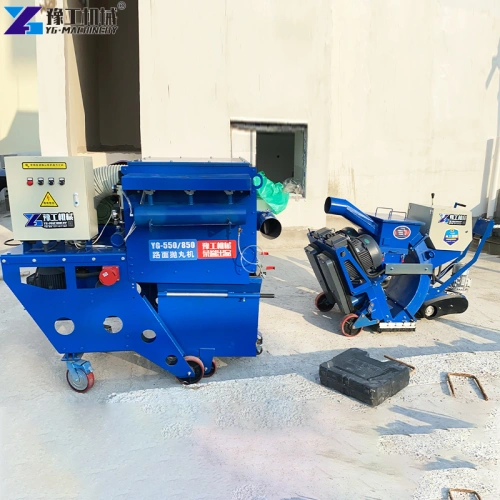

- YG-550 Double Blasting: Working width 550mm, power 0.75kW, cleaning efficiency 80-600㎡/h, shot consumption: 50g/㎡.
- YG-850 Double Blasting: Working width 850mm, power 1.5kW, cleaning efficiency 80-600㎡/h, steel shot consumption: 10g/㎡, suitable for large-area road surface projects.
- Standard Accessories: High-chromium wear-resistant shot blasting head, pulse dust collector, wear-resistant protective plate, rubber seals, PLC control panel.
- Advantages: Flexible mobility, high cleaning efficiency, environmentally friendly dust removal, simple operation, single-person operation, and suitable for both outdoor and indoor environments.
- Disadvantages: Limited working width; multiple units required for large-area projects; requires a smooth road surface.
- Suitable Clients: Highway engineering companies, municipal maintenance units, airport/port operation and maintenance departments, and steel structure corrosion protection companies.
- In addition, we offer other models, including tracked shotblaster, hook-type shot blasting machines, and through-type shot blasting machines. For more details, please contact us. We will provide you with customized 1-on-1 solutions and specific quotations. Act now!
YG Shotblaster FAQs
1. Is the shot consumed quickly with the YG shotblaster?
YG machines are equipped with a fully automatic shot recovery and separation system with a recovery rate exceeding 98%. Under normal operating conditions, steel shot consumption is only 10g/㎡ (road blasting machine) or 5-8kg/day (tracked/crane blasting machine), far below the industry average.
2. Does the equipment meet environmental standards?
Standard configuration includes a pulse dust removal system with a dust purification rate of 99.5% and an emission concentration ≤30mg/m³, meeting national environmental standards. There is no dust leakage, making it suitable for environments with stringent environmental regulations.
3. Can non-standard models be customized?
Non-standard customization is supported. Chamber size, number of blasting heads, and conveyor speed can be customized according to workpiece size, weight, and production capacity requirements, providing a one-to-one solution.
4. Is the equipment prone to failure?
Core components are made of wear-resistant alloy material. The blasting head blades have a lifespan of ≥8000 hours. PLC intelligent monitoring provides automatic fault alarms, making daily maintenance simple. The average annual failure rate is less than 3%.
5. How long is the delivery time?
Standard models are in ample stock and will be shipped within 7-15 days; non-standard customized models will have a delivery time of 20-30 days, with after-sales service guaranteed.
YG Shot Blasting Machine Professional Manufacturer
YG shotblaster focuses on industrial applications, helping companies improve surface treatment efficiency and product quality through stable performance and comprehensive after-sales service. In daily operation and maintenance, standardized operation, regular maintenance, and timely troubleshooting can effectively extend equipment life, reduce operating costs, and provide continuous and stable surface treatment guarantees for industrial production. Furthermore, our equipment has been exported to many countries and regions worldwide, winning widespread trust with its reliable quality and excellent service.
If you still have questions about model selection, please contact us directly; our professional team will tailor a suitable shot blasting machine procurement plan for you, and you can view more equipment photos, construction videos, and customer case studies! Contact us now!
