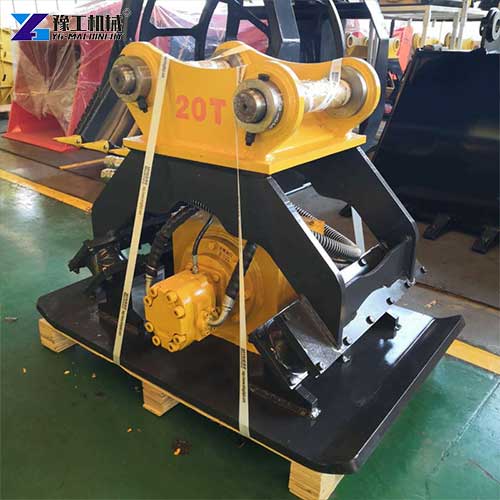

Road and civil construction crews regularly struggle to compact tight, irregular zones that large standalone compactors cannot reach, and the hydraulic plate compactor solves this exact pain point as a dedicated excavator attachment designed for on-site soil consolidation work. This hydraulic-driven compaction tool fastens directly to standard digger arm connections, delivering consistent vibration compaction for narrow trenches, slope shoulders, bridge abutment backfill and embankment reinforcement. Operators control all compaction movements from the excavator cab without switching between separate pieces of equipment. Many contractors search for an excavator plate compactor to eliminate inefficient manual tamping work, while teams comparing multi-functional digger accessories frequently look up an excavator compactor attachment to expand their machine’s job capabilities. Unlike handheld walk-behind compactors limited to flat open ground, this unit follows the excavator’s flexible movement to tackle hard-to-access construction corners and uneven terrain.
Hydraulic Plate Compactor Technical Parameters:
| Model | YG-32 | YG-50 | YG-80 | YG-107 |
| Vibration force(KN) | 40 | 65 | 110 | 150 |
| Excitation frequency(RPM) | ≥2000 | ≥2000 | ≥2200 | ≥2200 |
| Working pressure(MPA) | 15 | 15 | 15 | 15 |
| Maximum flow(L/min) | 60 | 100 | 160 | 160 |
| Suitable excavators(T) | 4-9 | 10-18 | 20-27 | 30-40 |
| Length/width/height(mm) | 900*550*750 | 1160*700*930 | 1350*900*1000 | 1350*900*1050 |
| Machine weight(KG) | 380 | 550 | 920 | 1050 |
| Hit area(mm) | 900*550 | 1160*700 | 1350*900 | 1350*900 |
Advantages Of The Hydraulic Plate Compactor
Built with heavy-duty structural steel and standardized hydraulic drive systems, this attachment fixes common drawbacks of generic compacting gear, with every benefit validated by on-site construction feedback and factory performance testing:
1. Continuous Stable Vibration Output
All four YG models maintain steady excitation frequency during nonstop operation. Smaller YG-32 and YG-50 run at a minimum of 2000 RPM, while YG-80 and YG-107 boost to 2200 RPM to generate stronger compaction force for thick soil layers. Constant vibration eliminates loose, uneven compaction results that lead to pavement cracking or slope collapse later.
2. Universal Excavator Matching Range
Four distinct size variants cover diggers from 4-ton mini machines up to 40-ton heavy excavators. Each model carries matched flow requirements to fit standard excavator hydraulic circuits, with a fixed 15 MPA working pressure that aligns with most mainstream digger brands without extra hydraulic modification.
3. Rugged Build For Complex Terrain
Thickened base plate and reinforced side frames resist impact from rocky fill and rough ground. The solid construction withstands long daily shifts on steep slopes, muddy roadbeds and uneven trench sites, with no frequent frame deformation or weld breakage.
4. Fast Installation & One-Person Operation
Mounting brackets align with standard excavator quick coupler connections. Crews complete full attachment setup in minutes, and one single excavator operator controls all compaction actions remotely from the cab, cutting extra labor demand on busy job sites.
5. Scenario Functional Versatility
Beyond basic soil tamping, the unit handles auxiliary light breaking and pile driving tasks on site, removing the need to swap multiple attachments for mixed construction workflows. Contractors researching an excavator vibratory plate compactor gain a multi-purpose tool that covers more job types with one investment.
6 Applications of YG Excavator Vibratory Plate Compactor
- Trench Backfill Compaction: Utility trenches for water, gas, and fiber optic lines require layered backfill and compaction. The YG-32 with its 900×550mm hit area fits into typical trench widths. The excavator arm positions the plate precisely, compacting each layer as backfill goes in. One machine digs, backfills, and compacts – the trench is finished before a separate compactor would arrive on site.
- Slope and Embankment Compaction: Road embankments and dam slopes need compaction to prevent erosion. Tracked excavators climb slopes that wheeled rollers cannot. The YG series works on these slopes, with the excavator’s weight adding downforce to the plate’s vibration.
- Pipeline Bedding and Backfill: Pipelines need stable bedding material compacted evenly beneath and around the pipe. The excavator arm positions the plate precisely alongside the pipe without contacting it. This controlled compaction prevents pipe damage while achieving the required density.
- Bridge Abutments and Retaining Walls: Areas adjacent to structures are inaccessible to large rollers. The excavator’s reach enables precise compaction along walls, shoring, and foundation remnants. The YG series delivers controlled energy input exactly where it is needed.
- Concrete Pavement Patching: Road repair requires compacting the subgrade before placing new concrete. The hydraulic plate compactor prepares the base quickly, ensuring the patch lasts.
- Slope and Step Compaction: Complex terrain – steps, corners, and turning points – challenges conventional compaction equipment. The excavator arm positions the plate at any angle, compacting areas that rollers cannot reach
Frequently Asked Questions About Hydraulic Plate Compactor
A: The YG series covers excavators from 4 to 40 tons. The YG-32 fits 4-9 ton machines. The YG-107 fits 30-40 ton excavators. Check the suitable excavator range for your specific model.
A: Light trench backfill works well with 40-65KN. Road base and heavy clay require 110-150KN. Consider your material type and required compaction depth when selecting.
A: Compaction depth depends on material type, vibration force, and lift thickness. Typically, the YG series achieves effective compaction in 200- 500 mm lifts with proper passes and downforce. Higher force models handle thicker lifts
A: Yes. The excavator’s stability on tracks combined with precise arm control allows effective compaction on slopes. The plate angle can be adjusted to match the slope face.
A: Regular inspection for hydraulic leaks and loose bolts. Clean debris from the plate after each use. Check hydraulic fluid levels and fittings periodically. The sealed exciter unit requires minimal maintenance.
The YG series delivers four models covering vibration forces from 40KN to 150KN. Every model is matched to specific excavator tonnage ranges from 4 to 40 tons. Excitation frequencies reach 2000 to 2200 RPM for fast, effective compaction across different soil types.
If you plan to upgrade your excavator accessory lineup or compare hydraulic plate compactor options for upcoming road, dam or building foundation projects, share your excavator tonnage and primary construction terrain details with our professional equipment team now to receive customized model matching suggestions and detailed product specification documents.
