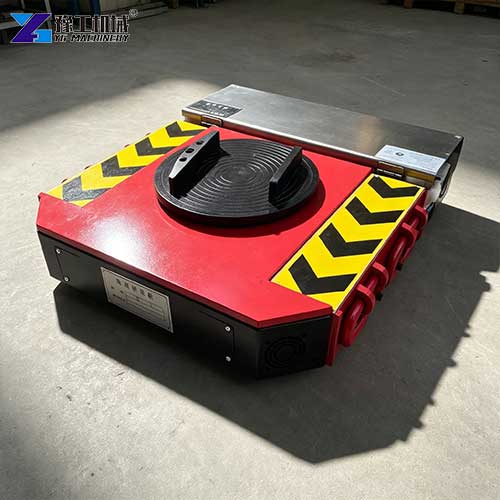

An electric transfer cart delivers battery‑powered movement for heavy‑weight objects inside manufacturing workshops and industrial sites. It excels at factory relocation, machine installation and heavy‑equipment moving tasks where traditional lifting gear meets space limits. This robust unit replaces labor‑intensive manual shifting and unlocks flexible mobility in narrow work zones. As one practical heavy‑load solution, it pairs well with an electric mover when users tackle extra‑large or irregular‑shaped cargo. Operators steer the unit from a safe distance, and this machine fits diverse site layouts without complex ground modification. A remote control electric transporter like this cuts down onsite handling risks for daily heavy‑duty workflows. This electric transfer cart adapts across load ranges from 10 tons up to 60 tons to match different project requirements.
YG Electric Transfer Cart Technical Specifications:
| Model | YG-10 | YG-20 | YG-30 | YG-40 | YG-50 | YG-60 |
| Dimension（mm） | 500*550*145 | 670*620*165 | 740*640*185 | 810*800*182 | 810*800*182 | 1110*880*185 |
| Motor(2 sets with brake) | 500w | 750w | 1000w | 1 500w | 2000w | 3 000w |
| Controller | Dual driver D2T80A | Dual driver D2T80A | Dual driver D2T100A | Dual driver D2T200A | Dual driver D2T200A | Dual driver D2T200A |
| Battery | 48V 30AH (ternary lithium ) | 48V 60AH (ternary lithium or lithium iron phosphate) | 48V 60AH (ternary lithium or lithium iron phosphate) | 48V 120AH (ternary lithium or lithium iron phosphate) | 48V 120AH (ternary lithium or lithium iron phosphate) | 48V 100AH (ternary lithium ) |
| working current | 25A | 60A | 60A | 150A | 150A | 150A |
| Maximum towing weight | 10t | 20t | 30t | 40t | 50t | 60t |
| Plate | 10 mm Q355 steel | 10 mm Q355 steel | 12 mm Q355 steel | 16 mm Q355 steel | 16 mm Q355 steel | 16 mm Q355 steel |
| Drive wheel | 4 | 4 | 4 | 4 | 4 | 8 |
6 Features of YG Electric Transfer Cart
This electric mover packs practical performance built for real‑world industrial handling challenges.
- Broad load capacity coverage: Models span from 10T‑60T to satisfy varying heavy‑load demands. Thick Q355 steel load‑bearing plates maintain structural stability under full rated towing weight.
- Wireless remote operation: Industrial remote controllers support 50‑meter effective control range. Operators access adjustable speed settings, emergency stop and cruise functions. Remote separation keeps staff away from potential squeeze or collision hazards.
- 360‑degree in‑place rotation: The rotating bearing plate enables zero‑turn‑radius movement. It navigates narrow aisles, tight gaps between production machines and compact indoor spaces that restrict standard wheeled equipment.
- Floor‑friendly mobility: Imported high‑hardness polyurethane drive wheels prevent scratches or damage on finished workshop floors. Low‑profile body design simplifies positioning underneath bulky heavy machinery.
- Flexible power performance: Lithium battery configurations vary per model. It delivers continuous running time of 2‑6 hours depending on load tonnage. Units handle slopes up to 15 degrees for sites with slight elevation changes.
- Modular expandability: Users customize dimensions, load capacity and control system. Multiple units achieve wireless synchronous linkage to move over‑length or extra‑wide heavy items.
Wireless Remote Control: One Operator, Safe Distance
The YG series electric transfer cart uses an industrial-grade wireless remote control with a 50-meter operating range. The operator stands at a safe distance, away from the load, while controlling forward, backward, turning, and speed.
Two remote control options:
- Standard remote: Basic forward, backward, left, and right control. Uses 4 AA batteries. Can also be powered by a mobile phone power bank for extended use.
- Work remote: Advanced features including micro-speed adjustment (0-10 speed settings), emergency stop, and cruise control. Built-in rechargeable battery. Charging time is approximately one hour.
Battery runtime:
- YG-10: 2-3 hours of continuous operation
- YG-20 and YG-30: 3-4 hours
- YG-40, YG-50, and YG-60: 4-6 hours
The remote control allows precise positioning even in tight spaces. The micro-speed adjustment on the work remote enables fine movements for aligning machinery with bolt holes or positioning equipment on foundation plates.
Speed control: The electric transfer cart’s walking speed is adjustable from 2 to 10 meters per minute. Slower speeds provide finer control for precise positioning. Faster speeds improve efficiency for longer moves.
How to Select the Right Electric Transfer Cart Model?
Step 1: Start with the load weight.
| Model | Capacity | Plate Thickness | Drive Wheels | Motor Power |
| YG-10 | 10 tons | 10mm | 4 | 500W ×2 |
| YG-20 | 20 tons | 10mm | 4 | 750W ×2 |
| YG-30 | 30 tons | 12mm | 4 | 1000W ×2 |
| YG-40 | 40 tons | 16mm | 4 | 1500W ×2 |
| YG-50 | 50 tons | 16mm | 8 | 2000W ×2 |
| YG-60 | 60 tons | 16mm | 8 | 3000W ×2 |
The simple rule: Choose the model with at least 20% more capacity than your heaviest load. A 25-ton press needs the YG-30 electric transfer trolley, not the YG-20. A 55-ton transformer needs the YG-60 remote control electric transporter. Running near the limit is not safe—extra capacity gives you margin for uneven weight distribution and floor conditions.
Step 2: Check the clearance under your equipment.
| Model | Height | Can Fit Under |
| YG-10 | 145mm | Most CNC machines, mills, presses |
| YG-20 | 165mm | Most industrial equipment |
| YG-30 | 185mm | Heavy machinery with higher clearance |
| YG-40 | 182mm | Large presses, transformers |
| YG-50 | 182mm | Large equipment with 8-wheel stability |
| YG-60 | 185mm | Largest industrial loads |
The simple rule: Measure the gap between the bottom of your equipment and the floor. If the gap is 150mm, the YG-10 fits. If the gap is less than 145mm, the YG series will not fit without lifting the equipment first. And if the gap is 170mm, the YG-20 fits.
Step 3: Consider how you will control it.
Standard remote: Basic forward, backward, left, right. Simple. Affordable. Good for general moves.
Work remote: Speed adjustment (0-10), emergency stop, cruise control. Better for precision positioning—aligning bolt holes, slotting machines into tight spots.
If you are moving machines across a factory floor, the standard remote works fine. If you are installing machines on foundation bolts, the work remote’s speed control is worth the upgrade.
Step 4: Consider the move frequency.
YG-10 (2-3 hours runtime): Enough for occasional moves, but if you are moving multiple loads in a day, the battery will run out.
YG-20 and YG-30 (3-4 hours runtime): Covers most daily moves. One charge per shift is usually sufficient.
YG-40, YG-50, and YG-60 (4-6 hours runtime): Enough for a full day of moving heavy loads. If you are running multiple shifts, consider a spare battery.
The practical answer: Most customers choose the YG-20 or YG-30 for general factory use. These models cover the majority of industrial equipment up to 20-30 tons and fit under most machine bases. The YG-40, YG-50, and YG-60 are for customers with specific heavy loads that exceed 30 tons.
Electric Transfer Trolley For Sale
YG provides technical support and spare parts availability for international customers. If you need an electric transfer cart for factory relocation, machine installation, or heavy equipment moving, the YG series provides proven performance. Contact us with your load capacity and application requirements. We will recommend the right remote control electric transporter for your operation. Get a free quote today.
