In domestic water supply, agricultural irrigation and small project temporary water supply, small water well drilling machines are the top choice for families, farms and drilling teams due to their portability, high efficiency and cost-effectiveness. However, with numerous products available on the market, many buyers only focus on price while ignoring working condition suitability. As a result, the purchased equipment fails to adapt to local geology, leads to low drilling efficiency, and eventually drives up overall costs. Therefore, based on YG’s years of professional experience in drilling equipment manufacturing, this article elaborates on machine models, application scenarios and best-selling types, so as to help you accurately select a suitable small water well drilling machine. If you are still unsure about the appropriate model, please tell us your main purpose, and we will recommend suitable products for you.

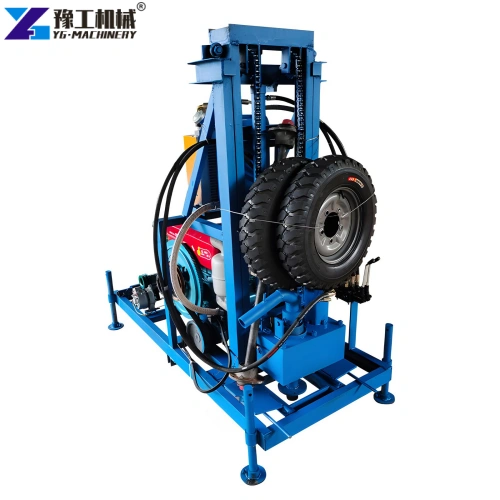

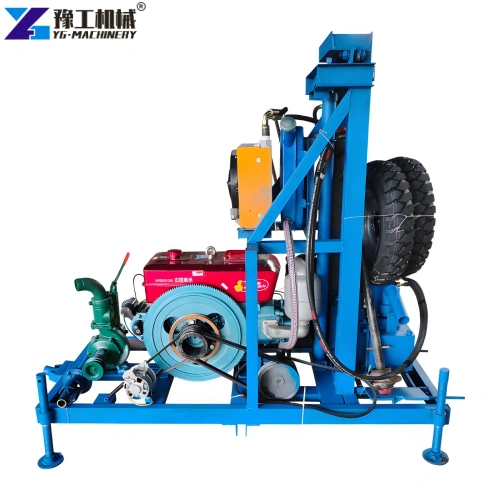

Small Water Well Drilling Rig Parameter
| Model | YG-240-22P | YG-240-30P |
| Dimension | 1450*1550*1970mm | 2000*1230*2090mm |
| Weight | 200kg | 200kg |
| Drill rod diameter | 42mm | 51mm |
| Drill rod length | 1.5m/unit | 1.5m/unit |
| Rod change method | Full automatic screw thread | Full automatic screw thread |
| Max drilling depth | 200m | 200m |
| Diesel engine power | 22HP | 30HP |
| Drilling hole diameter | Within 280mm | 100mm-240mm |
| Lifting height | 2.5m | Max 2.5m |
| Lifting force | 1000kg | 2000kg |
Main Types of Small Water Well Drilling Machine
The first step in purchasing is to clearly define the type of equipment. Different types of small water well drilling machines are suitable for different scenarios, with significant differences in geology and budget. Based on mainstream industry classifications, they are mainly divided into three categories:
- Electric: Powered by electricity, low noise, environmentally friendly and energy-saving, suitable for scenarios with stable power supply, drilling depth ≤100 meters, suitable for soft strata such as clay and sand, simple maintenance, and an excellent choice for home use.
- Diesel-Hydraulic: Currently the mainstream type on the market, powerful, with wide geological adaptability, capable of handling complex strata such as sand, gravel, and weathered rock, drilling depth 50-200 meters, moderate portability, suitable for small drilling teams, farms, and small projects, and also YG’s main best-selling type.
- Tracked: An upgraded mini borehole drilling machine, using a tracked chassis, anti-slip and anti-sinking, suitable for complex terrains such as mountains and mud, fully hydraulic operation, high efficiency, suitable for mountain operations and long-term high-intensity construction, and relatively expensive.
YG Mini Water Well Drilling Rig Bestsellers Explained
As a professional drilling equipment manufacturer, YG has been deeply involved in the small water well drilling machine field for many years. Its various mini borehole drilling machines are bestsellers worldwide, covering entry-level to high-end models to precisely match different budgets and scenarios. Below are three best-selling models, with detailed breakdowns of parameters, advantages, and disadvantages to help you quickly choose the right model:
1. YG Electric Entry-Level Model (Home Use First Choice)
Core Performance: Maximum drilling depth 150 meters, borehole diameter 75-325mm, equipped with a 15HP electric motor, torque 4000N·m, drilling efficiency 40-50 meters/day, supports mud circulation technology, suitable for soft formations such as clay and sand.
Dimensions and Accessories: Machine dimensions and weight vary depending on the specific model; accessories differ between models. The following is for reference only (standard configuration includes main unit, 50-meter drill rod, 3 types of drill bits (soil, sand, soft rock), mud pump, toolbox, and operation manual).
Advantages: Low noise, environmentally friendly and energy-saving, simplest operation, lowest price, no diesel required, suitable for home use;
Disadvantages: Limited power, unable to drill hard rock, maximum depth 150 meters, unusable in situations without power supply.
Suitable customers: Home users, suburban villas, small greenhouse farmers, those with limited budgets, stable power supply, need only shallow wells, no need for hard rock formations.

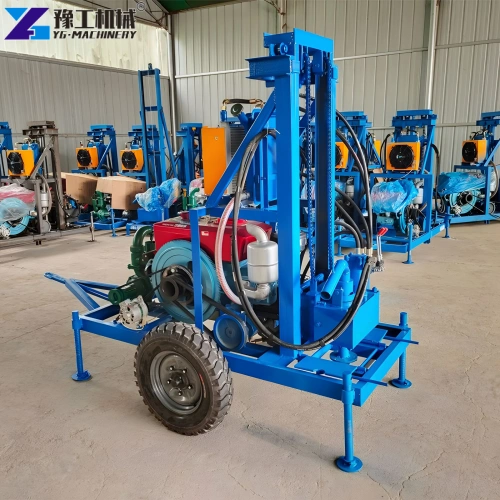

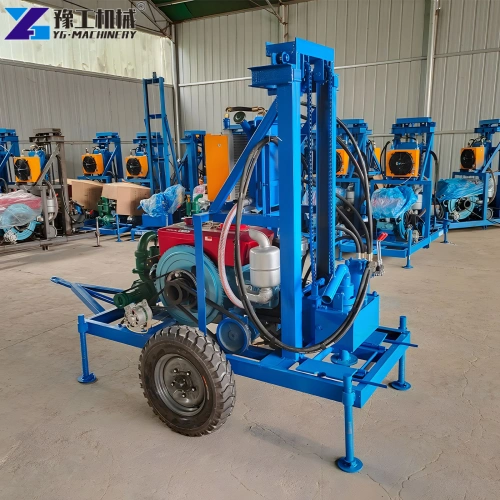

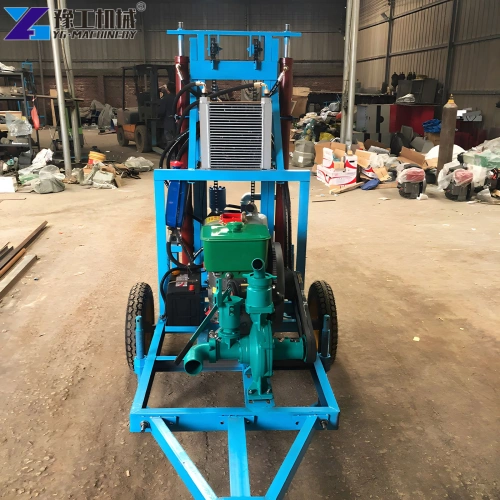

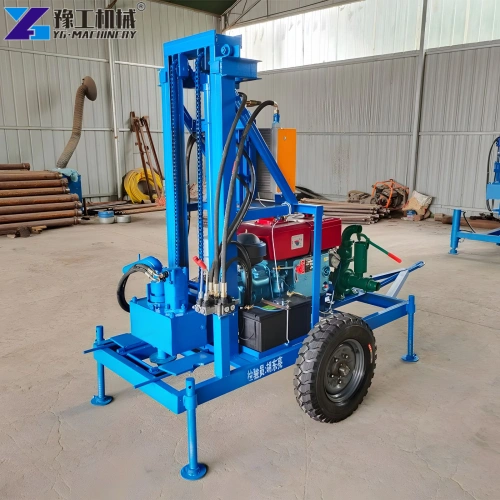

2. YG Wheeled Diesel-Hydraulic Model (Top Choice for Cost-Effectiveness)
Core Performance: Maximum drilling depth 200 meters, borehole diameter 100-280mm, equipped with a 22-30HP diesel engine, torque 6000N·m, lifting force 1000-2000kg, supports both mud/air circulation processes, can drill weathered rock, drilling efficiency 50-60 meters/day.
Size and Accessories: Machine dimensions and weight vary depending on the specific model; it can be towed by a pickup truck. Accessories vary by model; the following is for reference only (standard configuration includes main unit, 60-meter drill pipe, 4 types of drill bits, mud pump, air compressor (optional), hydraulic outriggers, toolbox, and a bilingual (Chinese and English) operation manual).
Advantages: Balanced performance, wide geological adaptability, suitable for drilling soft rock, high efficiency, easy relocation, and the best cost-performance ratio, making it the mainstream choice in the market.
Disadvantages: Relatively heavy, requires vehicle towing, and diesel consumption is slightly higher than the electric model.
Suitable Customers: Small drilling teams, medium-sized farm owners, and small engineering companies with diverse needs, requiring handling various geological formations, prioritizing cost-effectiveness and efficient construction, and not requiring complex mountainous terrain.

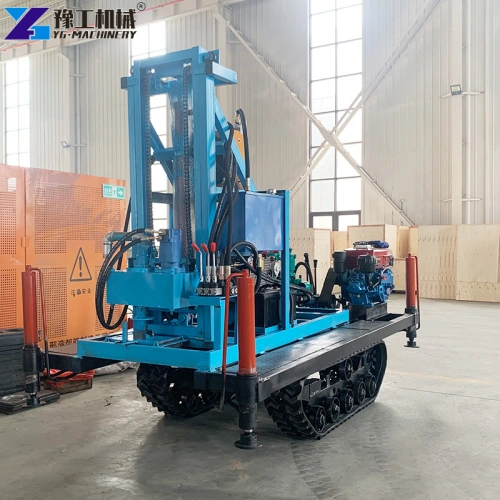

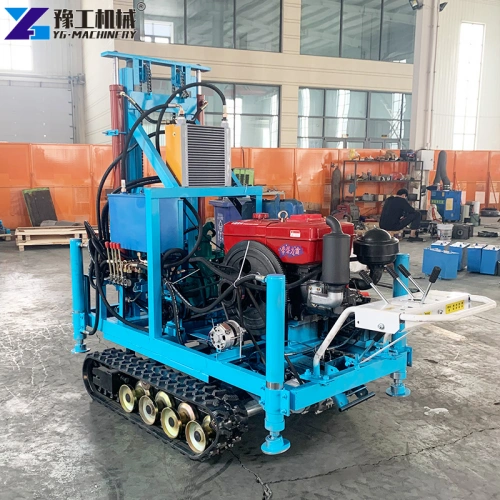

3. YG Tracked Diesel-Hydraulic Model (High-end, ideal for complex terrain)
Core Performance: Maximum drilling depth 200 meters, borehole diameter 100-300mm, equipped with a 30HP diesel engine, 8000N·m torque, 2000kg pullback force, fully hydraulic control, supports air down-the-hole hammer, 30% faster drilling speed in hard rock, capable of continuous high-intensity operation for 20 hours.
Dimensions and Accessories: Machine dimensions and weight vary depending on the specific model. Equipped with a steel tracked chassis; accessories vary by model, the following is for reference only (standard configuration includes main unit, 80-meter drill rod, 5 types of drill bits, mud pump, air compressor, wireless remote control, hydraulic leveling outriggers, toolbox, and after-sales maintenance kit).
Advantages: Extremely adaptable to terrain, anti-slip and anti-sinking, capable of handling mountainous and muddy terrain, powerful engine, capable of drilling into hard rock, stable continuous operation;
Disadvantages: Higher price, heavier machine, slightly higher relocation costs.
Suitable for: Professional drilling teams, mountain farm owners, and centralized water supply projects in remote areas, requiring long-term, high-intensity construction, handling complex terrain and hard rock formations, and prioritizing stability and efficiency.
Choose YG Manufacturer
The core principle when choosing a small water well drilling machine is “suitability”—don’t blindly pursue high-end models or simply look at the price of a borehole drilling machine. Consider your specific needs, geology, and budget to select the model with the best cost-performance ratio. As a professional drilling equipment manufacturer, YG offers mini borehole drilling machines for sale, covering various needs from home and farm to engineering projects, ranging from entry-level to high-end, with reliable performance and comprehensive service. Whether it’s an electric model for home use or a tracked model for professional construction, we can precisely match your needs, making well drilling more efficient and worry-free. If you still have questions about selection, please contact us directly; our professional team will tailor a suitable small water well drilling machine purchase plan for you.
