A 20ft container swimming pool is a fully factory-prefabricated compact aquatic unit built with welded Q235 steel frames, pre-equipped with complete water circulation, filtration and lighting systems to deliver instant small-scale swimming facilities for private villa backyards, tiny boutique homestays, rooftop leisure spaces and small resort guest amenity zones. The compact external dimensions of 5850×2200×1600 mm hold around 10 cubic meters of water, comfortably accommodating 3 to 4 swimmers at once, with full one-hour on-site installation after ground foundation preparation. Homeowners with limited backyard space constantly compare a space-saving 20-foot container pool to skip lengthy concrete pool construction cycles.
For homeowners with compact backyards, urban properties, and commercial operators looking for a small shipping container pool that delivers genuine swimming capability without the construction headaches, this is a practical, proven solution.
20Ft Container Swimming Pool Technical Specifications
| Item | Specification |
| Product Model | 20FT Container Pool |
| External Dimensions | 5850 × 2200 × 1600 mm |
| Internal Pool Size | 4400 × 1900 × 1350 mm |
| Water Capacity | ≈10 m³ |
| Swimming Capacity | 3-4 persons |
| Structure Type | Steel structure frame |
| Main Body Material | Q235B steel structure |
| Lining System | PVC pool liner |
| Anti-corrosion Treatment | Sandblasting + Jotun primer |
| Exterior Wall Finish | Corrugated steel plate coated with marine-grade anti-corrosion paint |
| Filtration System | Quartz sand filter |
| Circulating Water Pump | 1.0~1.5HP |
| LED Underwater Light | 2 units (standard configuration) |
| Glass Observation Window | 1 unit of 2400×900mm (standard configuration) |
| Pool Skimmer | Standard configuration |
| Water Return Outlet | Standard configuration |
| Drainage System | Standard configuration |
| Distribution Box | Standard configuration |
| Voltage | 220V |
| Stairs | Stainless steel stairs |
| Maintenance Access Door | Standard configuration |
| Transportation Method | Integral whole-unit transportation |
| Installation Time | Within 1 hour |
| Foundation Requirement | Concrete foundation |
| Service Life | 15-20 years |
20Ft Container Swimming Pool: 3 Available Installation Layout Modes
One core advantage of the 20ft container swimming pool lies in its three flexible installation layout options, each tailored to different landscape aesthetic demands and construction budget constraints, all compatible with the compact unit’s steel frame structure:

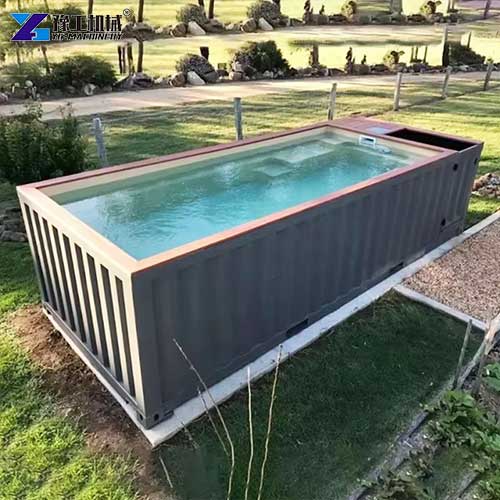

1. Above-ground installation
The simplest layout with the entire pool placed fully on a solid concrete or steel platform foundation. Construction work is minimal, and daily cleaning, liner inspection and equipment maintenance can be completed without excavation work. This mode is the top pick for rental properties, temporary event leisure zones and homeowners unwilling to carry out yard excavation.
2. Semi-buried installation
Partial excavation sinks half of the pool body below ground level, balancing natural integrated landscape visual effects and lower excavation construction costs compared to full burying. Most boutique homestays and suburban villa backyard projects select this layout to blend the pool into surrounding garden vegetation without overspending on ground digging work.
3. Fully buried installation
Complete excavation hides the entire pool body underground, achieving an appearance nearly identical to traditional permanent concrete swimming pools. The factory provides customized structural reinforcement design for fully buried deployment to counteract surrounding soil pressure, suitable for high-end private villa landscape projects pursuing a seamless natural garden aesthetic.
Customization and Optional Equipment
The YG 20ft container swimming pool supports extensive customization to meet specific project requirements.
- Heating System: Extends the swimming season in cooler climates. Multiple heating capacities are available for different climate conditions and pool sizes.
- Salt Chlorine Generator: Produces chlorine from salt added to the pool water, reducing the need for chemical sanitizers. This system is gentler on skin and eyes and requires less frequent chemical monitoring.
- Automatic Pool Cover: A motorized rolling cover that covers the pool when not in use. This reduces heat loss, keeps debris out, and improves safety.
- SPA Massage System: Adds 4 to 6 massage jets to the pool, providing hydrotherapy benefits. The jets provide targeted massage for muscle relaxation and therapy.
- Counter-Current Swimming System: Creates a current that allows swimmers to swim in place against the flow. This transforms the pool into an endless swimming machine, ideal for exercise and training.
- Water Quality Monitor: Continuously monitors pH, chlorine, and other water chemistry parameters. The monitor alerts the user when adjustments are needed, simplifying maintenance.
- Waterfall Feature: Adds a visual and acoustic water feature to the pool area, creating a resort-like atmosphere.
- Wood Plastic Composite Decking: External decking that provides a finished look and non-slip surface around the pool. Available in multiple colors and finishes.
- Dimensions: Length, width, depth, and glass window size can all be customized to fit specific site requirements.
- Exterior Color: The small shipping container pool can be painted any color according to customer requirements.
- Logo and Branding: Commercial customers can add company logos or branding to the pool exterior.
6 Advantages of 20Ft Container Swimming Pool
1. Ultra-short construction and deployment timeline: Concrete pools require weeks or months of on-site excavation, steel bar laying, concrete pouring and waterproof curing. This modular pool completes all welding, anti-corrosion treatment and equipment assembly inside the factory, arriving as a fully integrated unit that only needs one hour of on-site setup after foundation preparation for immediate water filling and use.
2. Fully predictable upfront total budget: The base unit price covers all structural steel parts, filtration systems, LED lights and stainless steel stair fittings; buyers only pay extra for optional add-ons they choose. Concrete pool construction frequently generates unplanned extra charges for labor, waterproofing repairs and construction delays that inflate total project costs.
3. Removable and reusable asset value: If a homeowner relocates or a homestay renovates its layout, the complete 20ft unit can be transported and reinstalled on a new foundation, retaining full resale asset value. Concrete pools are permanent fixed structures that cannot be moved and become a sunk cost once the property changes ownership.
4. Consistent factory-standardized quality control: Every steel frame undergoes standardized sandblasting and multi-layer anti-rust coating production lines under factory quality supervision. On-site concrete pool construction relies on inconsistent local construction crew workmanship, leading to uneven waterproofing and rust resistance over long-term use.
5. Compact footprint for limited-space sites: The narrow 5.85m total length fits small backyards, rooftop terraces and tiny resort leisure zones where large 30ft/40ft container pools or wide concrete pools cannot physically fit.
6. Simple daily maintenance workflow: The factory pre-installed closed-loop filtration system paired with optional water quality testers drastically cuts daily manual cleaning work compared to concrete pools with custom-built scattered piping systems.
Shipping Container Pool Price
If you are looking for a shipping container pool price that delivers value without compromising quality, the YG 20ft container swimming pool is a practical choice. Contact us with your project requirements—site conditions, intended use, and customization preferences. We will recommend the right configuration for your needs. Request a quote for your 20 foot container pool today.
