A vibratory tandem roller does one job: it compacts. Asphalt, gravel, soil—it turns loose material into a dense, load-bearing surface. Without proper compaction, roads crack, foundations settle, and pavements fail. With the right roller, one operator transforms a job site in hours.

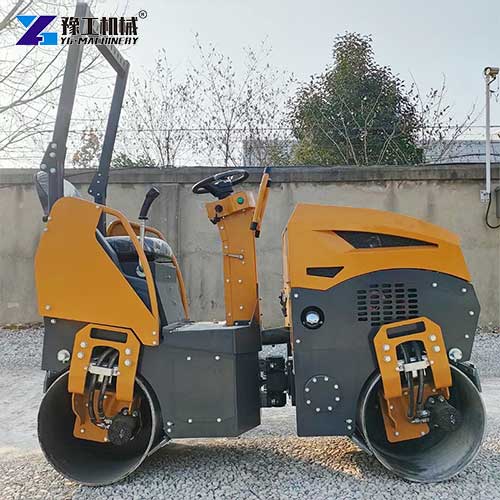

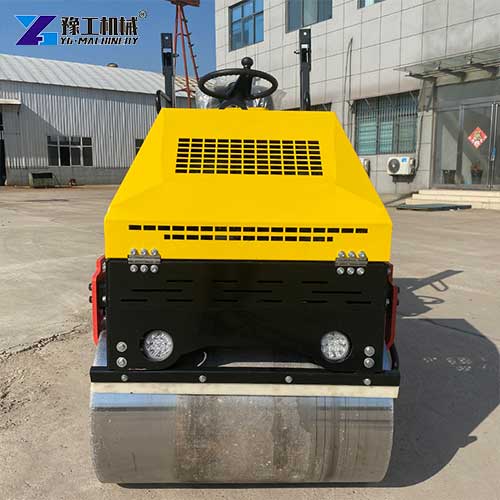

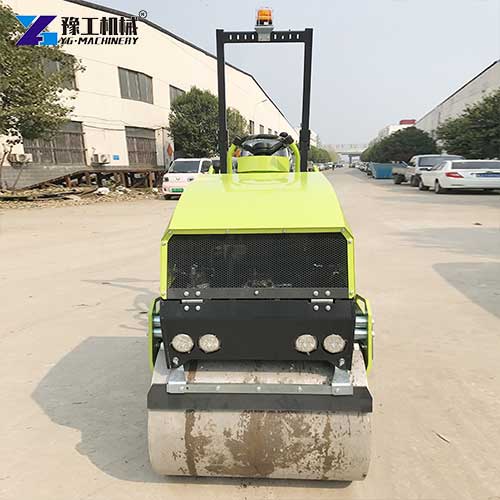

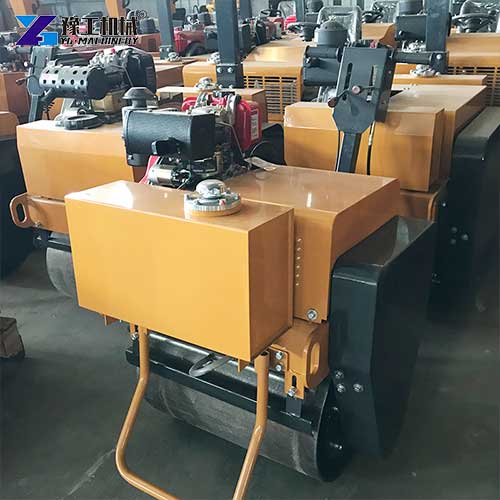

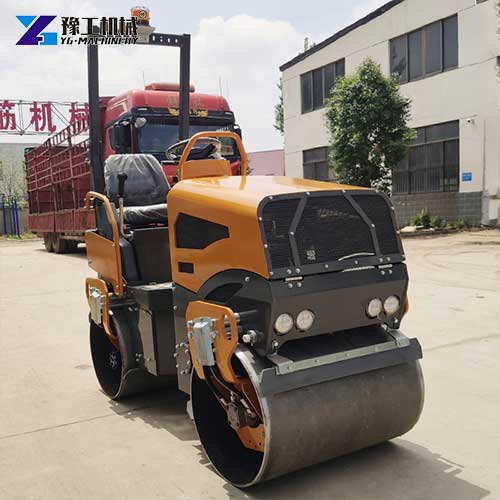

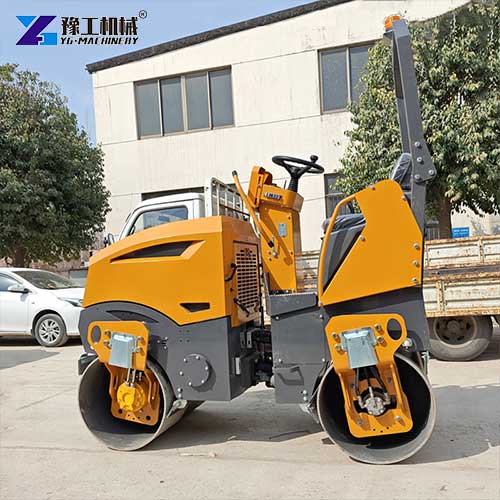

The YG series vibratory tandem roller offers four models: walk-behind YG-600S and YG-600D, and ride-on YG-850 and YG-880. Vibratory force ranges from 15KN to 50KN. Weight ranges from 330kg to 1000kg. For contractors looking for a road roller machine that fits tight spaces and delivers professional results, the YG series provides a clear choice for every job size.
Vibratory Tandem Roller Technical Specifications:
| Model | YG-600S | YG-600D | YG-850 | YG-880 |
| Type | Walk-behind | Walk-behind | Ride-on | Ride-on |
| Drum number | 1 | 2 | 2 | 2 |
| Engine power | 5.5Hp | 6.0Hp | 6.0Hp | 25Hp |
| Walking speed | 2.4km/h | 0-4km/h | 0-4km/h | 0-5km/h |
| Walking type | Two-side | Two-side | Two-side | Two-side |
| Drive Type | Hydraulic | Hydraulic | Diesel | Hydraulic |
| Drum size | 426*600 | 426*600 | 580*700 | 800*850 |
| Vibrate force | 15KN | 25KN | 35KN | 50KN |
| Climbing ability | 25% | 30% | 30% | 30% |
| Weight | 330kg | 550kg | 750kg | 1000kg |
6 Advantages of the YG Vibratory Tandem Roller
- Full-width compaction with dual drums: Front and rear steel drums work in unison to eliminate any central compaction gap. This reduces overlapping passes and delivers a consistently smooth, uniform surface across the entire working width.
- Selectable vibration force from 15 KN to 50 KN: The range covers everything from light patch repairs to heavy highway projects. All models run at a proven 70 Hz frequency, achieving target density quickly and with fewer passes.
- Full‑hydraulic stepless speed control: The hydraulic drive enables infinitely variable speed and ultra‑smooth directional changes, preventing surface damage to fresh asphalt. With climbing ability up to 30%, the machine maintains traction even on slopes.
- Walk‑behind and ride‑on configurations: Compact walk‑behind units excel in tight, confined spaces, while ride‑on models boost operator comfort and productivity on large‑scale jobs. One series covers both small and large project needs.
- Power precisely matched to machine weight: Engine output is carefully calibrated to each model’s weight and vibration demand, avoiding wasted fuel. The YG‑880, for instance, features a 25 hp engine that effortlessly drives its 50 KN excitation force.
- Compact drum width and two‑side operation: The narrow drum design and dual‑side walking capability allow operators to work close to curbs, walls, and obstacles. This dramatically improves efficiency in urban or confined job sites.
3 Factors That Determine Real-World Compaction Quality
Experienced operators know that excitation force numbers tell only part of the story. The following aspects separate a productive vibratory tandem roller from a frustrating one.
1. Drum Synchronization and Edge-to-Edge Uniformity
On a vibratory tandem roller, both drums vibrate in sync, ensuring that every point across the 600mm to 850mm drum width receives equal energy.
Single-drum machines cannot match this uniformity because the rear tires absorb and dissipate vibration, creating soft spots.
The YG-880’s synchronized system delivers 50KN of force evenly, so you achieve consistent density without overlap guessing.
2. Hydraulic Drive for Stepless Speed Control
All YG walk-behind vibratory asphalt rollers and the YG-880 use full hydraulic transmission, which provides infinitely variable speed adjustment.
This allows operators to slow down for thick base layers and speed up for thin surface courses without jerky gear changes.
Smooth reversing eliminates the jolts that can mar fresh asphalt—a critical advantage when working on hot mix.
Bidirectional travel means you can change direction without three-point turns, saving time in traffic-controlled zones.
3. Vibration Frequency and Amplitude Adjustability
The YG series road vibratory roller operates at a fixed 70Hz frequency, which is scientifically proven to be optimal for asphalt particle rearrangement.
However, the YG-880 allows operators to fine-tune the amplitude based on material type and layer thickness—thin overlays require lower amplitude, thick bases need higher.
The electromagnetic clutch engages vibration only when the drums are in contact with the material, reducing fuel consumption and wear.
Delivered to Russia: A Municipal Contractor’s Choice
Customer: A municipal road maintenance contractor in Russia responsible for asphalt patching and road surface repairs across a large region.
The Challenge: The contractor needed to repair and maintain roads across multiple sites. Access was tight in some areas, and the existing equipment was too large for narrow streets and confined work zones. The contractor needed compact, maneuverable rollers that could handle both asphalt patching and soil compaction efficiently
The Solution: The contractor chose a combination of YG-600D walk-behind double-drum rollers and YG-880 ride-on vibratory asphalt rollers. The YG-600D handled tight corners and small patches. The YG-880 delivered the higher compaction force needed for larger road repair sections
Customer Feedback: “We needed machines that could handle both tight spots and larger road sections. The YG-600D works in corners where nothing else fits. The YG-880 gives us the compaction power we need for proper road repairs. Both machines have been reliable through two seasons.”
Why the YG Vibratory Tandem Roller Fits Russian Road Conditions?
Russian road maintenance faces specific challenges: harsh winters cause freeze-thaw damage, short construction seasons demand fast work, and many roads are narrow with limited access. The YG road vibratory roller series addresses these challenges directly.
- Cold-weather reliability. The diesel and Honda engines start reliably in cold conditions. The hydraulic systems maintain consistent performance across temperature ranges.
- Compact for narrow streets. Many Russian towns have narrow streets where large rollers cannot operate. The YG road roller machine fits through standard gates and works in confined spaces
- Fast compaction for short seasons. Russian road work seasons are short. The YG series achieves required density in 2-4 passes, keeping projects moving.
- Versatile for asphalt and gravel. The YG series compacts both asphalt and gravel—essential for roads that need patching and base preparation.
Contact YG Machinery Today
Get a customized quote for your project requirements. Our team can help you select the right vibratory tandem roller model based on your specific application, whether you need a compact walk-behind unit for repair work or a powerful ride-on machine for major road construction.
