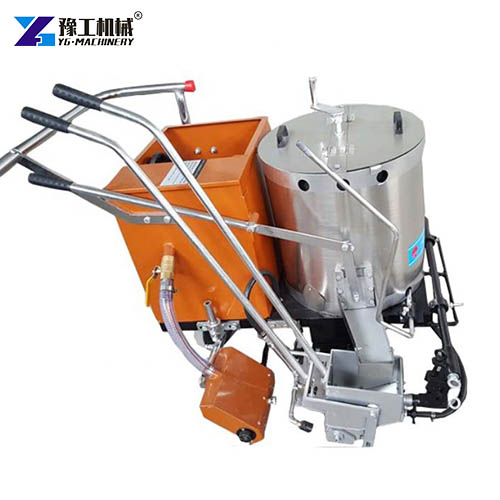

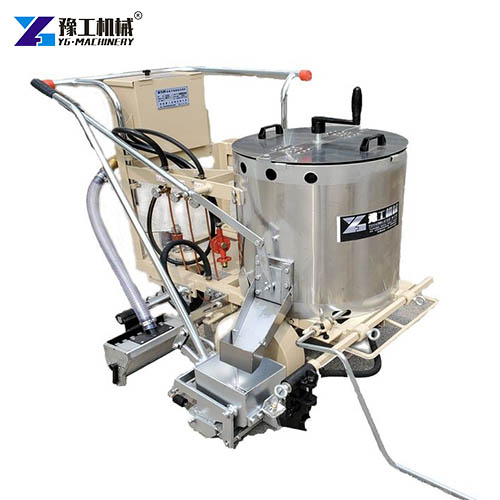

Road construction contractors and municipal maintenance teams often struggle to create clear, uniform pavement markings for parking lots and community roads. Manual marking work consumes extra labour and produces uneven lines, requiring repeated touch-ups after completion. paint line marking machine delivers stable marking performance for thermoplastic materials, helping crews finish long straight lines and curved markings with less manual adjustment on job sites.
Product Full Technical Specifications Of Paint Line Marking Machine
| Model | YG-CK360S | YG-CK380S |
| Thermoplastic Tank | Synchronous clutch spreading, equipped with a speed-adjustable gear shifting device; single/double spreading can be selected according to needs, 50- 200 mm | Synchronous clutch spreading, equipped with a speed-adjustable gear shifting device; single/double spreading can be selected according to needs, 50- 200 mm |
| Glass Bead Container | 10kg/box | 10kg/box |
| Adjustable glass bead spreader | Ensure the machine is moving in a straight line or turning freely on a curved road | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Rear Wheel Directional Device | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices | Ensure the machine moves in a straight line or turns freely on a curved road |
| Brake | Using a drum brake, you can adjust the brake tension | Using a drum brake, you can adjust the brake tension |
| Marking width | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) |
| Battery Capacity | 15AH | 15AH |
| Battery Voltage | 48V lithium battery | 48V lithium battery |
| Driver Speed | 1-8km/hour | 1-8km/hour |
| Working Duration | The machine can mark road lines for 24 hours after charging the battery; 5 hours | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Dimensions | 1210X970X1070mm | 1200X970X1100mm |
| Net weight | 130kg | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices |
Working Principle Of Thermoplastic Road Marking Machine

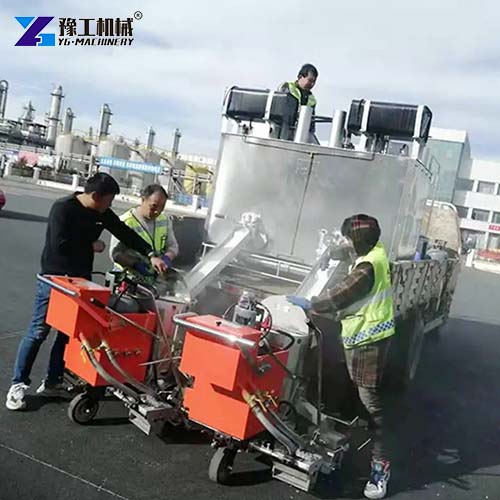

Dual stainless steel insulated melting barrels hold thermoplastic coating during operation. The pluggable manual mixer keeps materials at proper working temperature. As the machine moves forward, the clutch-controlled glass bead spreading system activates synchronously with machine travel. Rear wheel directional design supports linear movement and flexible turning for curved sections. Marking hoppers release melted coating onto pavement to form solid or dashed lines. Most municipal bidders evaluate core functions of line marking equipment before confirming procurement plans.
Core Product Features & Performance Advantages Of Line Marking Equipment
- Gradient Model Matrix For Multiple Pavement Projects: Main models YG-CK360S and YG-CK380S adopt 48V-15AH lithium battery power. Travel speed ranges from 1 to 8 km/h. Standard 150mm marking hopper supports interchangeable 100–450mm hoppers. The 10kg synchronous glass bead tank and adjustable tension drum brake suit municipal roads, parking lots, factory roads, and residential pavement marking tasks.
- Insulated Melting Barrels With Synchronous Glass Bead Spreading: Dual stainless steel insulated melting barrels with pluggable manual stirring maintain thermoplastic coating temperature. Clutch-type glass bead spreader starts and stops together with machine movement. Rear directional wheels produce smooth straight lines and natural curve transitions, reducing later repair work and lowering reliance on highly skilled operators.
- Hand-Push Compact Modular Frame: Lightweight body of paint line marking machine supports easy transportation between work zones. Lithium power produces no exhaust fumes at job sites. Modular quick-disassembly design allows separate removal of melting barrels, stirring assemblies, marking hoppers, and bead spreading units. Users swap hoppers quickly to create solid lines, dashed lines, and parking bay markings.
- Simple Control Layout for Fast Operator Training: The control panel integrates travel speed adjustment and bead spreading switches. General site workers can operate the machine independently after short training. Wear parts include marking hopper blades, spreading nozzles, and sealing gaskets. Component disassembly and coating residue cleaning take minimal time for frequent municipal maintenance contracts.
- B-Oriented Technical Support For Global Buyers: The team provides calculation references for marking width, daily construction area, and on-site power supply. Custom assemblies are available. Multiple overseas municipal marking project references are supplied, alongside multilingual operation manuals, remote technical guidance, priority supply of wearing spare parts, and complete export customs documents.
Main Industry Application Scenarios Of Paint Line Marking Machine
- Municipal road partial marking renewal and sidewalk marking jobs
- Parking bay line construction for commercial parking lots and factory yards
- Pavement marking for residential community internal roads
- Auxiliary marking works alongside major highway construction
- Small-scale traffic marking renovation for public infrastructure projects
Product Purchase & Selection Guidance Of Thermoplastic Road Marking Machine
- Confirm required marking width, daily construction volume, and on-site power supply before finalizing model selection.
- This paint line marking machine works exclusively with thermoplastic coating and cannot handle cold paint directly.
- Keep sufficient battery charge for remote job sites without mains power.
- Remove debris and standing water from pavement before marking; surface contamination weakens coating adhesion.
- Marking hopper blades, bead nozzles, and sealing gaskets are consumables and not covered under the main steel frame warranty.
- Strict temperature control for thermoplastic material is needed in low-temperature environments to avoid defective marking formation.
Many international procurement teams evaluate field adaptability of line marking equipment before signing equipment purchase contracts.
Frequently Asked Questions About Line Marking Equipment
A: This model is built for thermoplastic coating only. It cannot apply cold paint directly without separate dedicated cold spray equipment.
A: Clear away debris and standing water on the pavement surface. Contaminated ground reduces coating bonding strength.
A: Marking hopper blades, glass bead spreading nozzles, and sealing gaskets are wearing parts excluded from the main frame warranty.
A: Low ambient temperature affects thermoplastic coating formation. Operators must strictly control material temperature to prevent poor marking quality.
Manufacturer Supply & Inquiry Information
The YG factory provides pre-sales site condition evaluation, multilingual operation and maintenance manuals, full-load aging testing before shipment, seaworthy export packaging, and complete customs declaration documents for overseas purchasers. Remote online technical guidance and priority delivery of wear spare parts are available. Submit your target marking width, daily working area, and site power conditions for tailored equipment configuration recommendations.
